TRAIL HOOKS

TRAIL HOOK	TRACTOR TOW HOOK
WINCH HOOK	R HOOK
T HOOK	T SHANK HOOK
T-J HOOK	90º T-J Hook
MINI J HOOK	FALCATE HOOK
LONG FALCATE HOOK	GRAB HK WITH T HANDLE
WEBBING HOOK	SWIVEL J HOOK
MORE TRAIL HOOKS

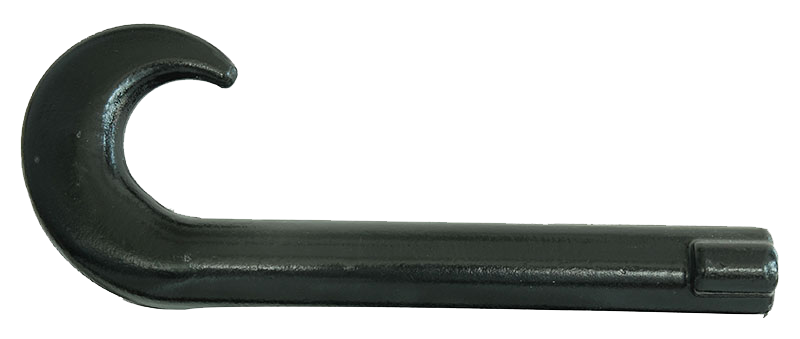

TRAILER HOOK

TRAILER HOOK
Stock No.	Size (in)	W.L.L. (lbs)	Inside Dia	Opening	Weight (lbs)
			Of Eye	Of Latch
			(in)	(in)
TRAILERHK34	3/4	7500	0.75	0.71	0.42

BACK TO TOP TRACTOR TOW HOOK

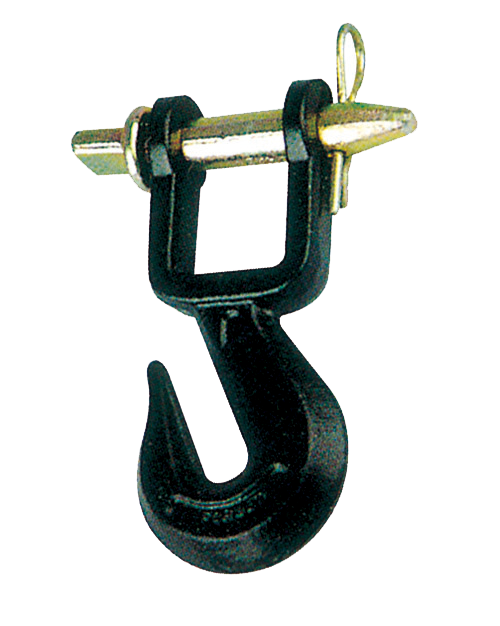

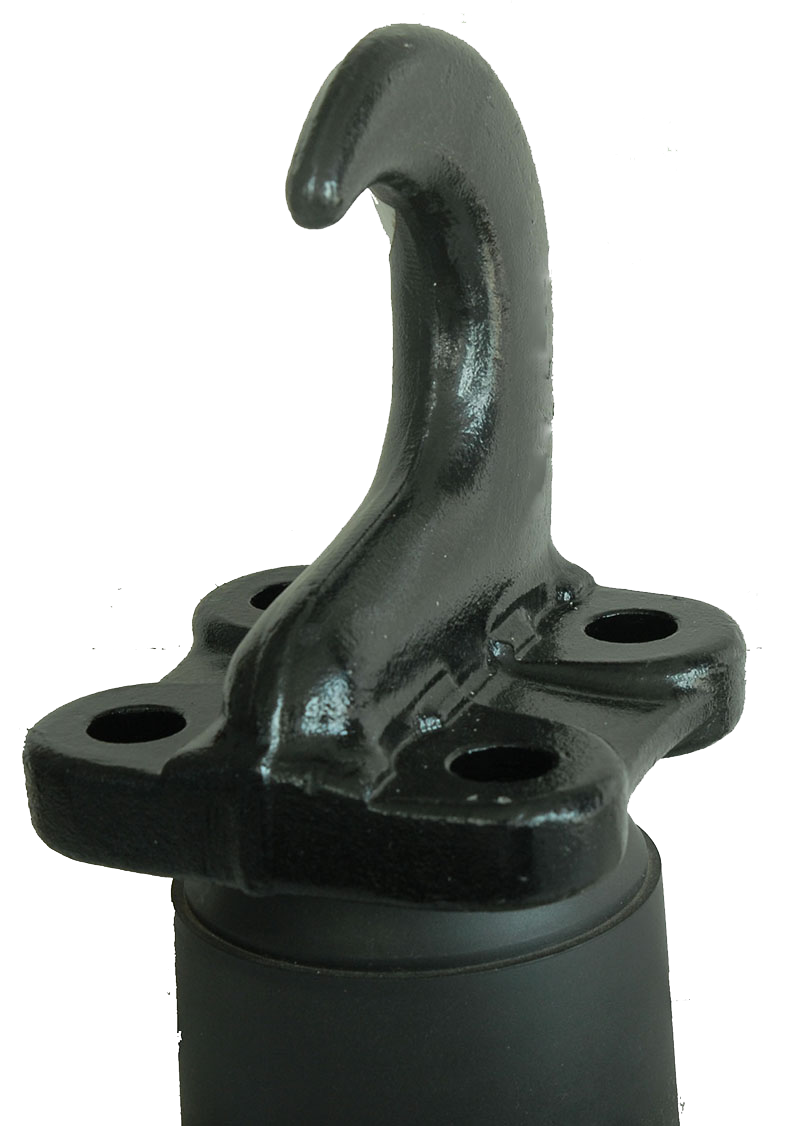

TRACTOR TOW HOOK
Stock No.	W.L.L.	Opening Of	Inside Length	Weight
		Hook	Of Top
	(lbs)	(mm)	(mm)	(lbs)
TRACTOWHK33	3300	12.7	38	1.63
TRACTOWHK92	9200	18	41	3.04

BACK TO TOP WINCH HOOK

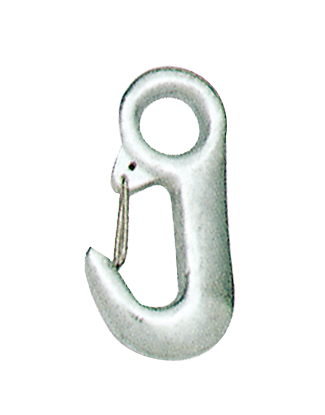

WINCH HOOK
Stock No.	Size	W.L.L.	Inside Dia	Opening	Weight
			Of Eye	Of Latch
	(in)	(lbs)	(in)	(in)	(lbs)
WINCHK58	5/8	6000	0.75	0.71	0.418

BACK TO TOP R HOOK

R Hook
Stock No	Size	M.B.S (lbs)		Weight
Stock No	(in)	Carbon	Alloy	(lbs)
RHK516	5/16	11700	18800	0.66

BACK TO TOP T HOOK

T Hook
Stock No	Size	M.B.S (lbs)		Weight
Stock No	(in)	Carbon	Alloy	(lbs)
THK516	5/16	15600	18800	0.57

BACK TO TOP T SHANK HOOK

T Shank Hook
Stock No	Size	Weight
Stock No	(in)	(lbs)
TSTRAHK516	5/16	0.48

BACK TO TOP T-J HOOK

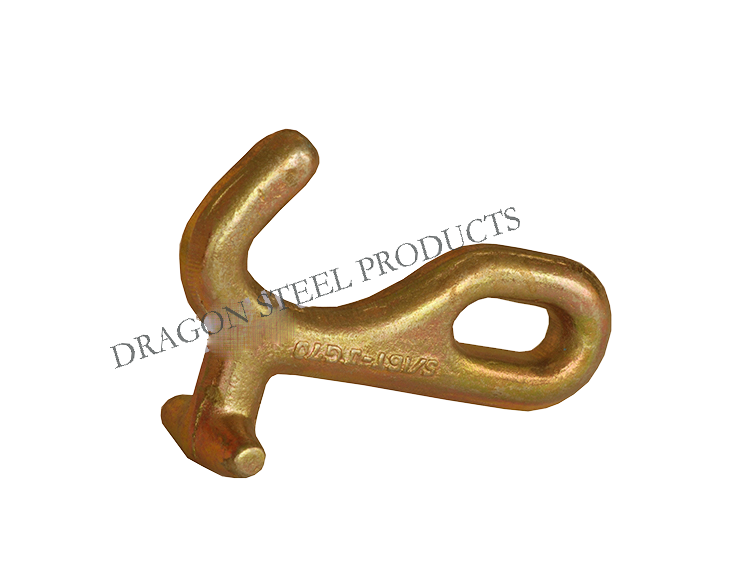

T-J Hook
Stock No	Size	M.B.S. (lbs)		Weight
Stock No	(in)	Carbon	Alloy	(lbs)
TJHK516	5/16	11700	15600	0.70

BACK TO TOP 90º T-J Hook

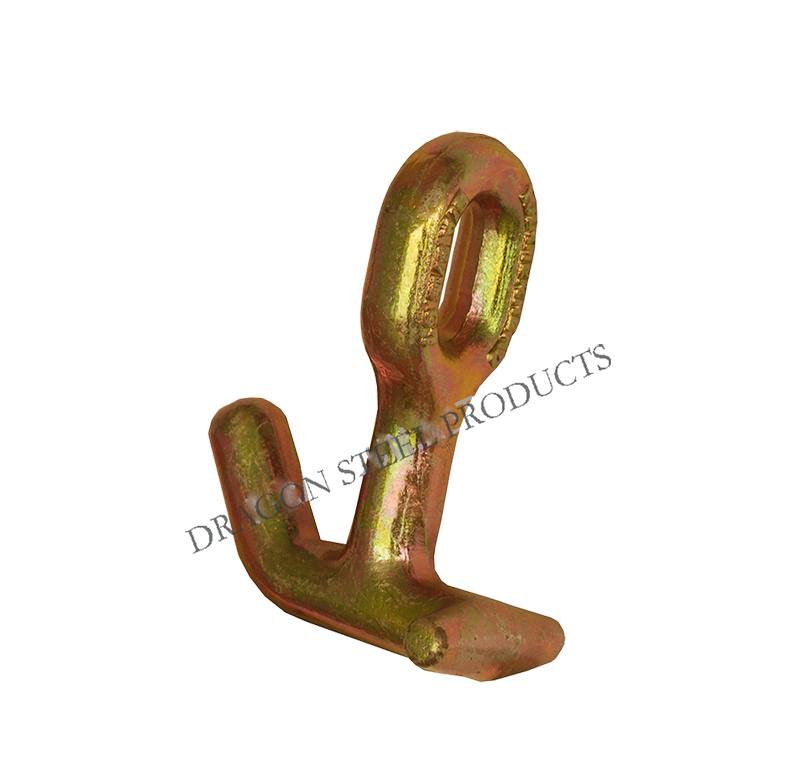

90º T-J Hook
Stock No	chain	M.B.S. (lbs)		Weight
	size	M.B.S. (lbs)		Weight
	(in)	T Part	J Part	(lbs)
TJHK516D90	5/16	15600	11200	0.77

BACK TO TOP MINI J HOOK

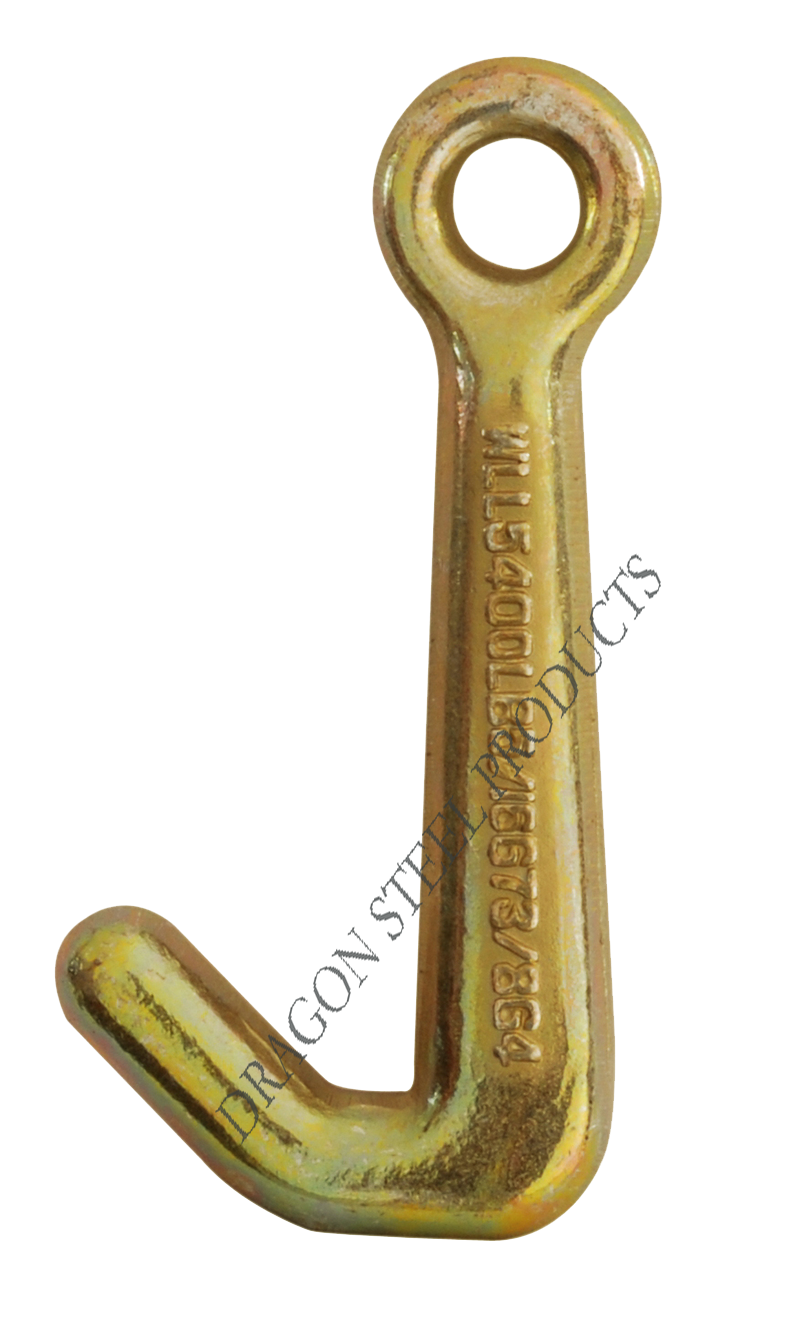

Mini J Hook
Stock No	Size	M.B.S.	Weight
Stock No	(in)	(lbs)	(lbs)
SMJHK51638	5/16-3/8	18800	0.7

BACK TO TOP FALCATE HOOK

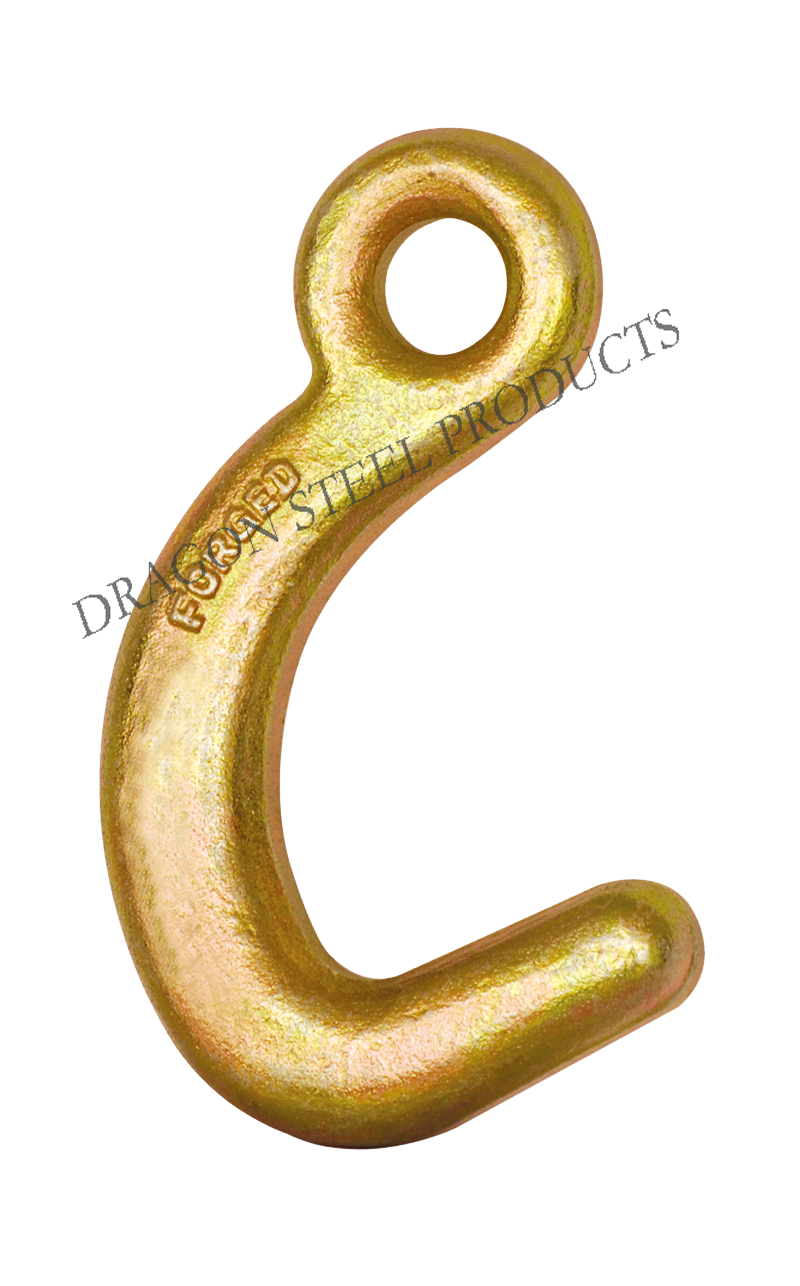

FALCATE HOOK
Stock No.	M.B.S.	Weight
Stock No.	(lbs)	(lbs)
FALH01	15600	0.55
FALH02	18800	0.66

BACK TO TOP LONG FALCATE HOOK

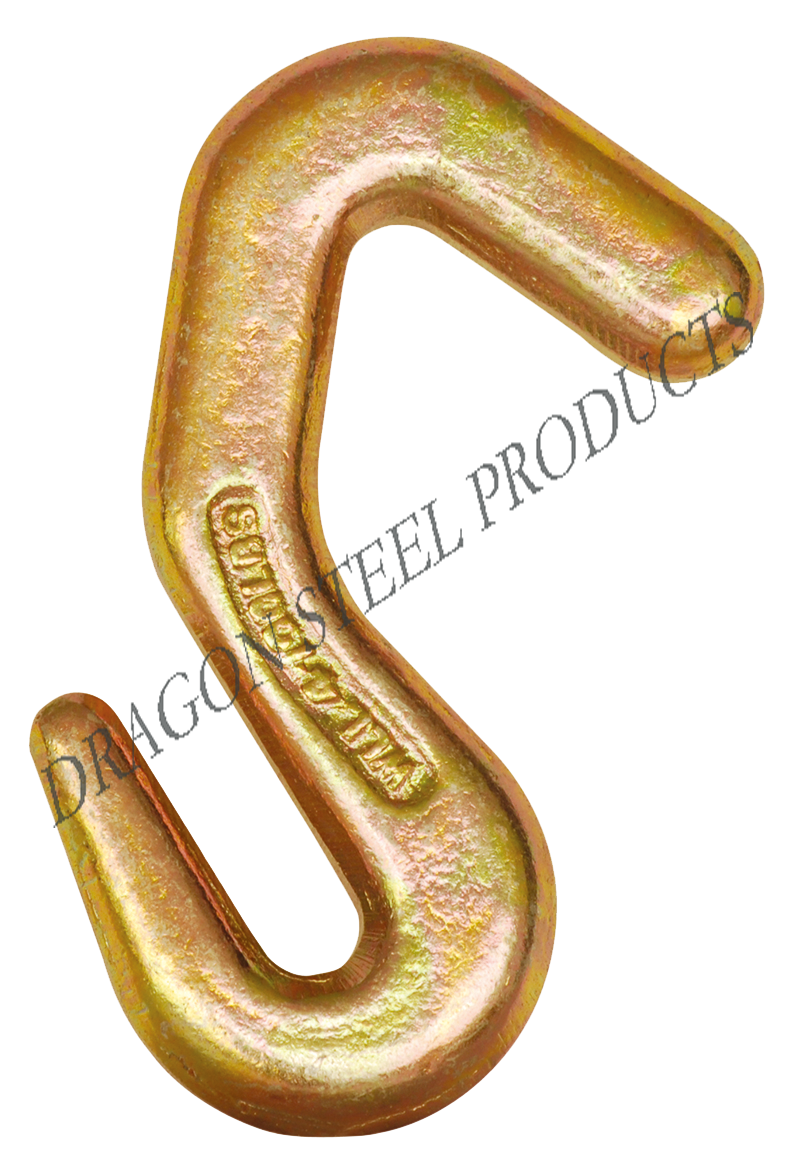

LONG FALCATE HOOK
Stock No.	M.B.S.	Weight
Stock No.	(lbs)	(lbs)
LFALH01	12600	0.7
LFALH02	15600	0.79
LFALH03	18800	1.00

BACK TO TOP GRAB HOOK WITH T TYPE HANDLE

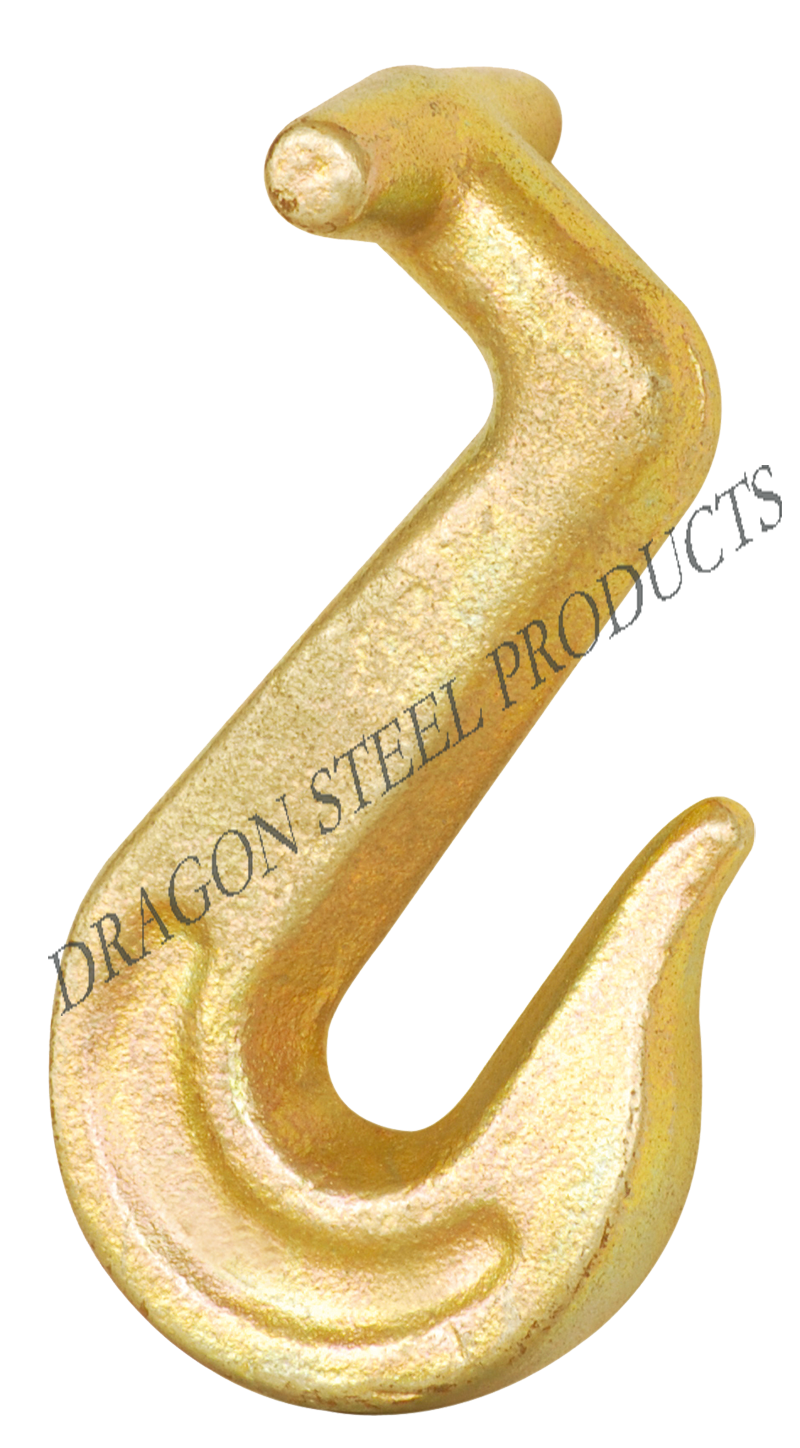

GRAB HOOK WITH T TYPE HANDLE
Stock No	Size	M.B.S.	Weight
Stock No	(in)	(lbs)	(lbs)
GHTH516	5/16	18800	0.79

BACK TO TOP WEBBING HOOK

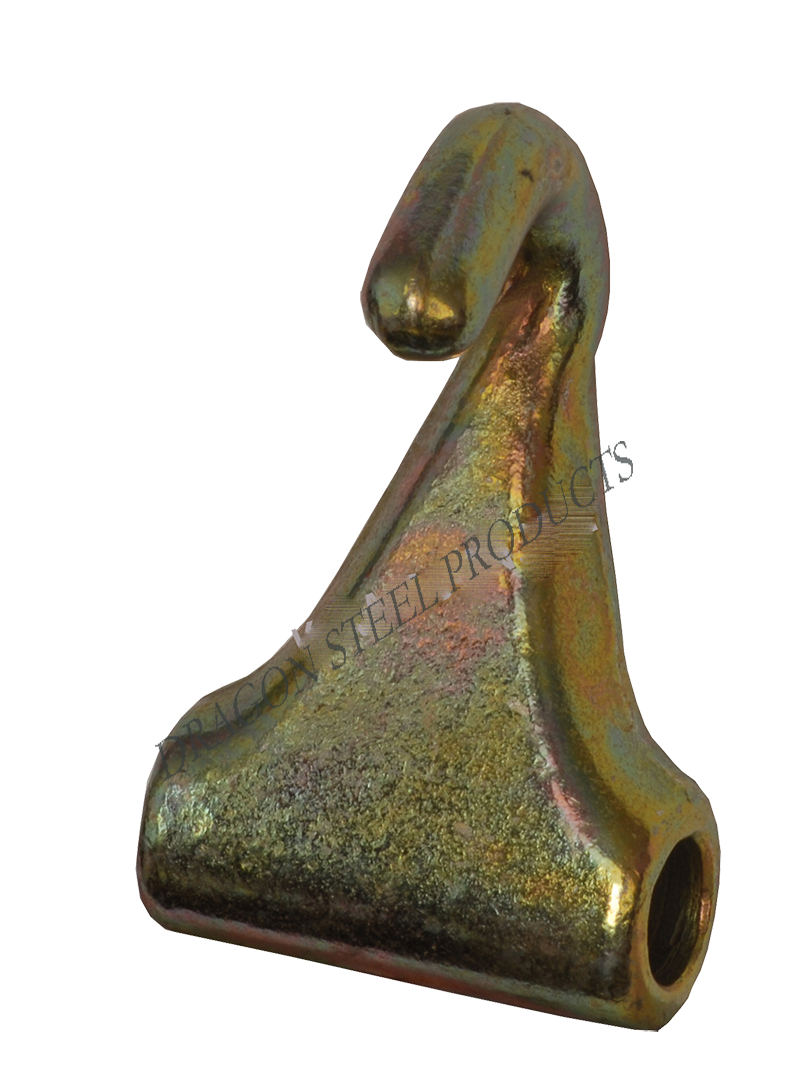

WEBBING HOOK

Stock No.WEBH01

Forged Alloy Steel

Quenched & Tempered

Ultimate Load is 7600 lbs

Weight: 0.72lbs

BACK TO TOP SWIVEL J HOOK

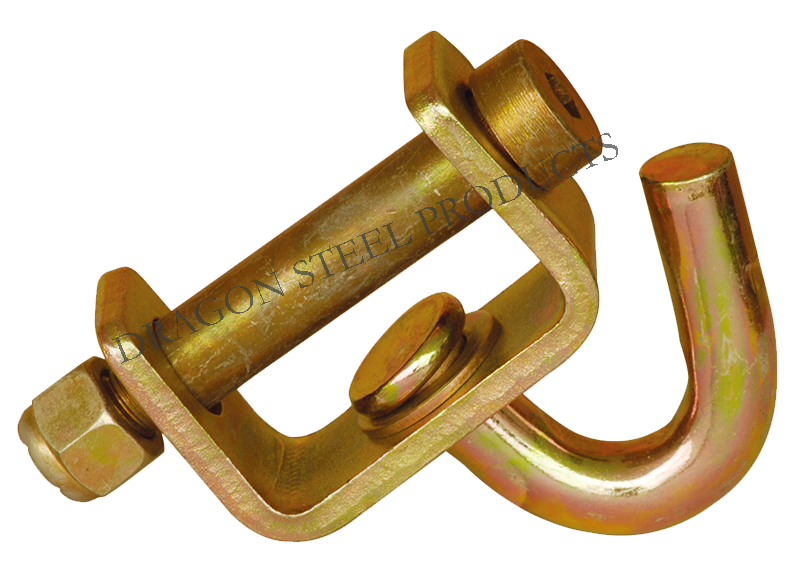

SWIVEL J HOOK

Stock No.SWJH01

Body Forged Alloy Steel

Ultimate Load is 9900 lbs

Weight: 1.15lbs

BACK TO TOP MORE TRAIL HOOKS

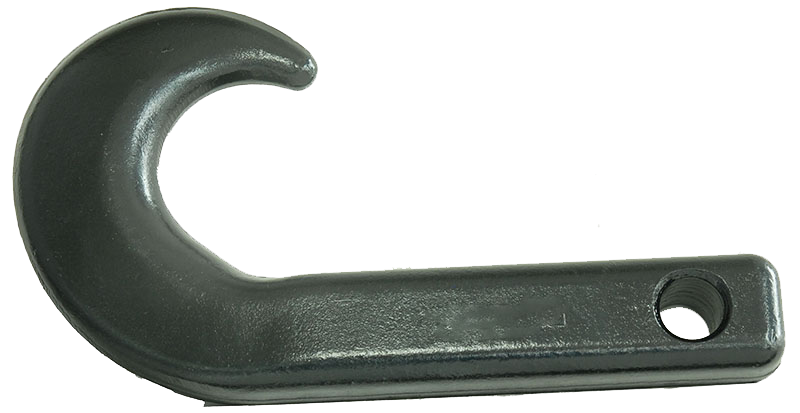

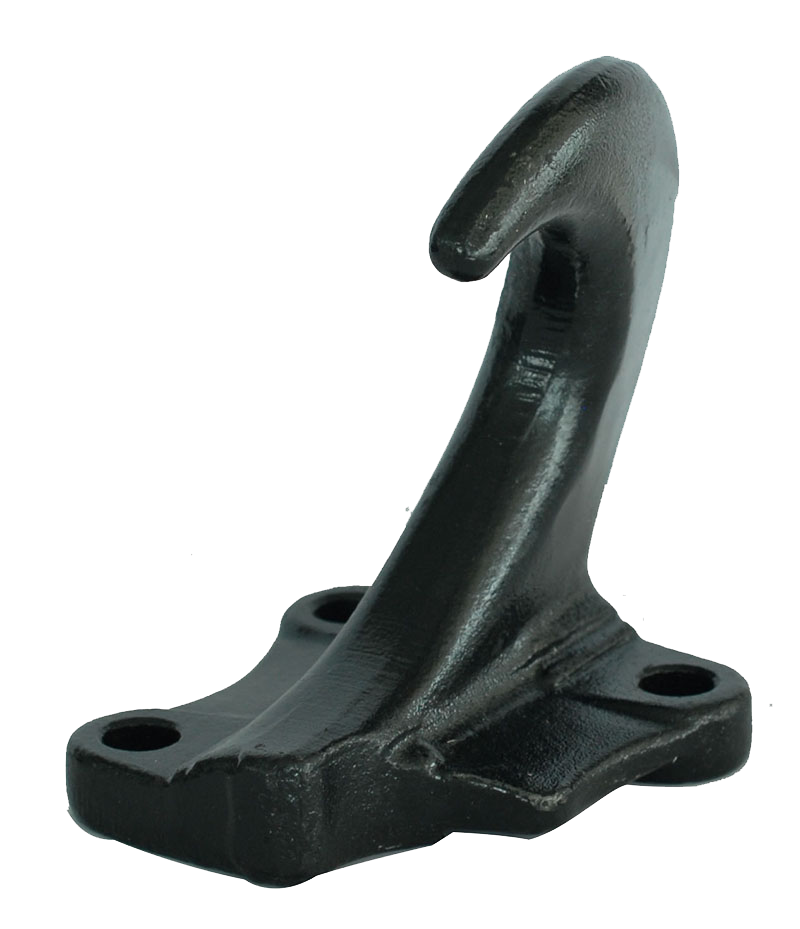

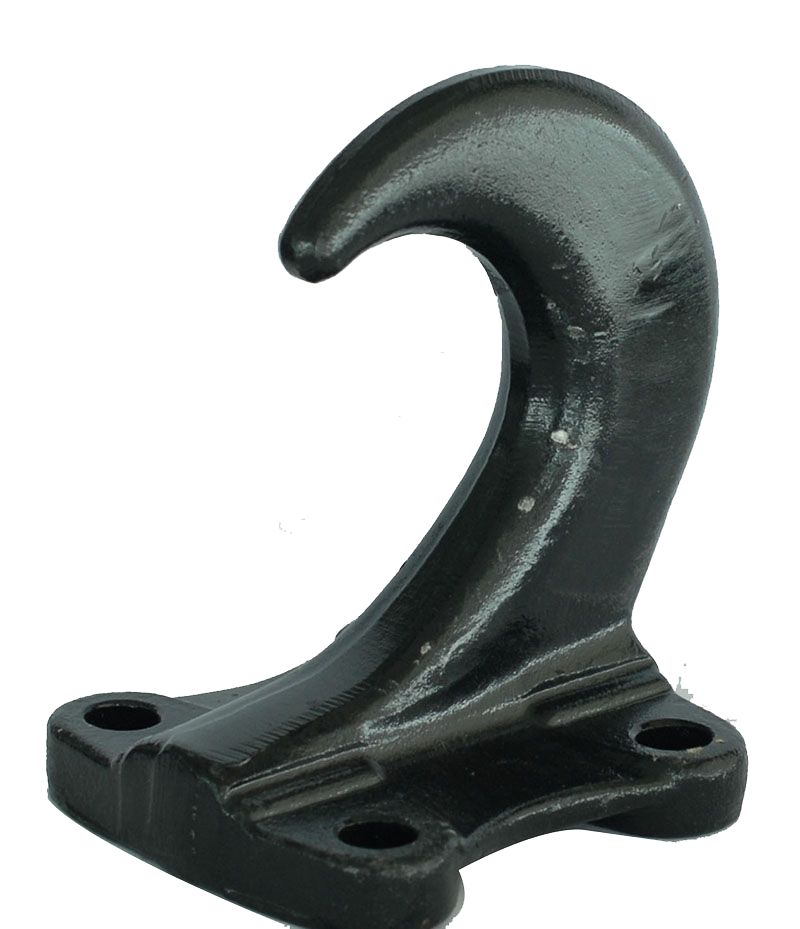

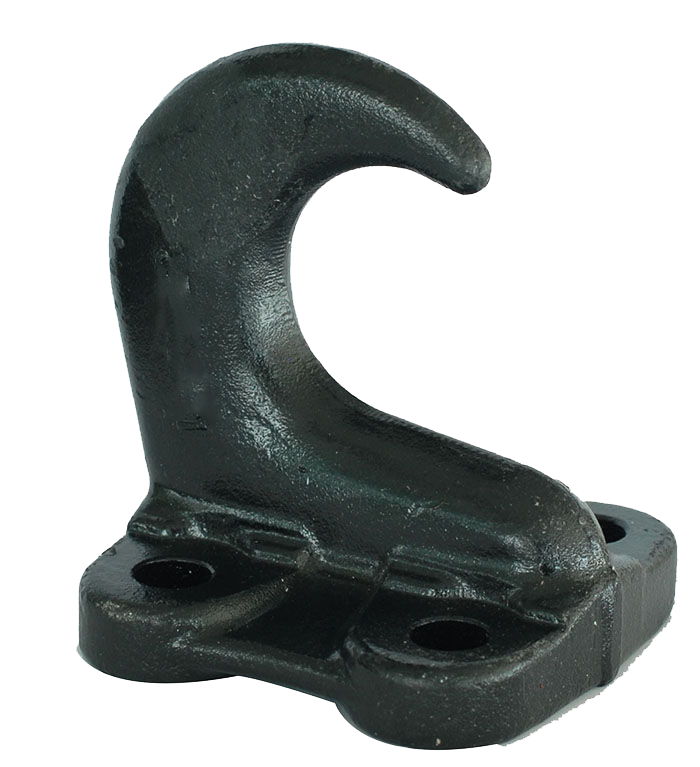

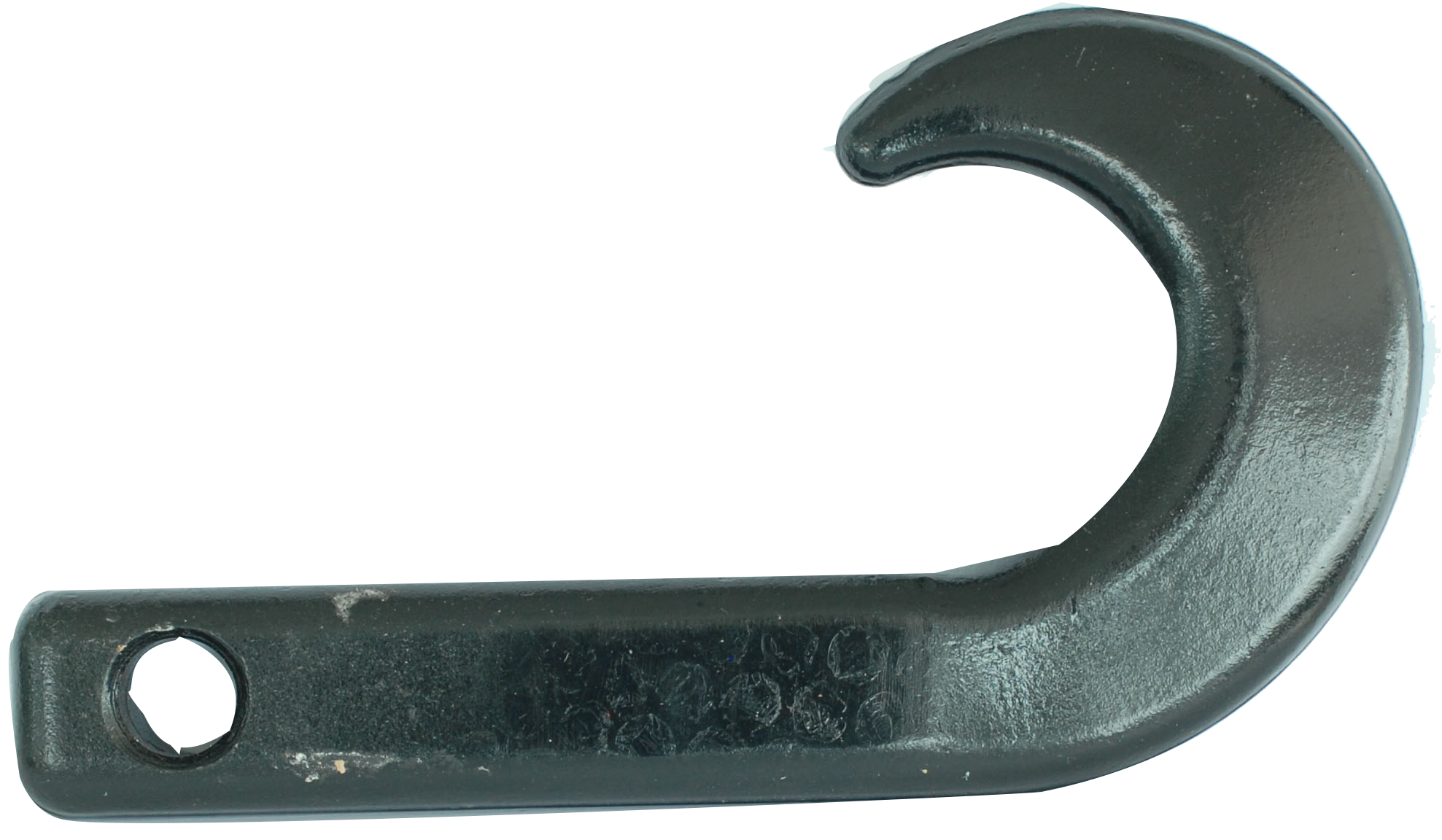

trail hook-10101	trail hook-10102	trail hook-10103	trail hook-10104

trail hook-10105	trail hook-10106	trail hook-10107	trail hook-10108
