DIFFERENT TYPE SNATCH BLOCKS IN FOLLOWING


LIGHT TYPE SNATCH BLOCK WITH HOOK
     LIGHT TYPE SNATCH BLOCK WITH HOOK
    Stock No Size (in) W.L.L (tons) Rope Dia (in) Weight (lbs)
    LTSB0300H 3 2   3/8 4.96
    LTSB0412H 4 1/2 4   1/2 12.33
    LTSB0600H 6 8   3/4 27.31
    LTSB0800H 8 8   3/4 36.34
    LTSB1000H 10 8   3/4 47.36
    LTSB1200H 12 8   3/4 57.27
    LTSB1400H 14 8   3/4 79.3
    LTSB1600H 16 15   7/8 123.35
    LTSB1800H 18 15 1      145.37

    BACK TO TOP
    LIGHT TYPE SNATCH BLOCK WITH SHACKLE
     LIGHT TYPE SNATCH BLOCK WITH SHACKLE
    Stock No Size (in) W.L.L (tons) Rope Dia (in) Weight (lbs)
    LTSB0300S 3 2   3/8 4.96
    LTSB0412S 4 1/2 4   1/2 12.33
    LTSB0600S 6 8   3/4 27.31
    LTSB0800S 8 8   3/4 36.34
    LTSB1000S 10 8   3/4 47.36
    LTSB1200S 12 8   3/4 57.27
    LTSB1400S 14 8   3/4 79.3
    LTSB1600S 16 15   7/8 123.35
    LTSB1800S 18 15 1      145.37

    BACK TO TOP

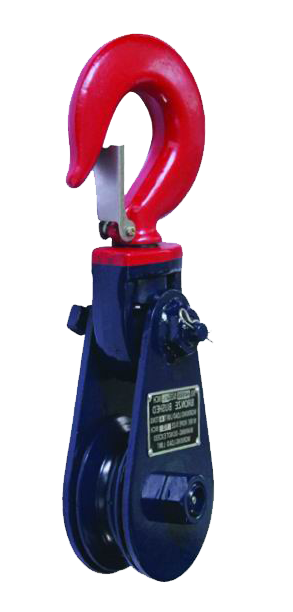

    HEAVY DUTY SNATCH BLOCK WITH HOOK
    HEAVY DUTY SNATCH BLOCK WITH HOOK
    Stock No Size (in) W.L.L (tons) Weight (lbs)
    HDSB0600H 6 12 41.85
    HDSB0800H 8 15 55
    HDSB1000H 10 15 63
    HDSB1200H 12 15 92.51
    HDSB1400H 14 15 147
    HDSB1600H 16 15 209
    HDSB1800H 18 20 275

    BACK TO TOP

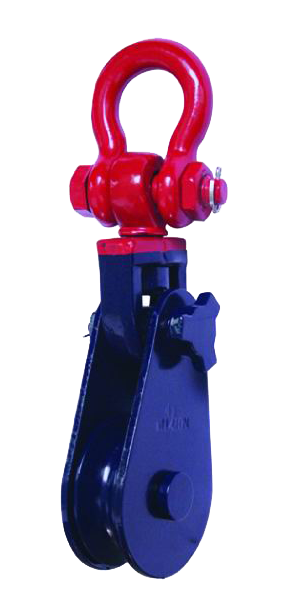

    HEAVY DUTY SNATCH BLOCK WITH SHACKLE
    HEAVY DUTEY SNATCH BLOCK WITH SHACKLE
    Stock No Size (in) W.L.L (tons) Weight (lbs)
    HDSB0600S 6 12 46.26
    HDSB0800S 8 15 61.67
    HDSB1000S 10 15 82.6
    HDSB1200S 12 15 101.32
    HDSB1400S 14 15 158.6
    HDSB1600S 16 15 222
    HDSB1800S 18 20 295

    BACK TO TOP
    SUPER TYPE SNATCH BLOCK WITH HOOK
    SUPER TYPE SNATCH BLOCK WITH HOOK
    Stock No Size (in) W.L.L (tons) Weight (lbs)
    STSB0800H 8 20 92.51
    STSB1000H 10 20 121.15
    STSB1000H 20 20 118.39
    STSB1400H 14 20 185
    STSB1800H 18 25 287.99
    STSB2000H 20 30 411.89

    BACK TO TOP
    SUPER TYPE SNATCH BLOCK WITH SHACKLE
    SUPER TYPE SNATCH BLOCK WITH SHACKLE
    Stock No Size (in) W.L.L (tons) Weight (lbs)
    STSB0800S 8 20 114.54
    STSB1000S 10 20 127.75
    STSB2000S 20 20 140
    STSB1400S 14 20 151.98
    STSB1800S 18 25 287.99
    STSB2000S 20 30 411.89

    BACK TO TOP

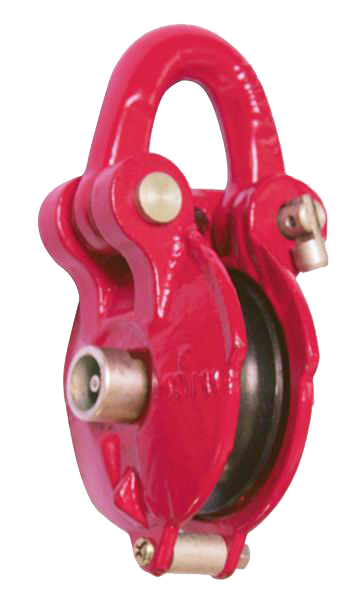

    YARDING BLOCK WITH SHACKLE
                    YARDING BLOCK WITH SHACKLE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (lbs) (mm) (lbs)
    SB03S 3 1.5 4-6 2.86
    SB04S 4 3 6-9 4.85
    SB05S 5 4.5 8-12 8.37
    SB06S 6 6 10-14 17.84
    SB08S 8 8 14-16 30.84
    ＊Ultimate load is 4 times working load limit

    BACK TO TOP

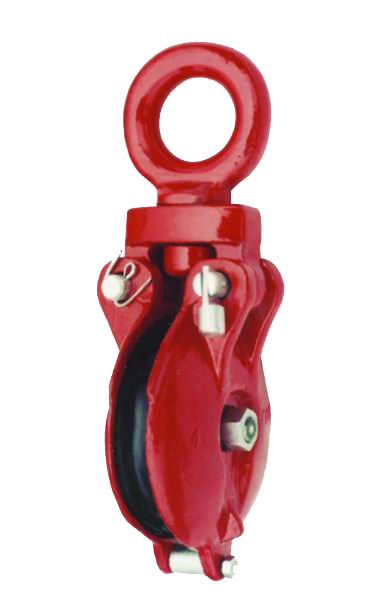

    YARDING BLOCK WITH EYE


    YARDING BLOCK WITH EYE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (lbs) (mm) (lbs)
    SB03E 3 1.5 4-6 3.52
    SB04E 4 3 6-9 6.04
    SB05E 5 4.5 8-12 9.91
    SB06E 6 6 10-14 19.6
    SB08E 8 8 14-16 33.04
    ＊Ultimate load is 4 times working load limit

    BACK TO TOP

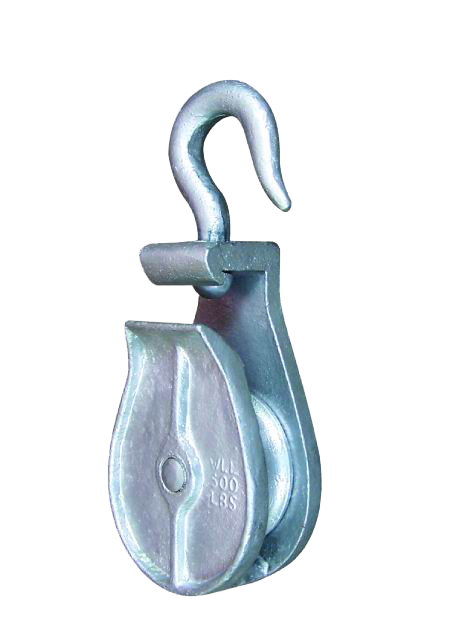

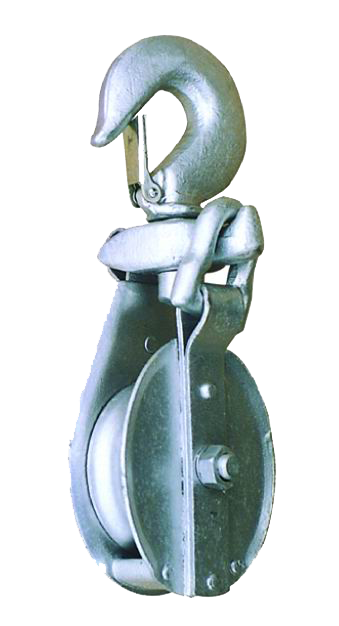

    GALV SNATCH BLOCK WITH HOOK FOR MANILA ROPE


     GALV SNATCH BLOCK WITH HOOK FOR MANILA ROPE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (lbs) (in) (lbs)
    GSB04H 4 1200 3/4 3.3
    GSB06H 6 2400 7/8 8.26
    GSB08H 8 4800 1 1/8 14.32
    GSB10H 10 6600 1 1/4 27.53
    GSB12H 12 9600 1 1/2 39.65

    BACK TO TOP

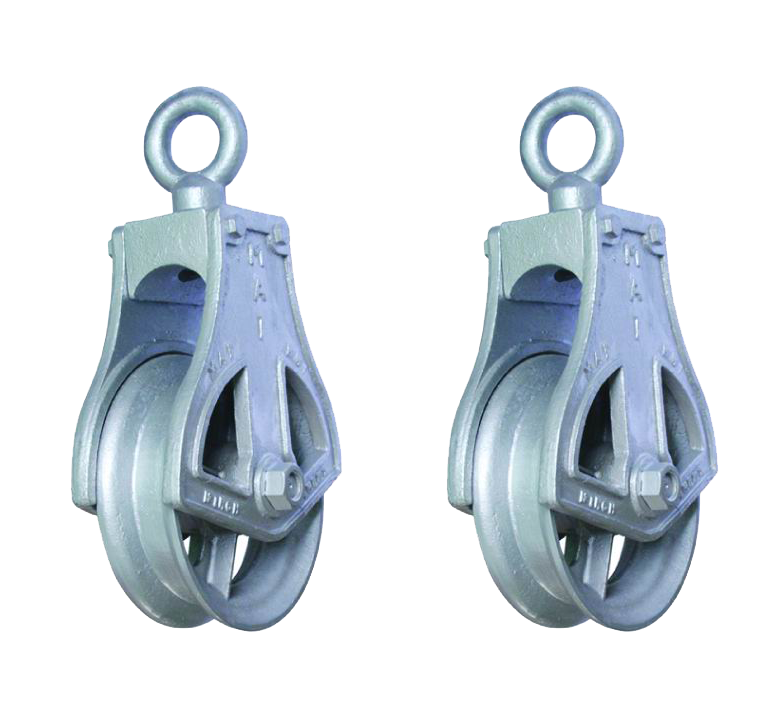

    GALV SNATCH BLOCK WITH EYE FOR MANILA ROPE


     GALV SNATCH BLOCK WITH EYE FOR MANILA ROPE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (lbs) (in) (lbs)
    GSB04E 4 1200 3/4 3.30
    GSB06E 6 2400 7/8 8.26
    GSB08E 8 4800 1 1/8 12.33
    GSB10E 10 6600 1 1/4 26.43
    GSB12E 12 9600 1 1/2 38.54

    BACK TO TOP

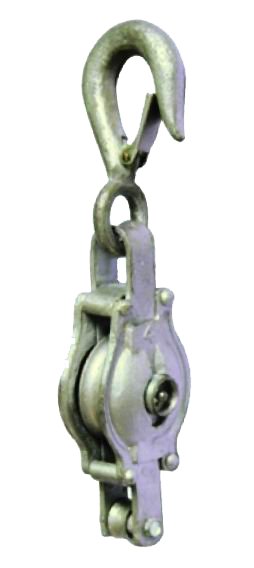

    HAY FORK PULLEY
    HAY FORK PULLEYS,ELECTRO GALVANIZED
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (lbs) (in) (lbs)
    HFP04M 4 1 1 1/4MR 6.38
    HFP04W 4 1 1/2WR 6.29
    HFP06M 6 2 1 1/2MR 14.63
    HFP06W 6 2 5/8WR 13.42
    ＊Ultimate load is 4 times working load limit

    BACK TO TOP
    TRAWL BLOCK
    TRAWL BLOCK,HOT DIP GALVANIZED
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (tons) (in) (lbs)
    TRB04 4 2 5/8 11.33
    TRB06 6 5 1 22.72
    TRB08 8 10 1 3/8 60.72
    TRB12 12 10 1 7/8 82.72
    TRB16 16 20 2 126.87
    TRB22 22 30 3 1/2 308
    ＊Ultimate load is 4 times working load limit

    BACK TO TOP
    TRY NET BLOCK
    TRY NET BLOCK,HOT DIP GALVANIZED
    Stock No. Sheave Dia W.L.L. Rope Dia Weight
    (in) (ton) (in) (lbs)
    TNB04 4 2 5/8 11.46
    TNB06 6 5 1 23.13
    TNB08 8 10 1 3/8 57.2
    ＊Ultimate load is 4 times working load limit

    BACK TO TOP
    RIGGING BLOCK
    RIGGING BLOCK
    Stock No. SIZE (in) W.L.L (tons) ROPE DIA (mm) WEIGHT (lbs)
    RIGGINGB02 2 0.25 8 0.88
    RIGGINGB03 3 0.75 12 2.20
    RIGGINGB04 4 1 14 3.79
    RIGGINGB05 5 1.5 16 7.05
    RIGGINGB06 6 2 19 12.11

    BACK TO TOP

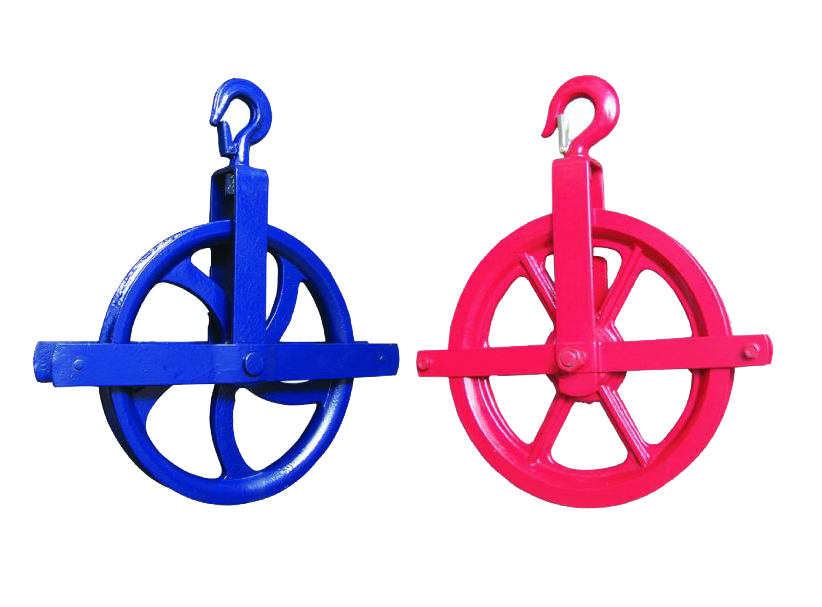

    ROOGING & GIN BLOCK


    ROOFING & GIN BLOCK
    Stock No. SIZE (in) W.L.L (lbs) ROPE DIA (mm) WEIGHT (lbs)
    GINB08 7/8 1000 7/8 9.91
    GINB10 1 1000 1 12.33
    GINB12 1 1000 1 15.86
    GINB14 1 1000 1 22.03

    BACK TO TOP

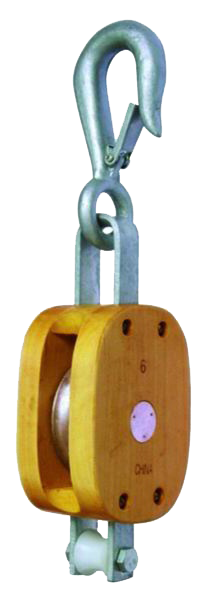

    WOOD BLOCK, SINGLE SHEAVE
    REGULAR WOOD BLOCK,SINGLE SHEAVE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight End Fitting
    (in) (lbs) (in) (lbs)
    RWB03HSS 3 500 3/8 0.99 HooK
    RWB03SSS 3 500 3/8 1 Shackle
    RWB04HSS 4 1000 1/2 1.76 HooK
    RWB04SSS 4 1000 1/2 1.81 Shackle
    RWB05HSS 5 1200 5/8 3.3 HooK
    RWB05SSS 5 1200 5/8 3.35 Shackle
    RWB06HSS 6 1800 3/4 5.02 HooK
    RWB06SSS 6 2000 3/4 5.51 Shackle
    RWB08HSS 8 2800 1 9.03 HooK
    RWB08SSS 8 3000 1 12 Shackle
    RWB10HSS 10 4000 1 1/8 15.97 HooK
    RWB10SSS 10 5000 1 1/8 23.02 Shackle
    RWB12HSS 12 5000 1 1/4 25.11 HooK
    RWB12SSS 12 6800 1 1/4 31.06 Shackle
    RWB14SSS 14 9600 1 3/4 52.86 Shackle
    RWB16SSS 16 12000 2 68.06 Shackle

    BACK TO TOP

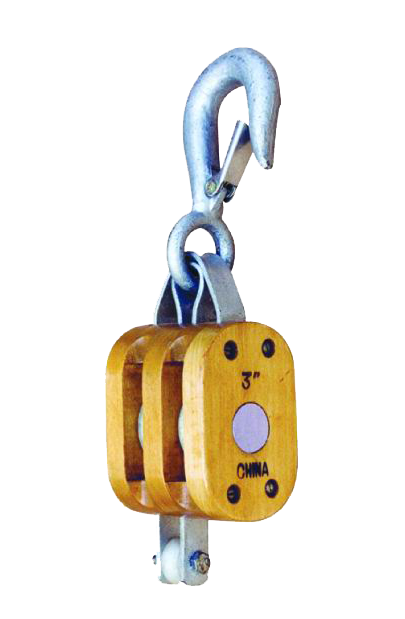

    WOOD BLOCK, DOUBLE SHEAVE


    REGULAR WOOD BLOCK,DOUBLE SHEAVE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight End Fitting
    (in) (lbs) (in) (lbs)
    RWB03HDS 3 800 3/8 1.76 HooK
    RWB03SDS 3 800 3/8 1.8 Shackle
    RWB04HDS 4 1400 1/2 2.99 HooK
    RWB04SDS 4 1400 1/2 3.06 Shackle
    RWB05HDS 5 1800 5/8 4.75 HooK
    RWB05SDS 5 1800 5/8 4.97 Shackle
    RWB06HDS 6 2500 3/4 8.49 HooK
    RWB06SDS 6 3300 3/4 8.7 Shackle
    RWB08HDS 8 3800 1 13.97 HooK
    RWB08SDS 8 5100 1 17.93 Shackle
    RWB10HDS 10 6000 1 1/8 23.98 HooK
    RWB10SDS 10 7700 1 1/8 33 Shackle
    RWB12HDS 12 8000 1 1/4 39.16 HooK
    RWB12SDS 12 10600 1 1/4 47.96 Shackle
    RWB14SDS 14 15000 1 3/4 79.86 Shackle
    RWB16SDS 16 19000 2 110 Shackle

    BACK TO TOP

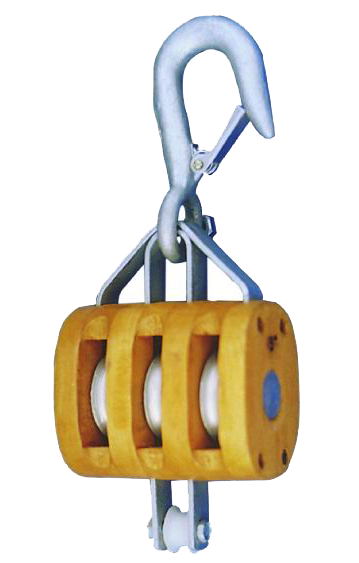

    WOOD BLOCK, TRIPLE SHEAVE
    REGULAR WOOD BLOCK,TRIPLE SHEAVE
    Stock No. Sheave Dia W.L.L. Rope Dia Weight End Fitting
    (in) (lbs) (in) (lbs)
    RWB03HTS 3 1200 3/8 3.13 HooK
    RWB03STS 3 1200 3/8 3.3 Shackle
    RWB04HTS 4 1800 1/2 5.25 HooK
    RWB04STS 4 1800 1/2 5.51 Shackle
    RWB05HTS 5 2400 5/8 6.19 HooK
    RWB05STS 5 2400 5/8 7.57 Shackle
    RWB06HTS 6 3200 3/4 13.22 HooK
    RWB06STS 6 3200 3/4 14.91 Shackle
    RWB08HTS 8 4800 1 20.19 HooK
    RWB08STS 8 4800 1 21.15 Shackle
    RWB10HTS 10 8000 1 1/8 32.43 HooK
    RWB10STS 10 8000 1 1/8 34.14 Shackle
    RWB12HTS 12 10000 1 1/4 52.32 HooK
    RWB12STS 12 10000 1 1/4 55.07 Shackle

    BACK TO TOP

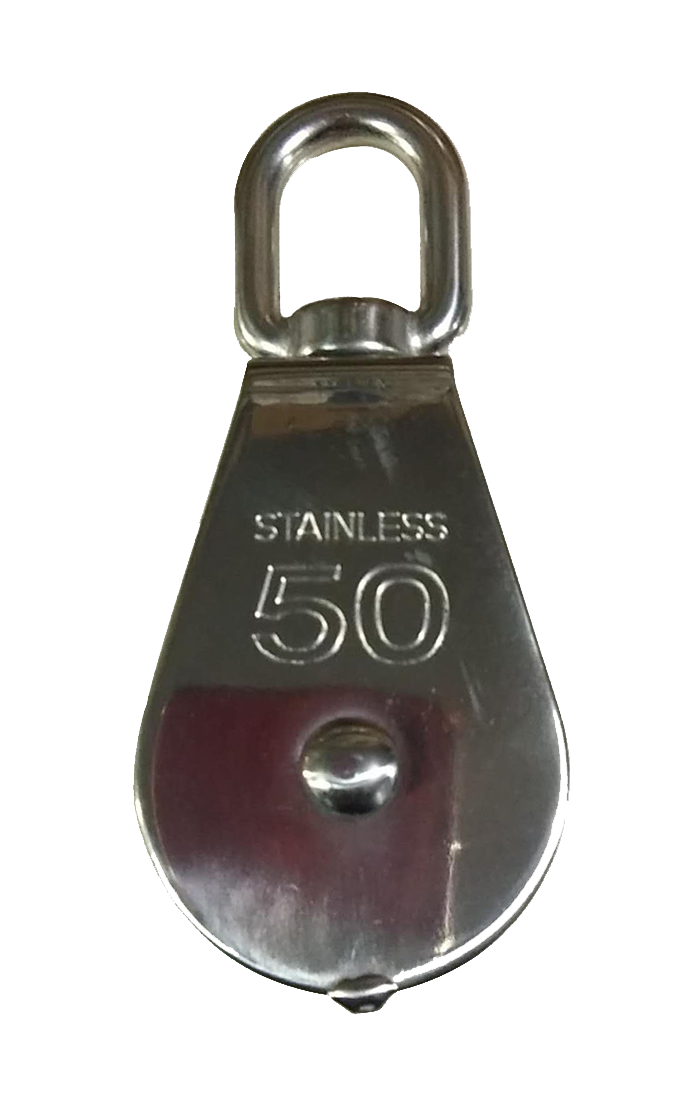

    STAINLESS STEEL BLOCK BLOCKS
    STAINLESS BLOCK, TYPE 313
    Stock No. Size Weight Sheave Fitting
    (mm) (lbs)
    SSBLOCK313-0050 50 0.89 Single Sheave
    SSBLOCK313-0075 75 1.93 Single Sheave
    SSBLOCK313-0100 100 3.56 Single Sheave
    SSBLOCK313-100W 100W 3.75 Single Sheave

    STAINLESS BLOCK, TYPE 314
    Stock No. Size Weight Sheave Fitting
    (mm) (lbs)
    SSBLOCK314-0025 25 0.28 Single Sheave
    SSBLOCK314-0032 32 0.4 Single Sheave
    SSBLOCK314-0050 50 0.83 Single Sheave

    STAINLESS BLOCK, TYPE 315
    Stock No. Size Weight Sheave Fitting
    (mm) (lbs)
    SSBLOCK314-0025 25 0.43 Double Sheave
    SSBLOCK314-0032 32 0.63 Double Sheave
    SSBLOCK314-0050 50 1.28 Double Sheave

    BACK TO TOP
    MORE BLOCKS


    MORE BLOCKS
    BLOCK10101 BLOCK10102 BLOCK10103 BLOCK10104 BLOCK10105 BLOCK10106
