DRAGON STEEL PRODUCTS





Improved Plow Steel(IPS) FCExtra Improved Plow Steel(EIPS) FC

Specification:  RR-W-410G

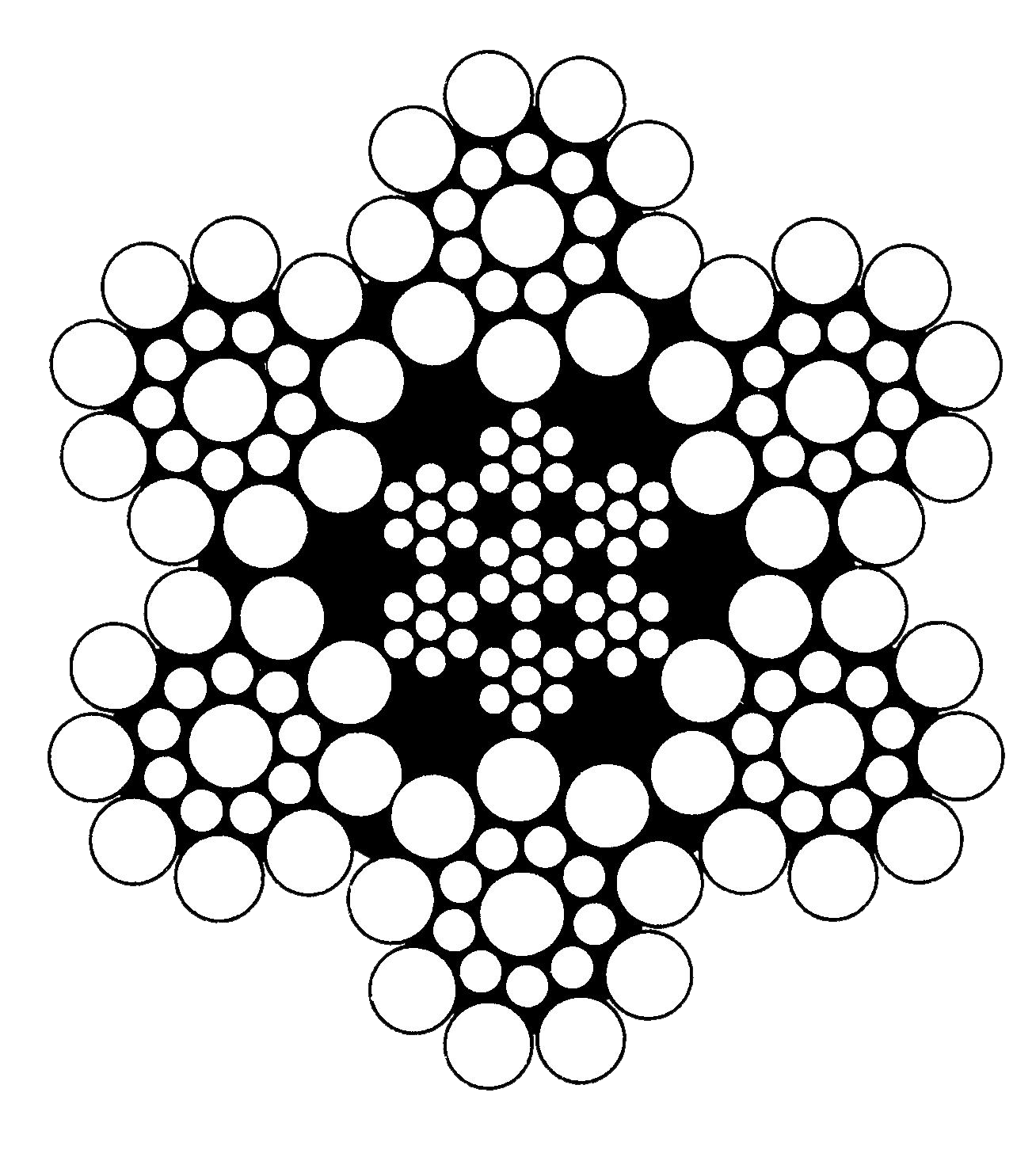

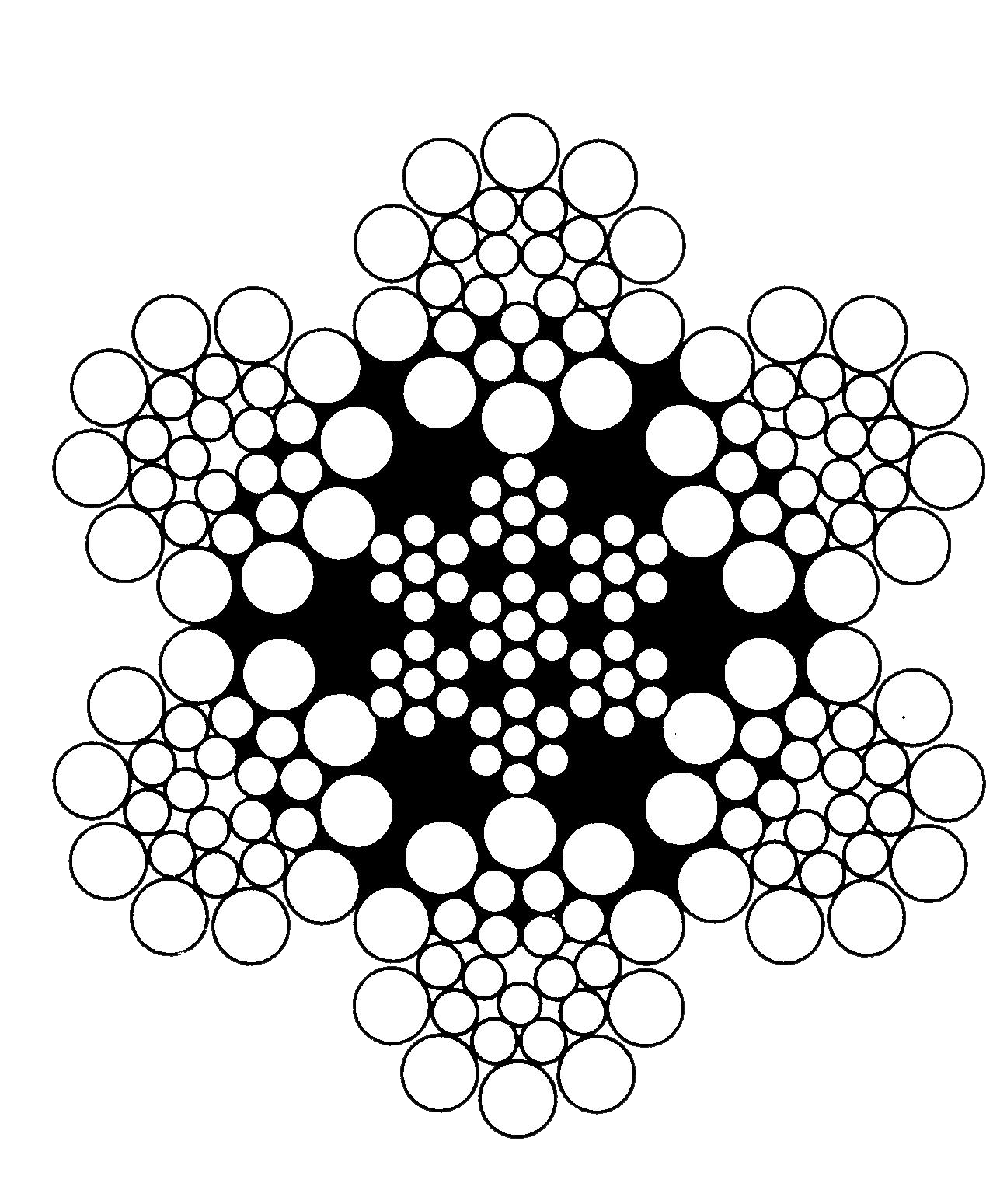

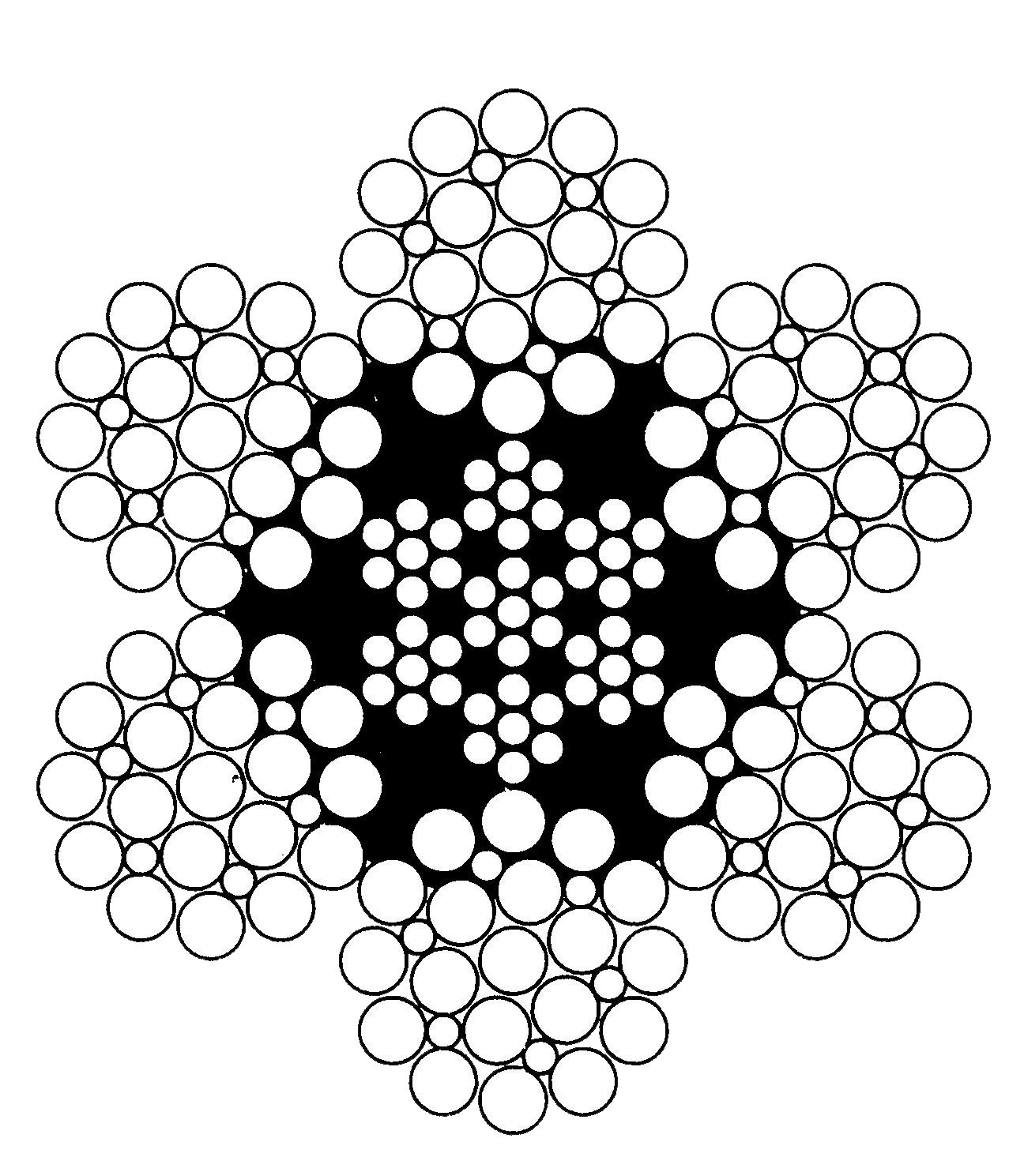

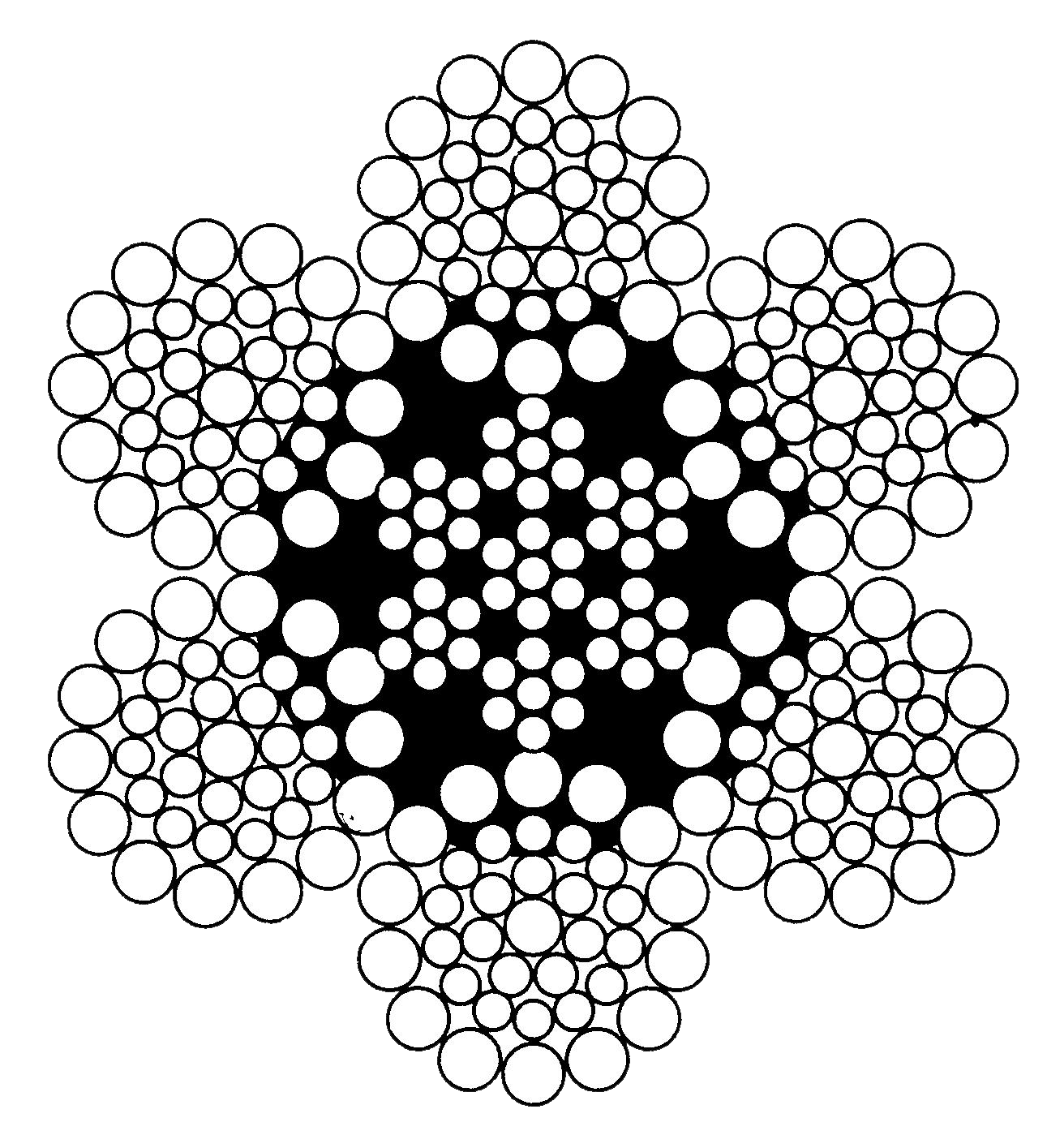

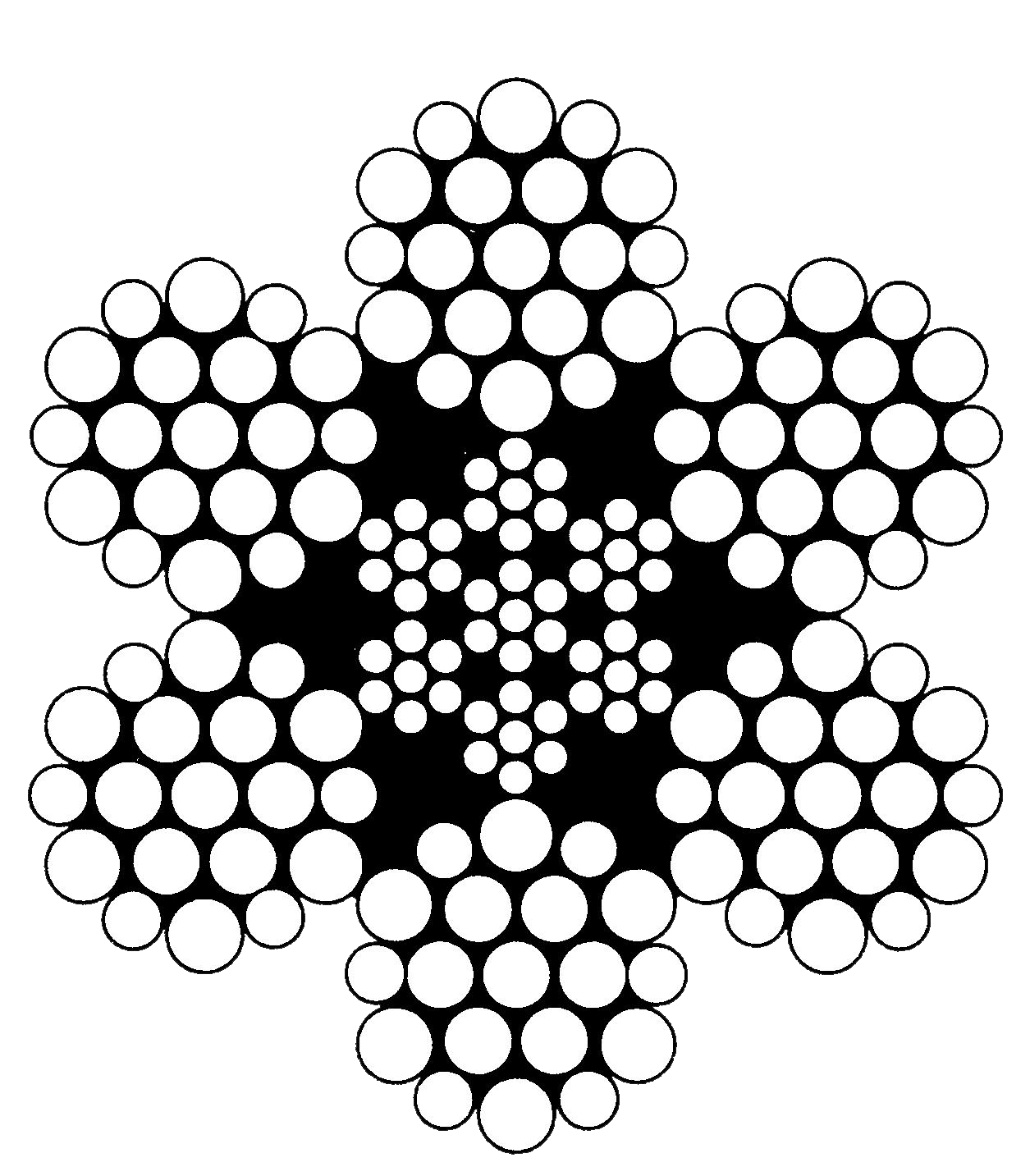

6x25(Fi) IWRC,  6x26(WS) IWRC,  6x19(S) IWRC,  6x19(W) IWRC, 6x36(WS) IWRC
Improved Plow Steel (IPS)
Nominal Min. Breaking Strength Unit Weight
Diameter Ungalv Galvanized
inch lb lb lb/1000' kg/1000'
1/4" 5,880 5,300 117 53
5/16" 9,160 8,240 183 83.1
3/8" 13,120 11,800 260 118
7/16" 17,780 16,000 347 157
1/2" 23,000 20,700 454 206
9/16" 29,000 26,100 573 260
5/8" 35,800 32,200 710 322
3/4" 51,200 46,000 1,021 463
7/8" 69,200 62,200 1,389 630
1" 89,800 80,800 1,814 823
1-1/8" 113,000 101,800 2,295 1,041
1-1/4" 138,000 125,000 2,833 1,285
1-3/8" 167,000 150,400 3,430 1,556
1-1/2" 197,000 178,000 4,080 1,851

Specification:  RR-W-410G
6x25(Fi) IWRC,  6x26(WS) IWRC,  6x19(S) IWRC,  6x19(W) IWRC, 6x36(WS) IWRC
Extra Improved  Plow  Steel (EIPS)
Nominal Min. Breaking Strength Unit Weight
Diameter Ungalv. Galvanized
inch lb lb lb/1000' kg/1000'
1/4" 6,800 6,120 106 48.2
5/16" 10,540 9,480 183 83.1
3/8" 15,100 13,600 260 118
7/16" 20,400 18,360 347 157
1/2" 26,600 24,000 454 206
9/16" 33,600 30,200 573 260
5/8" 41,200 37,000 710 322
3/4" 58,800 53,000 1,021 463
7/8" 79,600 71,600 1,389 630
1" 103,400 93,000 1,814 823
1-1/8" 130,000 117,000 2,295 1,041
1-1/4" 159,800 143,800 2,833 1,285
1-3/8" 192,000 172,800 3,430 1,556
1-1/2" 228,000 206,000 4,080 1,851


BACK TO TOP
Specification:  RR-W-410G

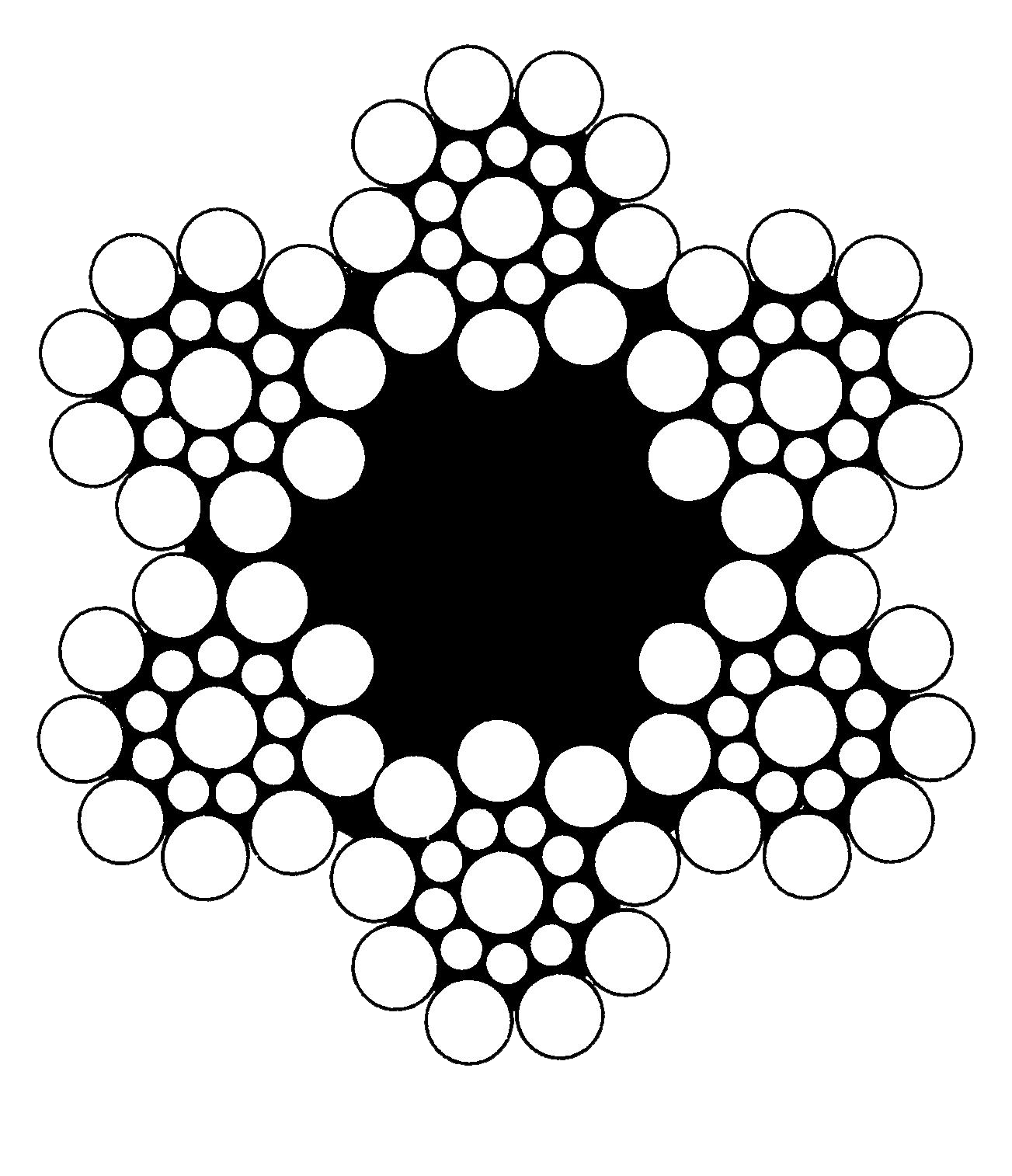

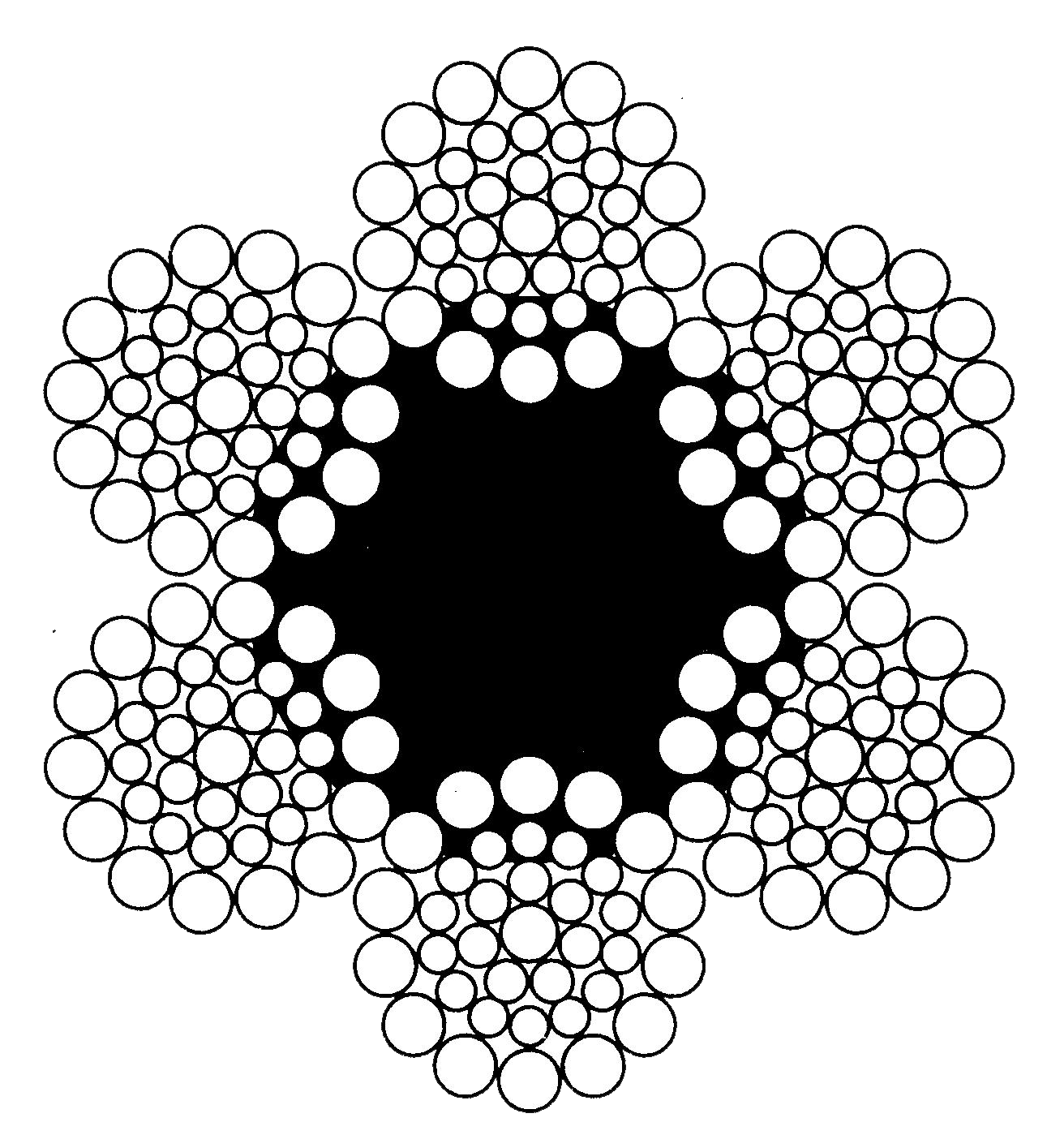

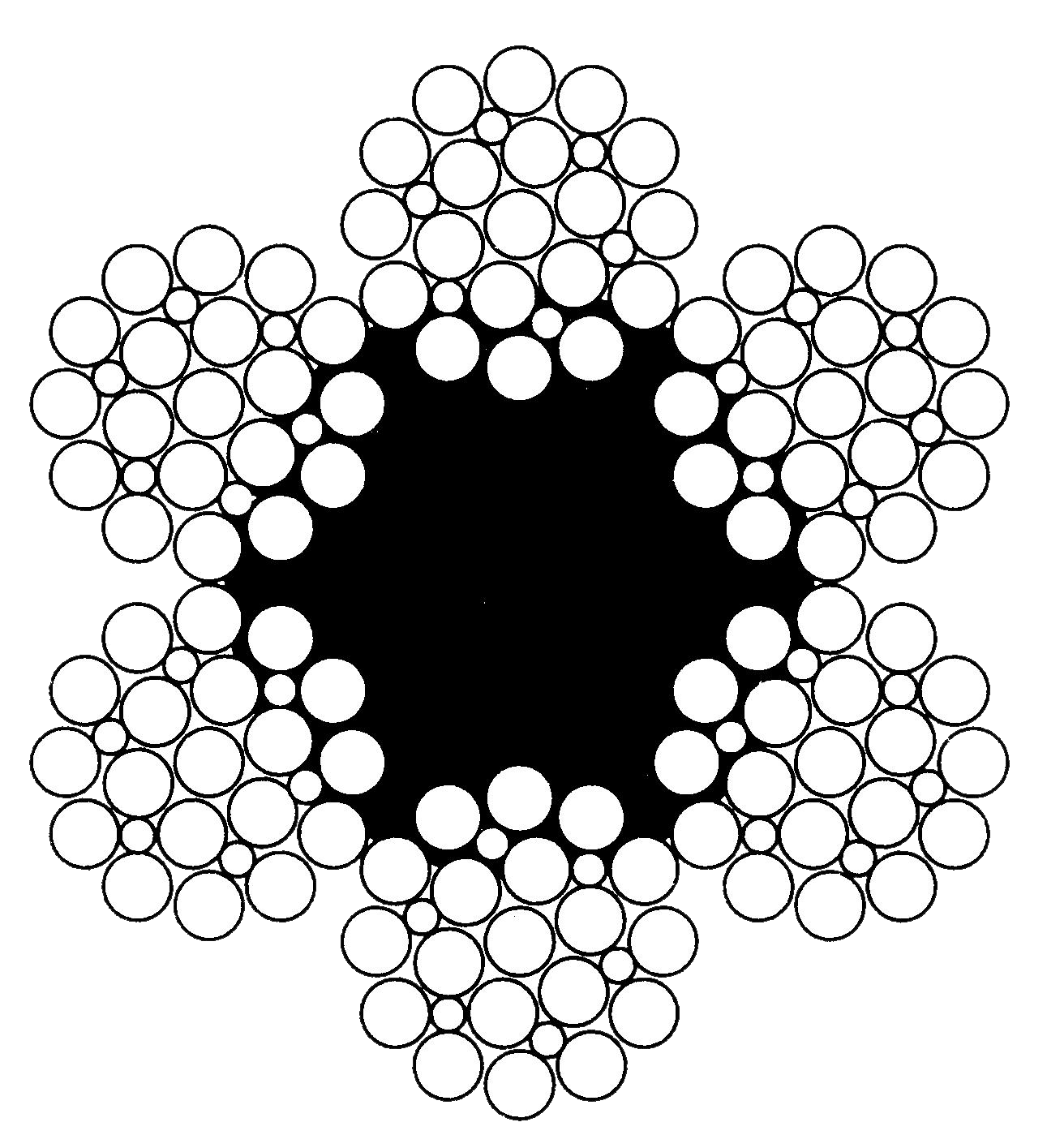

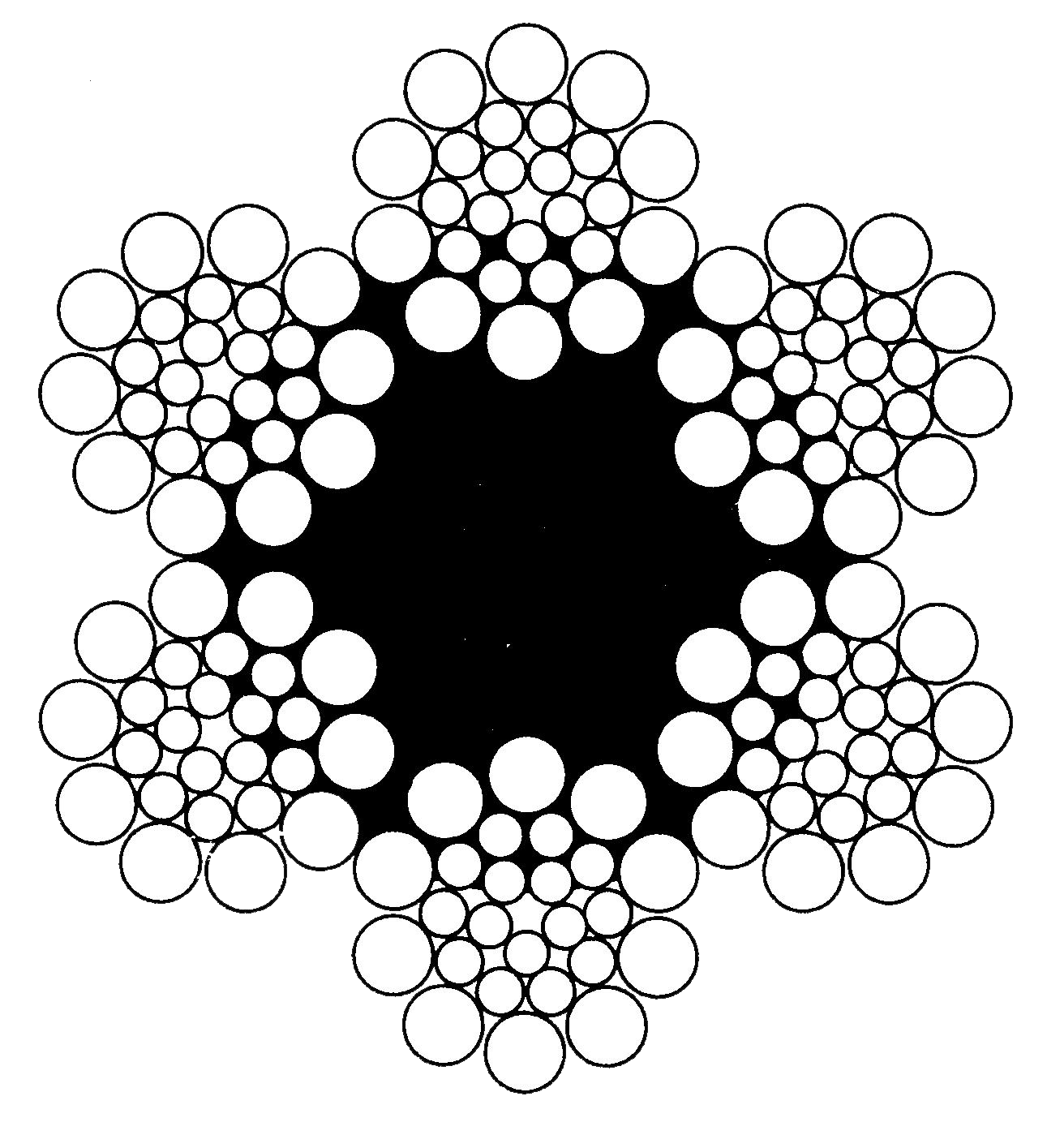

6x25(Fi) FC,  6x26(WS) FC, 6x19(S) FC,  6x19(W) FC,  6x36(WS) FC
Improved Plow Steel (IPS)
Nominal Min. Breaking Strength Unit Weight
Diameter Ungalv Galvanized
inch lb lb lb/1000' kg/1000'
1/4" 5,480 4,940 --- ---
5/16" 8,520 7,660 166 75.5
3/8" 12,200 10,980 238 108
7/16" 16,540 14,880 315 143
1/2" 21,400 19,260 412 187
9/16" 27,000 24,300 522 237
5/8" 33,400 30,000 644 292
3/4" 47,600 42,800 928 421
7/8" 64,400 58,000 1,263 573
1" 83,600 75,200 1,649 748
1-1/8" 105,200 94,600 2,088 947
1-1/4" 129,200 116,200 2,575 1,168
1-3/8" 155,400 139,800 3,117 1,414
1-1/2" 184,000 165,600 3,708 1,682

Specification:  RR-W-410G
6x25(Fi) FC,  6x26(WS) FC, 6x19(S) FC,  6x19(W) FC,  6x36(WS) FC
Extra Improved  Plow  Steel (EIPS)
Nominal Min. Breaking Strength Unit Weight
Diameter Ungalv Galvanized
inch lb lb lb/1000' kg/1000'
1/4" 6,300 5,680 --- ---
5/16" 9,800 8,810 166 75.5
3/8" 14,000 12,600 238 108
7/16" 19,000 17,100 315 143
1/2" 24,600 22,200 412 187
9/16" 31,100 28,000 522 237
5/8" 38,400 34,500 644 292
3/4" 54,700 49,200 928 421
7/8" 74,100 66,700 1,263 573
1" 96,100 86,500 1,649 748
1-1/8" 121,000 108,800 2,088 947
1-1/4" 148,600 133,600 2,575 1,168
1-3/8" 178,700 160,800 3,117 1,414
1-1/2" 211,600 190,400 3,708 1,682
