CLIP AND THIMBLE
(SS304 OR SS316 is available)

US FORGED CLIPUS MALLEABLE CLIP
US FORGED FIST CLIPDIN1142 CLIP
DIN741 CLIP

US LIGHT THIMBLEUS HEAVY DUTY THIMBLE
GALV OPEN THIMBLEPIPE THIMBLE
US HD GUSSETED THIMBLEAN THIMBLE
DIN6899A THIMBLEDIN6899B THIMBLE
MORE THIMBLES

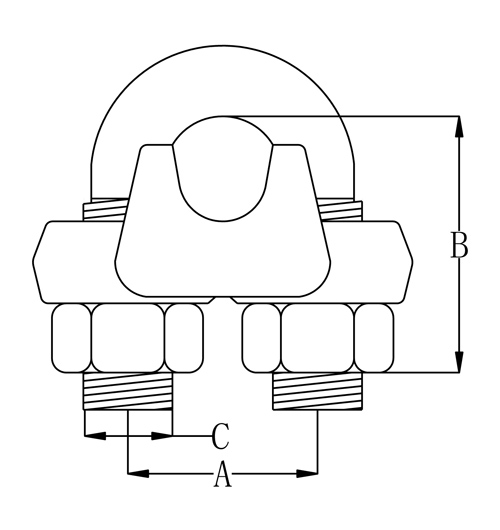

US FORGED WIRE ROPE CLIP

HOT DIP GALVANIZED DROP FORGED WIRE ROPE CLIP
Stock No. Rope Size Weight Per100 Dimensions (in)
(in) (lbs) A B C
DFWCHG018   1/8 6 0.47 0.72 0.22
DFWCHG316   3/16 10 0.59 0.97 0.25
DFWCHG014   1/4 20 0.75 1.03 0.31
DFWCHG516   5/16 30 0.88 0.38 0.38
DFWCHG038   3/8 47 1 1.5 0.44
DFWCHG716   7/16 76 1.19 1.88 0.5
DFWCHG012   1/2 80 1.19 1.88 0.5
DFWCHG916   9/16 104 1.31 2.25 0.56
DFWCHG058   5/8 106 1.31 2.38 0.56
DFWCHG034   3/4 150 1.5 2.75 0.62
DFWCHG078   7/8 212 1.75 3.12 0.75
DFWCHG001 1      260 1.88 3.5 0.75
DFWCHG118 1  1/8 290 2 3.88 0.75
DFWCHG114 1  1/4 430 2.31 4.25 0.88
DFWCHG138 1  3/8 460 2.38 4.63 0.88
DFWCHG112 1  1/2 540 2.59 4.94 0.88
DFWCHG158 1  5/8 700 2.75 5.31 1
DFWCHG134 1  3/4 925 3.06 5.75 1.13
DFWCHG002 2      1300 3.38 6.44 1.25
DFWCHG214 2  1/4 1600 3.88 7.13 1.25
DFWCHG212 2  1/2 1900 4.13 7.69 1.25

BACK TO TOP

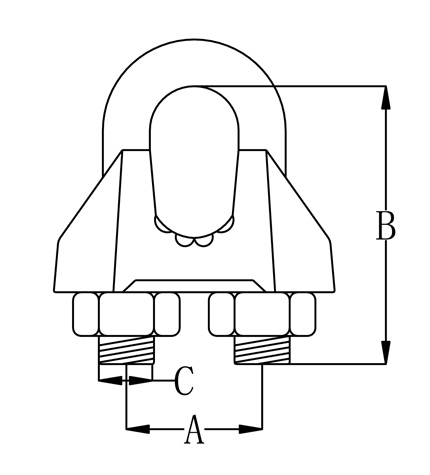

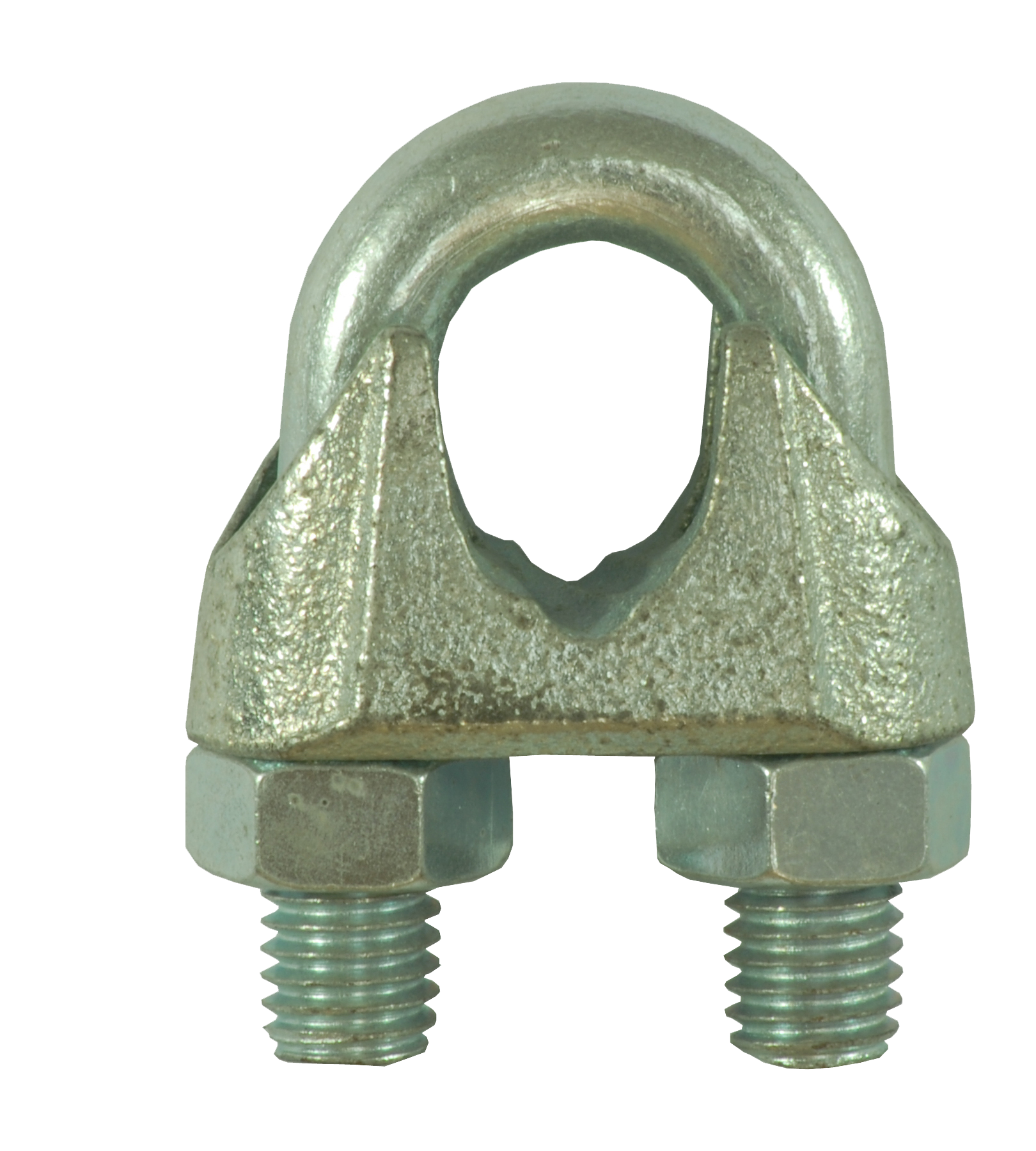

US MALLEABLE CLIP


ELECTRO GALVANIZED MALLEABLE WIRE ROPE CLIP
Stock No. Rope Size Torque in lbs Weight per100 Dimensions (in)
(in) (ft) (lbs) A B C
MWCEG116   1/16 2 3 0.38 0.65 0.15
MWCEG018   1/8 3 4 0.5 0.81 0.18
MWCEG316   3/16 4.5 6.3 0.56 0.94 0.25
MWCEG014   1/4 15 13 0.75 1.19 0.31
MWCEG516   5/16 15 15 0.75 1.31 0.31
MWCEG038   3/8 30 21 0.88 1.63 0.38
MWCEG716   7/16 40 37 1.06 2 0.44
MWCEG012   1/2 45 37 1.06 2 0.44
MWCEG916   9/16 50 59 1.25 2.31 0.5
MWCEG058   5/8 75 59 1.25 2.31 0.5
MWCEG034   3/4 75 84 1.31 2.56 0.56
MWCEG078   7/8 130 125 1.63 3.06 0.63
MWCEG001 1      130 166 1.88 3.44 0.63
MWCEG118 1  1/8 200 243 2 4 0.75

BACK TO TOP

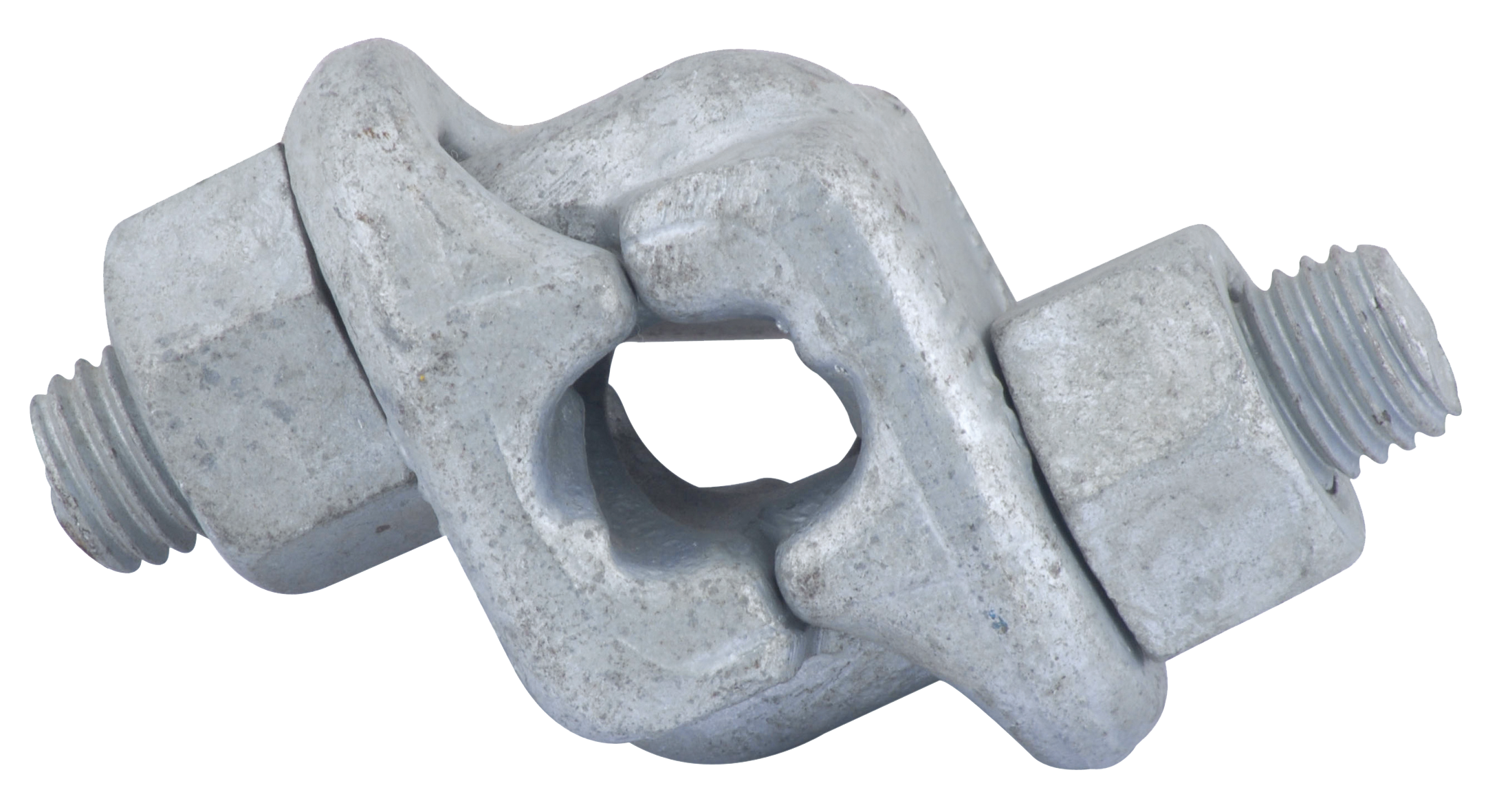

US FORGED FIST CLIP


HOT DIP GALVANIZED DROP FORGED FIST GRIP CLIP
Stock No. Rope Size Weight Stock No. Rope Size Weight
(in) (lbs) (in) (lbs)
DFC31614FG 3/16-1/4 0.18 DFC91658FG 9/16-5/8 0.998
DFC00516FG   5/16 0.279 DFC00034FG   3/4 1.746
DFC00038FG   3/8 0.399 DFC00078FG   7/8 2.245
DFC00716FG   7/16 0.699 DFC00001FG 1      2.994

BACK TO TOP

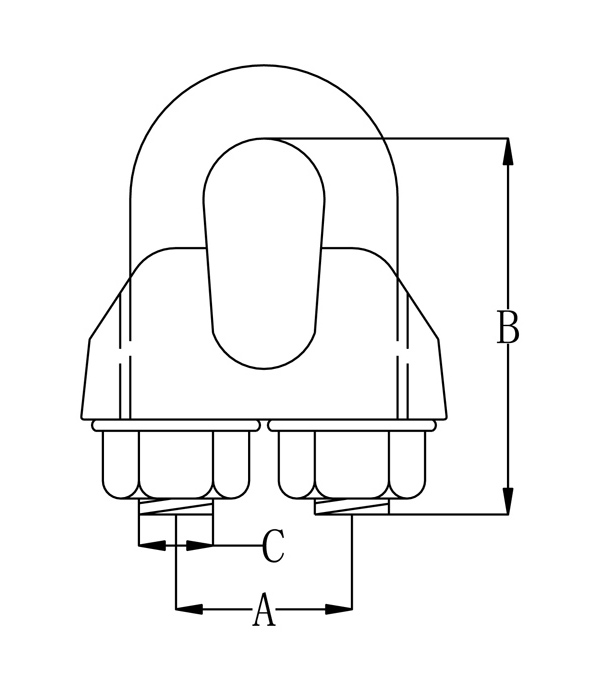

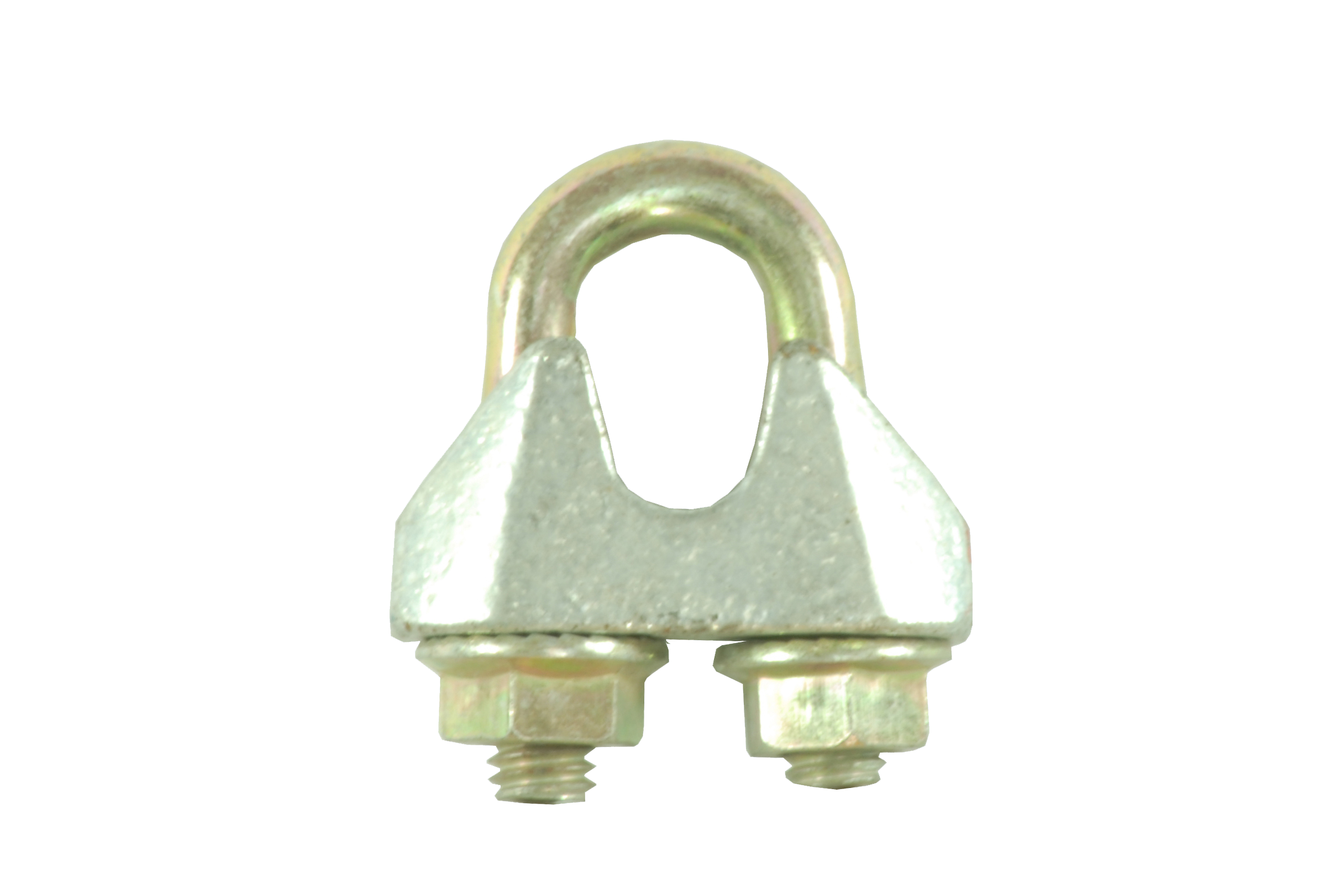

DIN 1142 CLIP


DIN 1142 ELECTRO GALVANIZED WIRE ROPE CLIP
Stock No. Rope Size Weight Per100 Dimensions(mm)
(mm) (kgs) A B C
1142WRYZ005 5 2.1 12 20 5
1142WRYZ065 6.5 4 14 26 6
1142WRYZ008 8 8.2 18 33 8
1142WRYZ010 10 9.2 20 37 8
1142WRYZ013 13 27.5 27 52 12
1142WRYZ016 16 43 32 62 14
1142WRYZ019 19 49 36 69 14
1142WRYZ022 22 68 40 80 16
1142WRYZ026 26 117 46 91 20
1142WRYZ030 30 140 54 107 20
1142WRYZ034 34 213 58 119 22
1142WRYZ040 40 268 68 135 24

BACK TO TOP

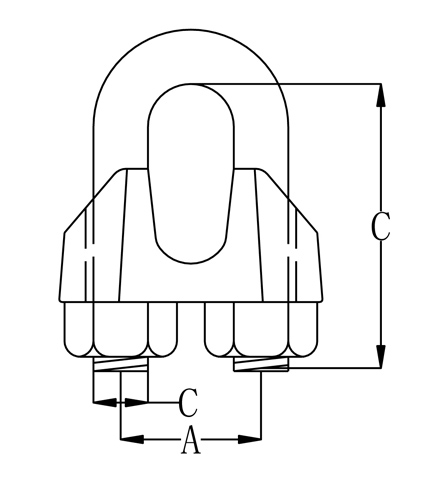

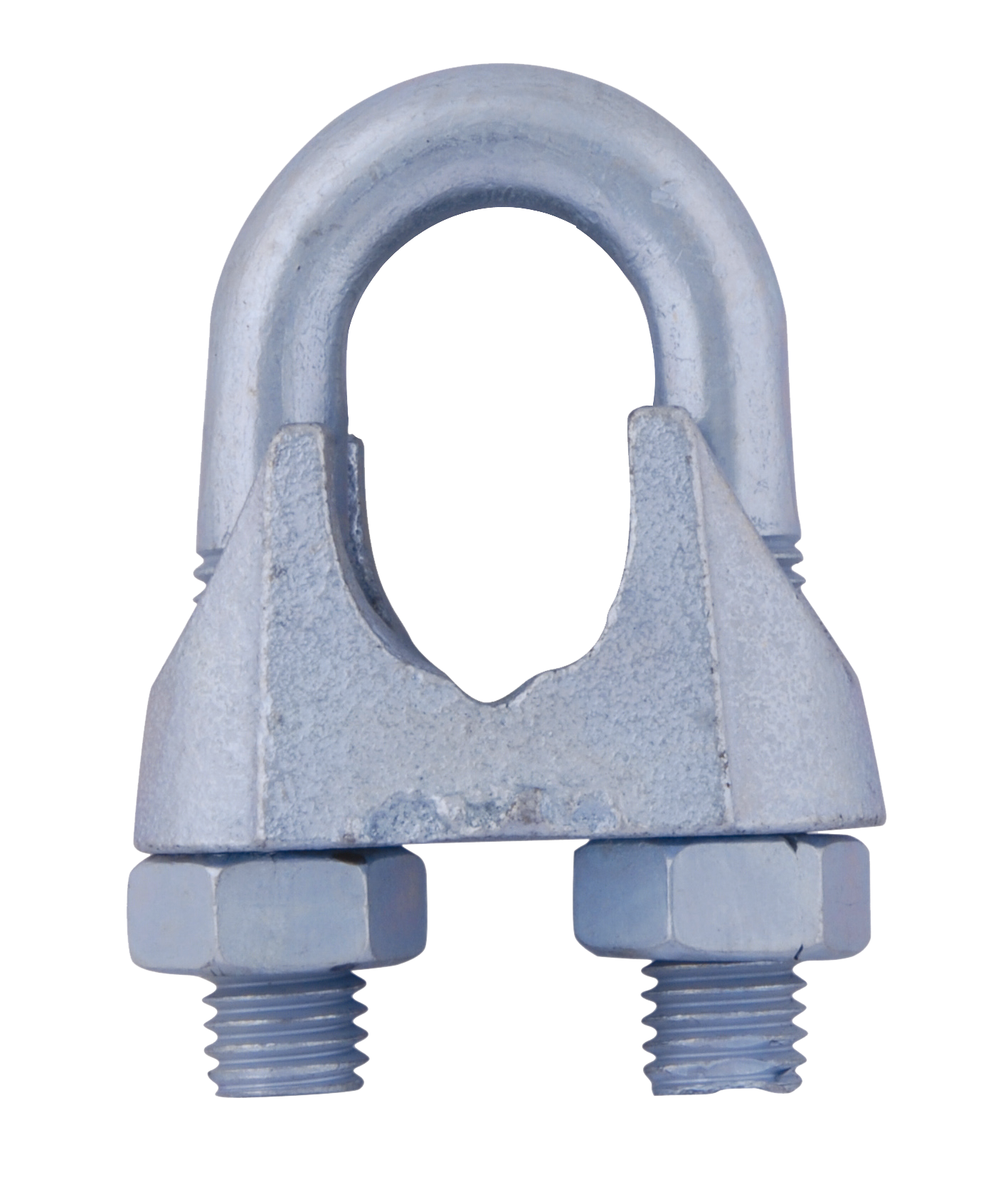

DIN 741 CLIP


DIN 741 ELECTRO GALVANIZED WIRE RIPE CLIP
Stock No . Rope Size Weight Per100 Dimensions(mm)
(mm) (kgs) A B C
741WCEG003 3 1.4 9 16 4
741WCEG005 5 1.5 11 19 5
741WCEG065 6.5 2.1 13 23 5
741WCEG008 8 4.1 16 28 6
741WCEG010 10 6.8 19 34 8
741WCEG011 11 7.2 20 45 8
741WCEG013 13 13 24 46 10
741WCEG014 14 13.5 25 47 10
741WCEG016 16 21 29 51 12
741WCEG019 19 28 32 63 12
741WCEG022 22 40 37 71 14
741WCEG026 26 44 41 81 14
741WCEG030 30 66 48 94 16
741WCEG034 34 85 52 104 16
741WCEG040 40 104 58 124 16
741WCEG050 50 164 68 152 18

BACK TO TOP

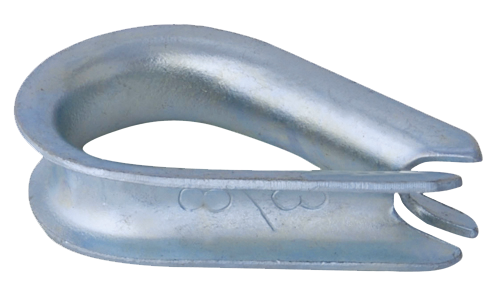

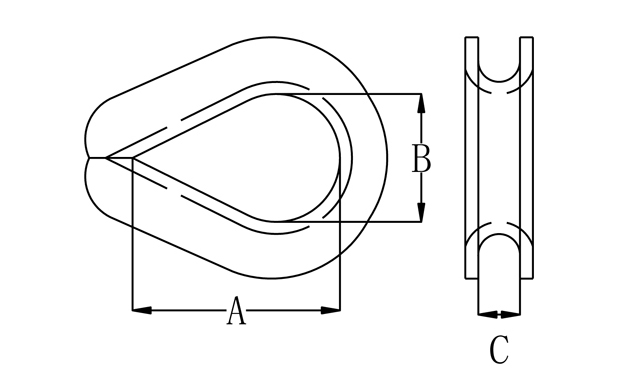

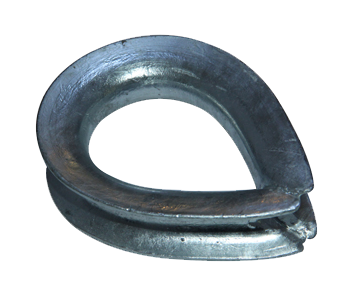

US LIGHT DUTY THIMBLE


GALVANIZED STANDARD WIRE ROPE THIMBLE
Stock No. Rope Dia Weight Per100 Dimensions(in)
(in) (lbs) A B C
THLDH/G018000   1/8 3.5 1.31 0.69 0.16
THLDH/G316000   3/16 3.5 1.31 0.69 0.22
THLDH/G014000   1/4 3.5 1.31 0.69 0.28
THLDH/G516000   5/16 4 1.5 0.81 0.34
THLDH/G038000   3/8 6.7 1.63 0.94 0.41
THLDH/G012000   1/2 12.5 1.88 1.13 0.53
THLDH/G058000   5/8 34.5 2.25 1.38 0.66
THLDH/G034000   3/4 47.1 2.5 1.63 0.78
THLDH/G078000   7/8 84.6 3.5 1.88 0.94
THLDH/G001000 1      97.5 4.25 2.5 1.06
THLDH/G118114 1 1/8-1 1/4 175 4.5 2.75 1.31
THLDH/G138000 1  3/8 278.52 7.54 3.54 1.42
THLDH/G112000 1  1/2 313.28 8.11 4.13 1.56
THLDH/G158000 1  5/8 379.72 9.06 4.33 1.69
THLDH/G134000 1  3/4 487.96 9.59 4.33 1.81
THLDH/G178000 1  7/8 512.6 10.4 4.5 2.05
THLDH/G200000 2      616 10.63 4.5 2.09
THLDH/G212000 2  1/2 880 11.63 5.98 2.52

BACK TO TOP

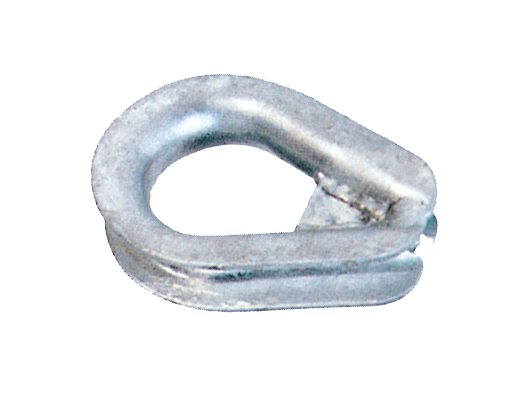

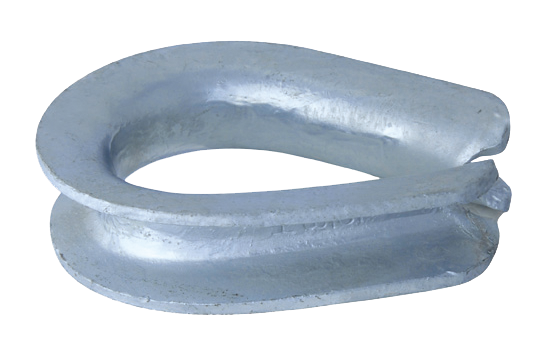

US HEAVY DUTY THIMBLE


HOT DIP GALVANIZED HEAVY DUTY WIRE ROPE THIMBLE
Stock No. Rope Dia Weight Per100 Dimensions(in)
(in) (lbs) A B C
THHDH/G014000   1/4 6.5 1.63 0.88 0.28
THHDH/G516000   5/16 11.8 1.88 1.06 0.34
THHDH/G038000   3/8 21.6 2.13 1.13 0.41
THHDH/G716000   7/16 34.7 2.38 1.25 0.47
THHDH/G012000   1/2 51 2.75 1.5 0.53
THHDH/G916000   9/16 51 2.75 1.5 0.59
THHDH/G058000   5/8 75.7 3.25 1.75 0.66
THHDH/G034000   3/4 158.1 3.75 2 0.78
THHDH/G078000   7/8 177.8 4.25 2.25 0.94
THHDH/G001000 1      313.9 4.5 2.5 1.06
THHDH/G118114 1 1/8-1 1/4 400 5.13 2.88 1.31
THHDH/G114138 1 1/4-1 3/8 811 6.25 3.5 1.44
THHDH/G138112 1 3/8-1 1/2 1294 6.5 3.5 1.56
THHDH/G158000 1  5/8 1700 8 4 1.72
THHDH/G134000 1  3/4 1775 9 4.5 1.84
THHDH/G178002 1 7/8-2 2775 12 6 2.09
THHDH/G214000 2  1/4 3950 14 7 2.38
THHDH/G238000 2  3/8 4884 14.88 7 2.52
THHDH/G212000 2  1/2 6270 15.7 7.4 2.62
THHDH/G234000 2  3/4 6626 16.46 7.4 2.9
THHDH/G278000 2  7/8 7920 17.45 7.72 2.99
THHDH/G003000 3      8470 18.31 7.72 3.15
THHDH/G312000 3  1/2 9680 19.88 9.45 3.74

BACK TO TOP

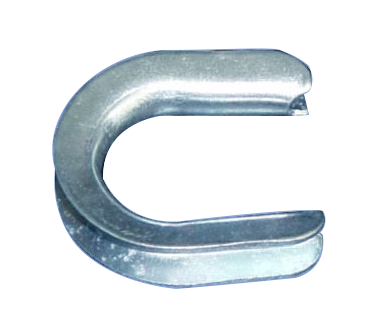

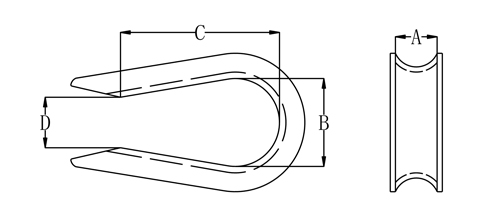

OPEN PATTERN THIMBLE


OPEN PATTERN THIMBLE
Stock No. Rope Dia Dimensions(mm) weight
(in) A B C D Per 100(lbs)
TH014OP  1/4 0.28 0.69 1.41 0.38 3
TH516OP   5/16 0.34 0.81 1.53 0.5 3.8
TH038OP  3/8 0.44 0.94 1.72 0.62 7
TH012OP  1/2 0.53 1.12 1.47 0.75 12.5
TH058OP  5/8 0.66 1.38 2.34 1 25

BACK TO TOP

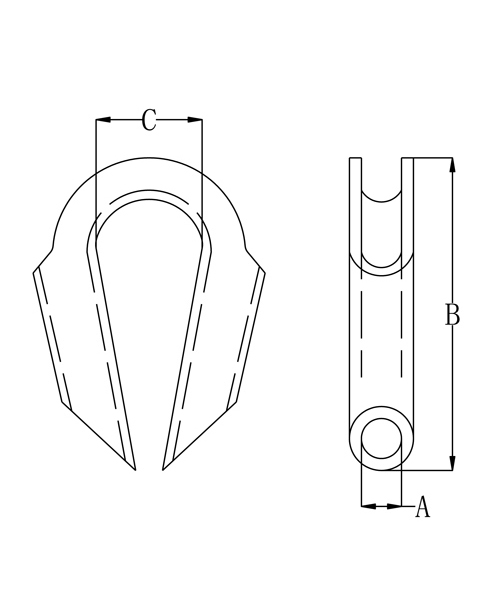

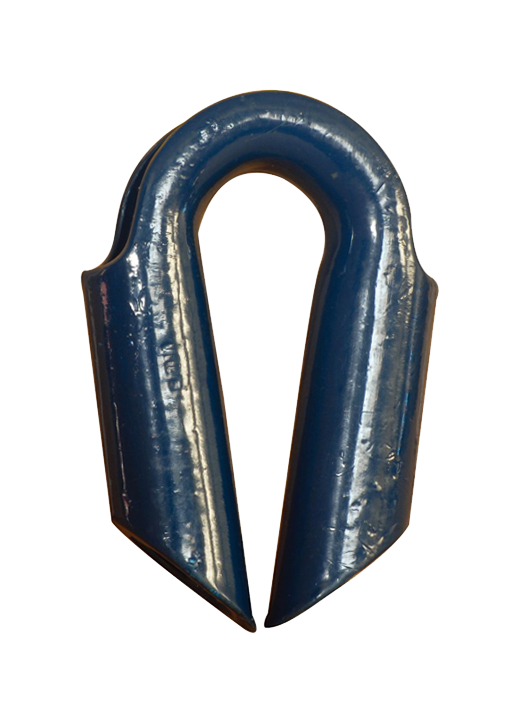

PIPE THIMBLE


PIPE TYPE THIMBLE
Stock No. Rope Dia Dimensions(mm) Weight
(in) A B C (lbs)
PTG212 10 12 90 23 0.55
PTG215 12 15 105 27 0.92
PTG217 14 17 115 27 1.1
PTG219 16 19 120 32 1.32
PTG222 18 22 140 35 1.65
PTG225 22 25 180 45 3.08
PTG228 24 28 180 45 3.85
PTG230 26 30 195 47 4.4
PTG235 30 35 215 60 5.28
PTG240 36 40 240 65 6.82
PTG245 39 45 260 70 7.26
PTG250 44 50 280 75 8.93
PTG255 46 55 298 85 10.56
PTG260 52 60 308 88 14.52
PTG265 56 65 312 88 15.83
PTG270 62 70 332 90 17.16
PTG275 65 75 342 94 17.6

BACK TO TOP
GUSSETED HEAVY DUTY THIMBLE


GALVANIZED GUSSETED HEAVY DUTY WIRE ROPE THIMBLE
Stock No. Rope Dia Weight Per100 Rope Dia Weight Per100
(in) (lbs) (in) (lbs)
THGHDHG014   1/4 7.7   3/4 158.66
THGHDHG516   5/16 14.3   7/8 197.58
THGHDHG038   3/8 27.43 1      312.4
THGHDHG012   1/2 56.39 1 1/8-1 1/4 429
THGHDHG058   5/8 81.84 1 3/8-1 1/2 1232

BACK TO TOP

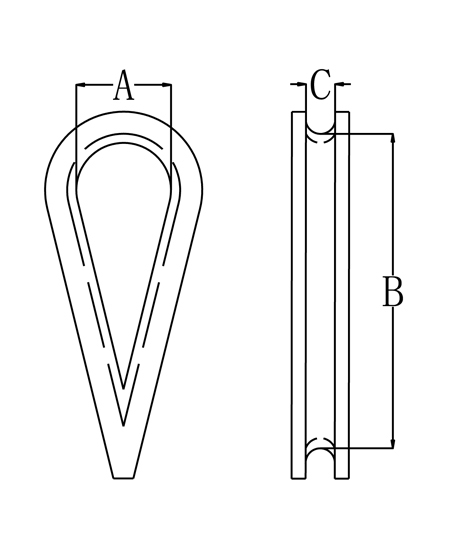

AN THIMBLE


AN THIMBLE
Stock No Dimensions(mm) weight Per 100(lbs)
A B C
THAN100G03 8.89 17.07 2.38 0.38
THAN100G04 8.89 17.86 3.57 0.4
THAN100G05 10.16 20.24 4.37 0.66
THAN100G06 12.7 25.4 5.16 0.8
THAN100G08 17.78 35.72 6.75 1
THAN100G10 22.86 45.64 8.33 2
THAN100G12 25.4 50.8 9.92 3.8

BACK TO TOP

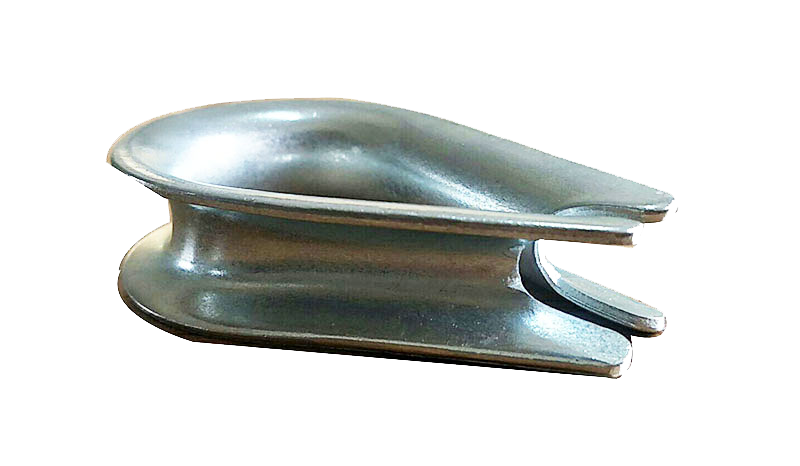

DIN 6899A THIMBLE


GALVANIZED  DIN 6899 TYPE A THIMBLE
Stock No. Size Dimensions(mm) weight
(mm) A B C Per 100(kgs)
TH6899AG025 2.5 3 21.5 10 0.14
TH6899AG030 3 3.5 23.5 11 0.35
TH6899AG035 3.5 4 26.5 12 0.38
TH6899AG040 4 5 28.5 13 0.42
TH6899AG050 5 6 30 14 0.8
TH6899AG060 6 7 33 15 0.81
TH6899AG070 7 8 35 16 1.1
TH6899AG080 8 9 39 18 1.7
TH6899AG090 9 10 43 20 2.1
TH6899AG010 10 11 47.5 22 3.5
TH6899AG011 11 12 51.5 24 3.7
TH6899AG012 12 13 56.5 26 5.25
TH6899AG013 13 14 61 28 7.25
TH6899AG015 15 16 69.5 32 8.33
TH6899AG016 16 18 78 35 17.9
TH6899AG018 18 20 86.5 40 27
TH6899AG020 20 22 95 44 35.5
TH6899AG024/26 24/26 26 90 48 52

BACK TO TOP

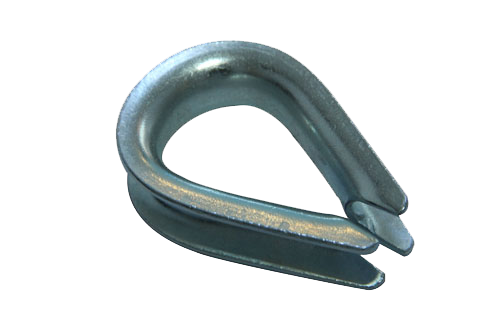

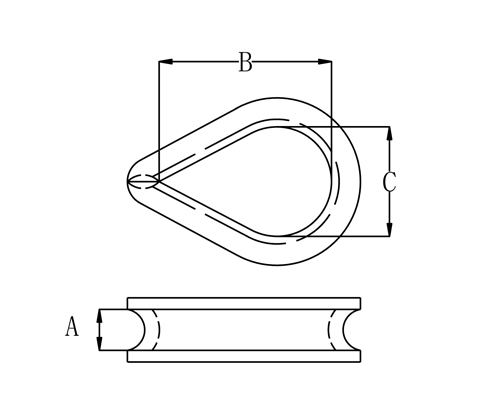

DIN 6899B THIMBLE


GALVANIZED  DIN 6899 TYPE B THIMBLE
Stock No. Size Dimensions(mm) weight
(mm) A B C Per 100(kgs)
TH6899BG025 2.5 3 19 12 0.5
TH6899BG035 3.5 4 21 13 0.8
TH6899BG004 4 5 23 14 1
TH6899BG005 5 6 25 16 1.6
TH6899BG006 6 7 28 18 1.9
TH6899BG007 7 8 32 20 3
TH6899BG009 9 10 38 24 4.7
TH6899BG011 11 12 45 28 6.8
TH6899BG13A 13A 13 48 30 8
TH6899BG13B 13B 14 51 32 10
TH6899BG015 15 16 58 36 14.5
TH6899BG016 16 17 61 38 18
TH6899BG017 17 18 64 40 20
TH6899BG018 18 20 72 45 29
TH6899BG020 20 22 80 50 32
TH6899BG022 22 24 90 56 47
TH6899BG024 24 26 99 62 59
TH6899BG026 26 28 112 70 80
TH6899BG028 28 30 120 75 110
TH6899BG030 30 32 128 80 123
TH6899BG032 32 34 152 92 156
TH6899BG034 34 36 160 100 176
TH6899BG036 36 38 176 110 192
TH6899BG038 38 40 184 115 292
TH6899BG040 40 42 192 120 320


BACK TO TOP

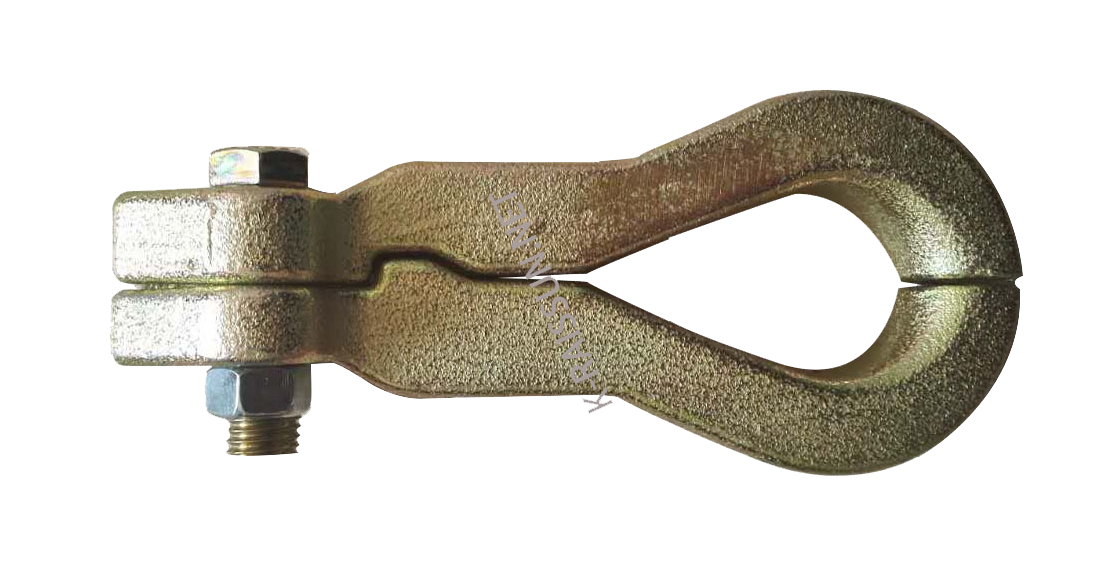

MORE THIMBLES
