| Specification: DIN3058 | ||||||

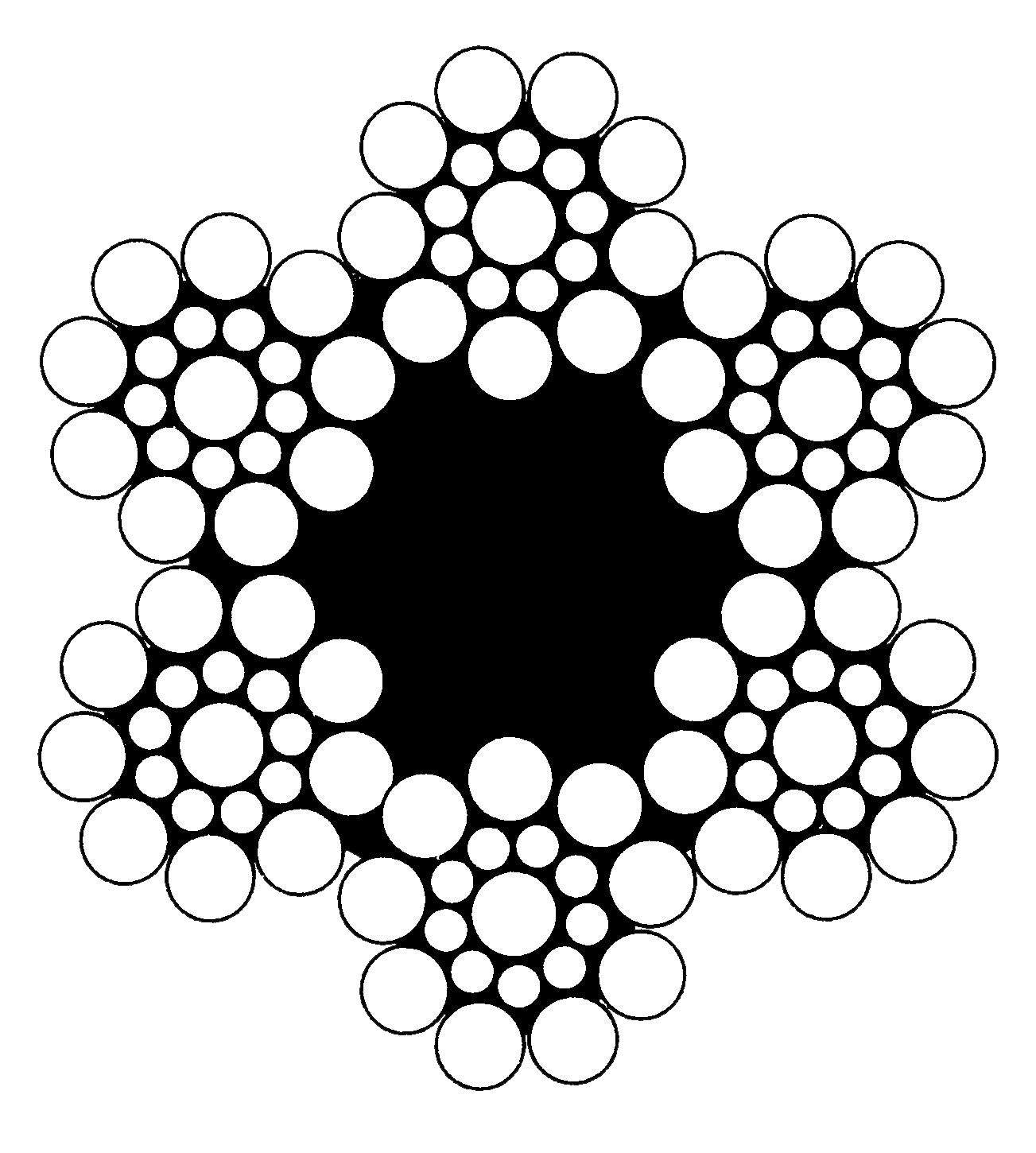

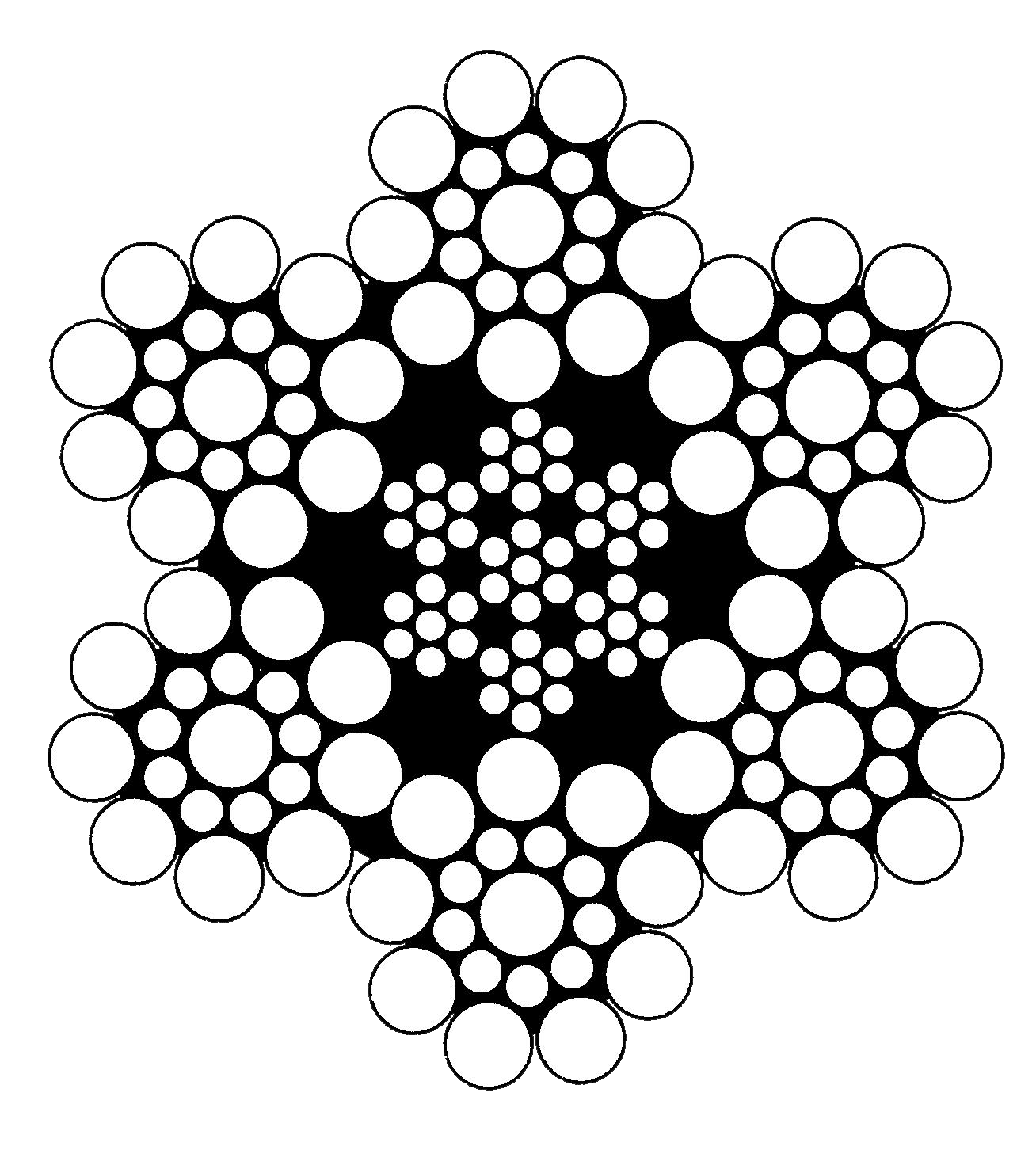

| 6x19(S)+FC, 6x19(S)+IWRC | ||||||

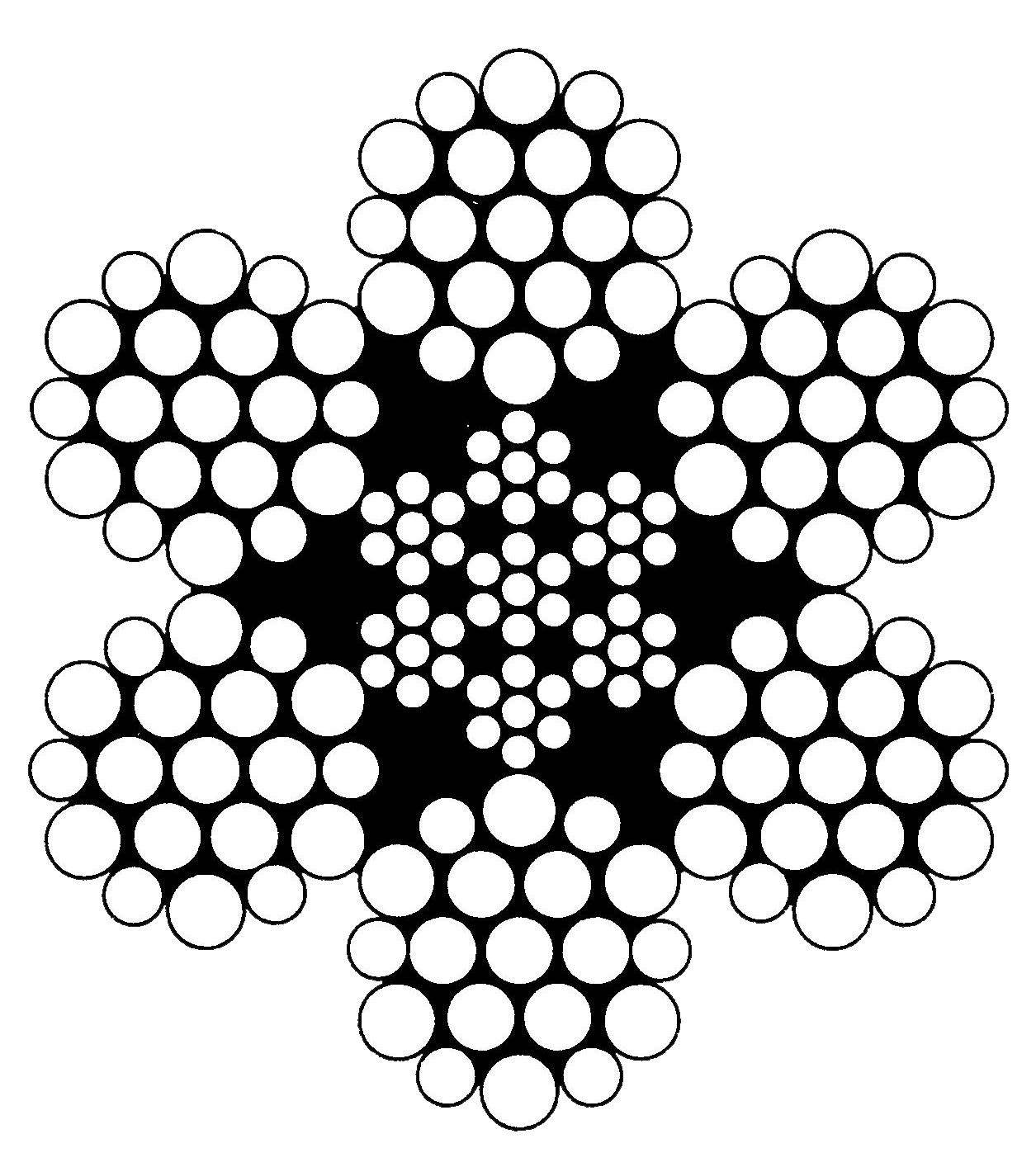

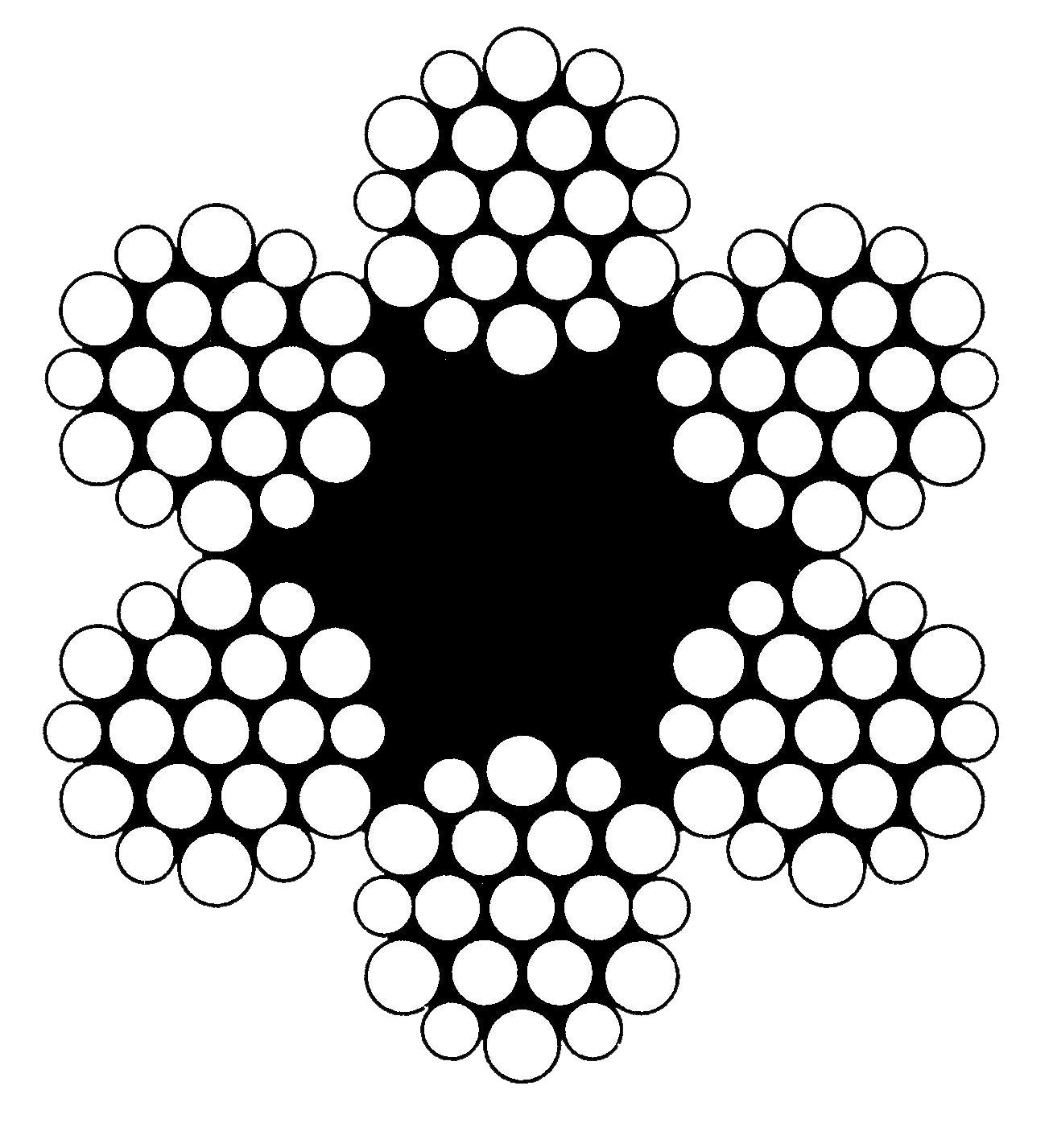

| 6x19(W)+FC, 6x19(W)+IWRC | ||||||
| Nominal Diameter | Approx. | Nominal Tensile Strength | ||||
| Weight | 1570 N/mm2 | 1770 N/mm2 | ||||
| kg/100m | Minimum Breaking Strength (KN) | |||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC |
| 6 | 13.4 | 14.8 | - | - | 21.1 | 22.8 |
| 7 | 18.3 | 20.1 | - | - | 28.7 | 31.0 |
| 8 | 23.8 | 26.2 | 33.2 | 35.9 | 37.5 | 40.5 |
| 9 | 30.2 | 33.2 | 42.1 | 45.5 | 47.4 | 51.2 |
| 10 | 37.3 | 41.0 | 52.0 | 56.1 | 58.6 | 63.8 |
| 11 | 45.1 | 49.6 | 62.9 | 67.9 | 70.9 | 76.5 |
| 12 | 53.7 | 59.0 | 74.8 | 80.8 | 84.3 | 91.1 |
| 13 | 63.0 | 69.3 | 87.8 | 94.8 | 99.0 | 107 |
| 14 | 73.1 | 80.4 | 102 | 110 | 115 | 124 |
| 15 | 83.9 | 92.3 | 117 | 126 | 132 | 142 |
| 16 | 95.5 | 105.0 | 133 | 144 | 150 | 162 |
| 17 | 108 | 119 | 150 | 162 | 169 | 183 |
| 18 | 121 | 133 | 168 | 182 | 190 | 205 |
| 19 | 135 | 148 | 188 | 203 | 211 | 228 |
| 20 | 149 | 164 | 208 | 224 | 234 | 253 |
| 22 | 181 | 198 | 251 | 272 | 283 | 306 |
| 24 | 215 | 236 | 299 | 323 | 337 | 364 |
| 26 | 252 | 277 | 351 | 379 | 396 | 428 |
| 28 | 292 | 321 | 407 | 440 | 459 | 496 |
| 30 | 336 | 369 | 467 | 505 | 527 | 569 |
| 32 | 382 | 420 | 532 | 575 | - | - |
| 36 | 483 | 531 | 673 | 727 | - | - |
