DRAGON STEEL PRODUCTS



WINCHES AND WINCH BAR



ITEMS Dimensions (in) Weight
(lbs)
A B C C

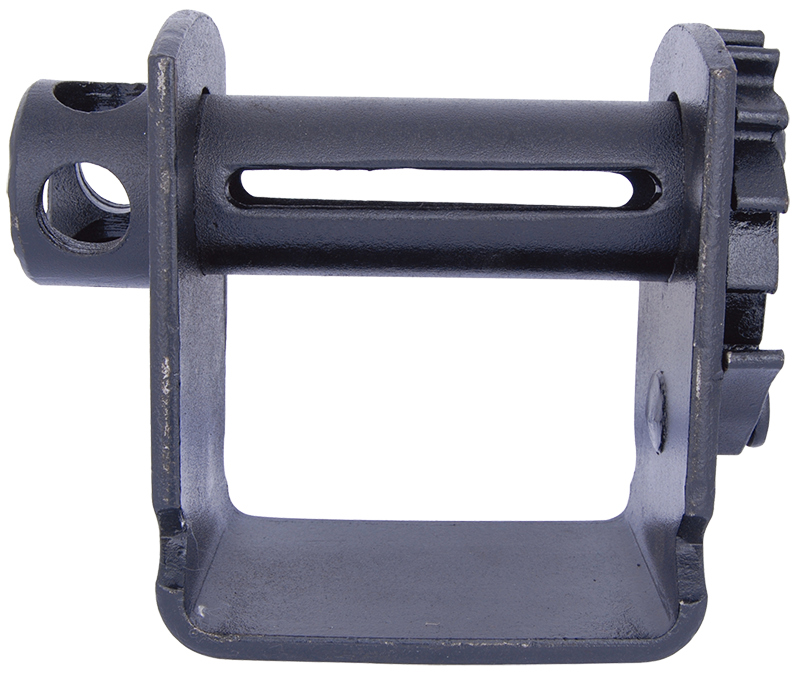

#1 Standard Weld-On Webbing Winch 8  1/8 4  7/8 5  1/2 3  1/2 8.40

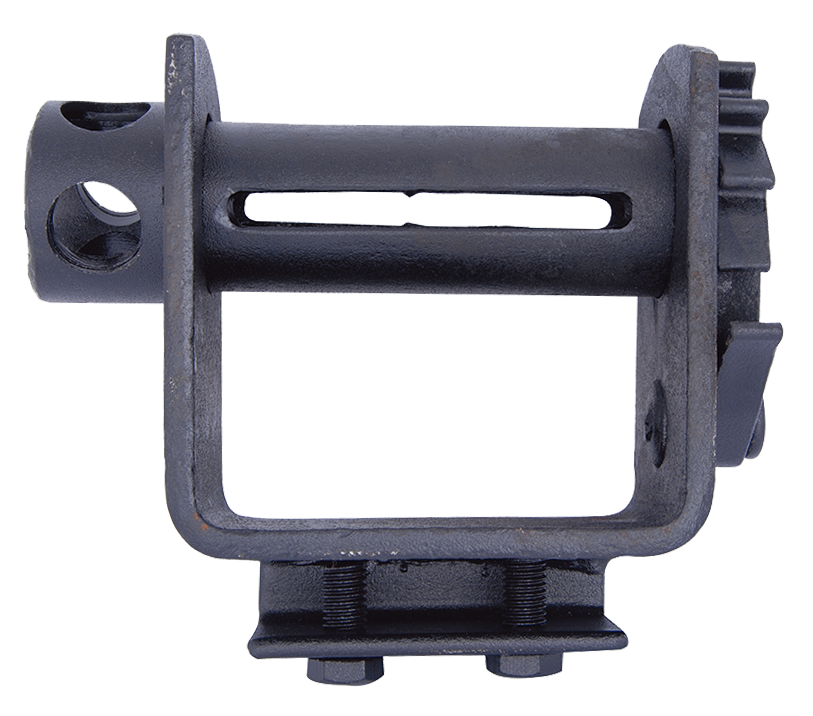

#2 Standard Sliding Webbing Winch 8  1/8 5 5  3/16 4 8.00
#3 Standard Portable Webbing Winch 8  1/8 4  7/8 5  1/2 3  1/2 9.10
#4 Standard Portable Webbing Winch
With 1 set Screw
8  1/8 4  7/8 5  1/2 3  1/2 9.40
#5 Standard Portable Webbing Winch 8  1/8 4  7/8 5  1/2 3  1/2 9.60
#6 Storable Weld-On Webbing Winch 8  1/8 4  7/8 6  1/2 3  1/2 9.60
#7 Low Profile Sliding Webbing Winch 11 7  3/4 6 4 12.30
#8 Standard Sliding Webbing Winch 8  1/8 4  7/8 6 4 9.10
#9 Standard sliding Webbing Winch
For 2" Webbing
6  1/2 3  3/8 4  3/4 3  1/2 10.90
#10 Storable Sliding Webbing Winch 8  1/8 4  7/8 7  1/2 4 10.50
#11 Storable Disc Webbing Winch
For 3" Webbing
7  1/2 4  7/8 8  3/4 3  1/2 11.30
#12 Low Profile Weld-On Webbing Winch 8  1/8 4  7/8 3  7/8 4 7.40
#13 Low Profile Portable Webbing Winch
(Bracket Only)
8  1/8 4  7/8 3  7/8 4 8.20
#14 Low Profile Portable Webbing Winch 8  1/8 4  7/8 3  7/8 4 8.30
#15 Low Profile Portable Webbing Winch
With 2 Set Screws
8  1/8 4  7/8 3  7/8 4 8.50
#16 Storable Disc Webbing Winch
For 4" Webbing
8  1/8 4  7/8 8  3/4 3  1/2 11.70
#17 Standard Weld-On Cable Winch
For 1/2" Diameter Post/Hole
8  1/8 4  7/8 5  1/2 3  1/2 8.70
#18 Leg Bracket Winches (Webbing Only) 8  1/8 4  7/8 3  7/8 4  7/8 6.50
#19 Leg Bracket Winches (Webbing or Cable) 9  3/8 6  5/8 3  7/8 4  7/8 7.30
#20 Box Winches (Webbing Only) 8  3/4 7  1/2 5  3/8 4      12.00
#21 Box Winches (Webbing or Cable) 10  5/8 9  3/8 5  3/8 4      12.50
#22 Low Profile Weld-On Combnation
Webbing & Cable Winch
9  3/8 6  1/2 4  5/16 4 9.30
#23 Standard Weld-On Combination
Webbing & Cable Winch
9  3/8 6  1/2 5  3/8 3  1/2 9.80
#24 Low Profile 3 Bar Winch 10  1/8 6  1/2 5  3/8 4 11.80
#25 Standard 3 Bar Winch 10  1/8 6  1/2 5  3/8 3  1/2 11.80

WINCH BAR, STANDARD, BLACK         5.00
WINCH BAR, STANDARD CHROME PLATED         5.00

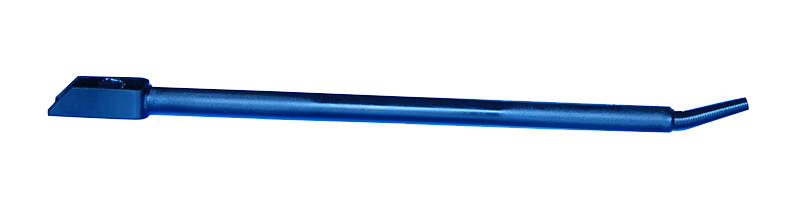

WINCH BAR, COMBINATION, BLACK         5.73

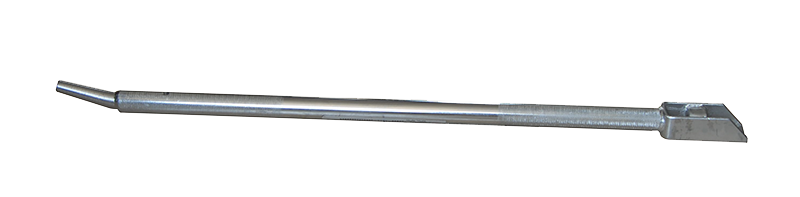

WINCH BAR, COMBINATION, CHROME PLATED         5.73
