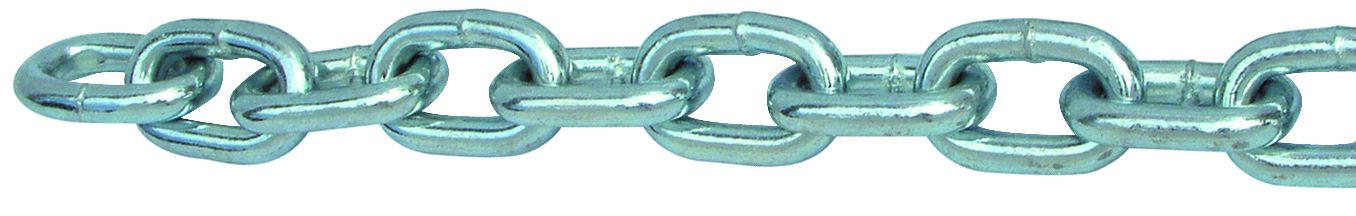

| DIN5685C Long Link Chains | |||||
| Diameter | Inside | Outside | Proof | Breaking | Unit |
| Length | Width | Load | Load | Weight | |
| mm | mm | mm | N | N | kg/100m |
| 2.0 | 22 | 8 | 500 | 1,250 | 6.0 |
| 2.5 | 24 | 10 | 750 | 2,000 | 10.0 |
| 3.0 | 26 | 12 | 1,120 | 2,800 | 15.0 |
| 3.5 | 28 | 14 | 1,500 | 3,850 | 20.0 |
| 4.0 | 32 | 16 | 2,000 | 5,000 | 27.0 |
| 4.5 | 34 | 18 | 2,500 | 6,300 | 35.0 |
| 5.0 | 35 | 20 | 3,150 | 7,750 | 43.0 |
| 5.5 | 38.5 | 22 | 3,800 | 9,500 | 52.0 |
| 6.0 | 42 | 24 | 4,500 | 11,500 | 63.0 |
| 6.5 | 45.5 | 26 | 5,400 | 13,500 | 74.0 |
| 7.0 | 49 | 28 | 6,000 | 15,000 | 86.0 |
| 8.0 | 52 | 32 | 8,000 | 20,000 | 110 |
| 9.0 | 59 | 36 | 10,000 | 25,000 | 141 |
| 10 | 65 | 40 | 12,500 | 31,000 | 175 |
| 11 | 72 | 44 | 15,000 | 38,000 | 211 |
| 12 | 78 | 48 | 18,000 | 45,000 | 255 |
| 13 | 82 | 52 | 21,200 | 53,000 | 295 |
