LOADBINDERS
RATCHET TYPE LOADBINDER
| STANDARD RATCHET TYPE LOAD BINDER |
| Stock No. |
Chain Size (in) |
W.L.L. (lbs) |
M.B.S. (lbs) |
Weight (lbs) |
| RLB000014 |
1/4 |
2600 |
9200 |
3.75 |
| RLB51638A |
5/16-3/8 |
5400 |
19000 |
10.5 |
| RLB51638B |
5/16-3/8 |
6600 |
26000 |
11.23 |
| RLB038012 |
3/8-1/2 |
9200 |
33000 |
12.9 |
| RLB012058 |
1/2-5/8 |
13000 |
46000 |
14.55 |
BACK TO TOP
LEVEL TYPE LOADBINDER
| STANDARD LEVER TYPE LOAD BINDER |
| Stock No. |
Chain Size (in) |
W.L.L. (lbs) |
M.B.S. (lbs) |
Weight (lbs) |
| LLB00014 |
1/4 |
2600 |
9200 |
4.2 |
| LLB51638 |
5/16-3/8 |
5400 |
19000 |
7.02 |
| LLB03812 |
3/8-1/2 |
9200 |
33000 |
12.47 |
| LLB01258 |
1/2-5/8 |
13000 |
46000 |
13.9 |
BACK TO TOP
ANTI LOCK LOADBINDER
| ANTI LOCK LOADBINDER |
| Stock No. |
Chain Size (in) |
W.L.L. (lbs) |
M.B.S. (lbs) |
Weight (lbs) |
| ATLB51638 |
5/16-3/8 |
5400 |
19000 |
8.58 |
| ATLB03812 |
3/8-1/2 |
9200 |
33000 |
13.75 |
BACK TO TOP
SNUBBER SPRING LOCK LOADBINDER
| SNUBBER SPRING LOAD BINDER |
| Stock No. |
Chain Size (in) |
W.L.L. (lbs) |
M.B.S. (lbs) |
Weight (lbs) |
| SSLB51638 |
5/16-3/8 |
5400 |
16200 |
11.25 |
| SSLB03812 |
3/8-1/2 |
9200 |
30300 |
18.69 |
BACK TO TOP

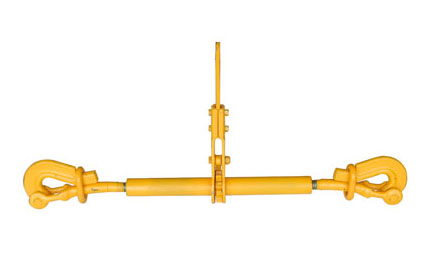

STEAMBOAT RATCHET
| STEAMBOAT RATCHET |
| Stock No. |
Chain Size (in) |
W.L.L. (lbs) |
M.B.S. (lbs) |
Weight (lbs) |
| RRATCHET13824 |
1 3/8 - 24 |
17000 |
85000 |
58.3 |
| RRATCHET13830 |
1 3/8 - 30 |
17000 |
85000 |
62.7 |
| RRATCHET13836 |
1 3/8 - 36 |
17000 |
85000 |
67.1 |
BACK TO TOP
TENSIONER AND CHAIN
| TENSIONER (chain is available) |
| STOCK NO. |
Size (mm) |
M.B.S. (tons) |
Weight (lbs) |
| TENSIONER09 |
9 |
10 |
7.70 |
| TENSIONER11 |
11 |
15 |
8.58 |
| TENSIONER13 |
13 |
20 |
13.20 |
