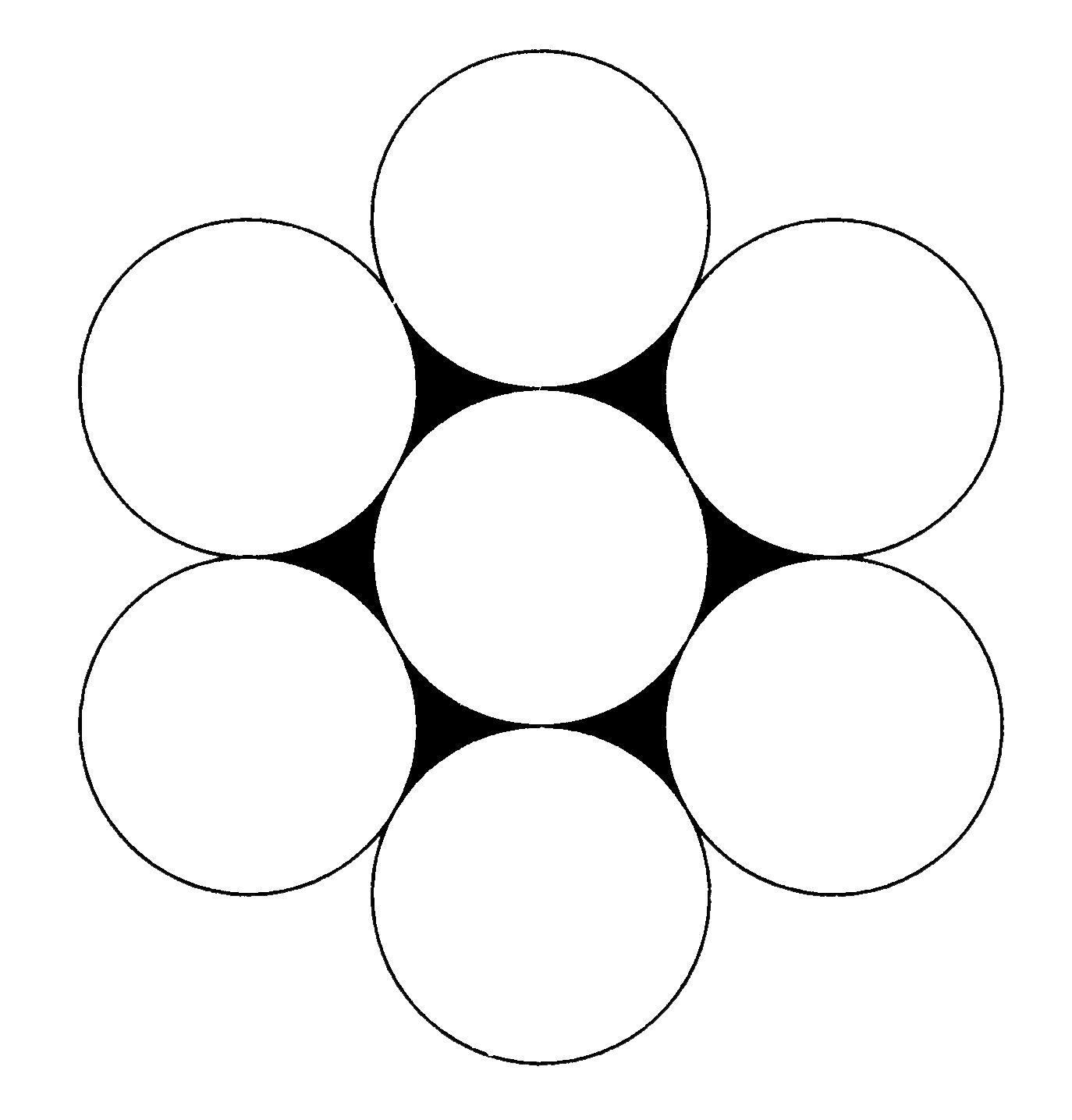

Specification:  DIN3052         1x7
Nominal Diameter Approx weight Nominal Tensile Strength
1570 N/mm2 1770 N/mm2
Min Breaking Strength
mm kg/100m KN KN
0.6 0.18 0.308 0.347
0.8 0.32 0.547 0.617
1.0 0.50 0.855 0.963
1.5 1.13 1.92 2.17
2.0 2.01 3.42 3.85
2.5 3.14 5.34 6.02
3.0 4.52 7.69 8.67
3.5 6.15 10.5 11.8
4.0 8.03 13.7 15.4
4.5 10.2 17.3 19.5
5.0 12.6 21.4 --
6.0 18.1 30.8 --
7.0 24.6 41.9 --
8.0 32.1 54.7 --

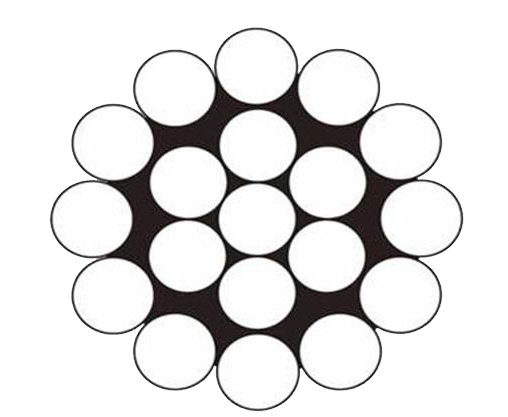

Specification:  DIN3053         1x19
Nominal Diameter Approx. Weight  Nominal Tensile Strength
1570 N/mm2 1770 N/mm2
Min Breaking Strength
mm kg/100m KN KN
1.0 0.50 0.825 0.93
1.2 0.71 1.19 1.34
1.5 1.11 1.86 2.09
2.0 1.98 3.30 3.72
2.5 3.10 5.15 5.81
3.0 4.46 7.42 8.37
3.5 6.06 10.1 11.4
4.0 7.93 13.2 14.9
5.0 12.4 20.6 23.2
6.0 17.8 29.7 33.5
7.0 24.3 40.4 45.6
8.0 31.7 52.8 59.5
9.0 40.1 66.8 75.3
10 49.5 82.5 93.0
11 59.9 99.8 --
12 71.3 119 --
