DRAGON STEEL PRODUCTS| FORGED TURNBUCKLE EE,EJ,JJ | FORGED TURNBUCKLE EH,HH |
| DF TURNBUCKLE BODY | DF STUB END TURNBUCKLE |
| SPLIT BODY TURNBUCKLE | DIN1480 TURNBUCKLE |
| DD TURNBUCKLE | ZINC DIE CAST TURNBUCKLE |

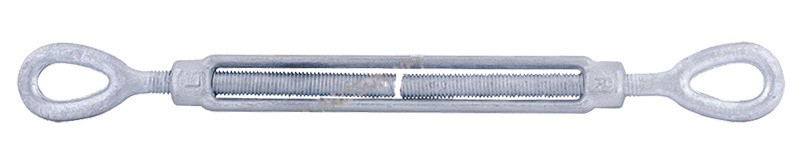

| HOT DIP GALVANIZED DROP FORGED TURNBUCKLE | |||||||||

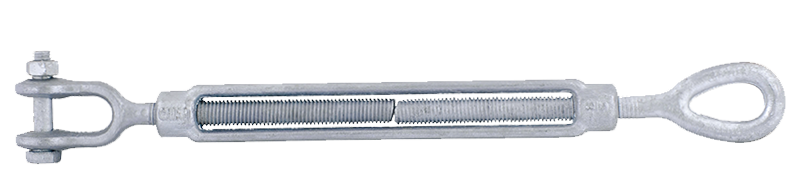

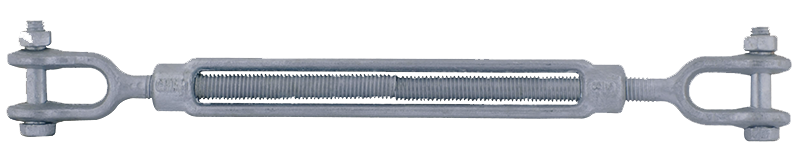

| EYE/EYE, JAW/EYE, JAW/JAW | |||||||||
| Stock No. | Thread Dia & Take Up | W.L.L(lbs) | Dimensions(in) | Weight(lbs) Eye/Eye | Weight(lbs) Jaw/Eye | Weight(lbs) Jaw/Jaw | |||
| A | B | C | D | ||||||
| TBHG014004EE/JE/JJ | 1/4 X 4 | 500 | 0.45 | 0.62 | 0.78 | 0.34 | 0.30 | 0.32 | 0.39 |
| TBHG516412EE/JE/JJ | 5/16 X 4 1/2 | 800 | 0.5 | 0.87 | 0.94 | 0.44 | 0.46 | 0.47 | 0.54 |
| TBHG038006EE/JE/JJ | 3/8 X 6 | 1200 | 0.54 | 0.87 | 1.12 | 0.53 | 0.73 | 0.76 | 0.83 |
| TBHG012006EE/JE/JJ | 1/2 X 6 | 2200 | 0.63 | 1.06 | 1.44 | 0.72 | 1.46 | 1.53 | 1.57 |
| TBHG012009EE/JE/JJ | 1/2 X 9 | 2200 | 0.55 | 1.06 | 1.44 | 0.72 | 1.71 | 1.76 | 1.95 |
| TBHG012012EE/JE/JJ | 1/2 X 12 | 2200 | 0.55 | 1.06 | 1.44 | 0.72 | 2.19 | 2.20 | 2.24 |
| TBHG058006EE/JE/JJ | 5/8 X 6 | 3500 | 0.82 | 1.31 | 1.75 | 0.88 | 2.47 | 2.65 | 2.80 |
| TBHG058009EE/JE/JJ | 5/8 X 9 | 3500 | 0.82 | 1.31 | 1.75 | 0.88 | 2.90 | 3.06 | 3.35 |
| TBHG058012EE/JE/JJ | 5/8 X 12 | 3500 | 0.82 | 1.31 | 1.75 | 0.88 | 3.48 | 3.78 | 4.00 |
| TBHG034006EE/JE/JJ | 3/4 X 6 | 5200 | 1.03 | 1.50 | 2.09 | 1.00 | 3.90 | 4.00 | 4.30 |
| TBHG034009EE/JE/JJ | 3/4 X 9 | 5200 | 1.03 | 1.50 | 2.09 | 1.00 | 4.60 | 4.75 | 4.89 |
| TBHG034012EE/JE/JJ | 3/4 X 12 | 5200 | 1.03 | 1.50 | 2.09 | 1.00 | 5.46 | 5.76 | 5.90 |
| TBHG034018EE/JE/JJ | 3/4 X 18 | 5200 | 1.03 | 1.50 | 2.09 | 1.00 | 6.97 | 7.00 | 7.52 |
| TBHG078006EE/JE/JJ | 7/8 X 6 | 7200 | 1.23 | 1.75 | 2.38 | 1.25 | 5.85 | 6.29 | 6.84 |
| TBHG078012EE/JE/JJ | 7/8 X 12 | 7200 | 1.23 | 1.75 | 2.38 | 1.25 | 7.65 | 8.00 | 8.60 |
| TBHG078018EE/JE/JJ | 7/8 X 18 | 7200 | 1.23 | 1.75 | 2.38 | 1.25 | 10.25 | 10.60 | 11.44 |
| TBHG001006EE/JE/JJ | 1 X 6 | 10000 | 1.31 | 2.06 | 3.00 | 1.44 | 8.98 | 9.16 | 9.44 |
| TBHG001012EE/JE/JJ | 1 X 12 | 10000 | 1.31 | 2.06 | 3.00 | 1.44 | 11.31 | 11.40 | 11.53 |
| TBHG001018EE/JE/JJ | 1 X 18 | 10000 | 1.31 | 2.06 | 3.00 | 1.44 | 14.00 | 14.75 | 16.10 |
| TBHG001024EE/JE/JJ | 1 X 24 | 10000 | 1.31 | 2.06 | 3.00 | 1.44 | 16.02 | 17.50 | 18.60 |
| TBHG114006EE/JE/JJ | 1 1/4 X 6 | 15200 | 1.86 | 2.81 | 3.56 | 1.81 | 15.45 | 16.03 | 16.69 |
| TBHG114012EE/JE/JJ | 1 1/4 X 12 | 15200 | 1.86 | 2.81 | 3.56 | 1.81 | 19.00 | 20.00 | 23.00 |
| TBHG114018EE/JE/JJ | 1 1/4 X 18 | 15200 | 1.86 | 2.81 | 3.56 | 1.81 | 22.50 | 24.18 | 26.60 |
| TBHG114024EE/JE/JJ | 1 1/4 X 24 | 15200 | 1.86 | 2.81 | 3.56 | 1.81 | 25.00 | 28.50 | 31.20 |
| TBHG112012EE/JE/JJ | 1 1/2 X 12 | 21400 | 2.25 | 2.81 | 4.06 | 2.12 | 27.00 | 31.10 | 35.50 |
| TBHG112018EE/JE/JJ | 1 1/2 X 18 | 21400 | 2.25 | 2.81 | 4.06 | 2.12 | 31.69 | 35.00 | 40.70 |
| TBHG112024EE/JE/JJ | 1 1/2 X 24 | 21400 | 2.25 | 2.81 | 4.06 | 2.12 | 38.20 | 44.20 | 47.60 |
| TBHG134018EE/JE/JJ | 1 3/4 X 18 | 28000 | 2.6 | 3.38 | 4.62 | 2.38 | 45.20 | 48.80 | 52.40 |
| TBHG134024EE/JE/JJ | 1 3/4 X 24 | 28000 | 2.6 | 3.38 | 4.62 | 2.38 | 58.00 | 60.00 | 64.00 |
| TBHG002024EE/JE/JJ | 2 X 24 | 37000 | 2.62 | 3.69 | 5.75 | 2.69 | 81.57 | 102.00 | 115.00 |
| TBHG212024EE/JE/JJ | 2 1/2 X 24 | 60000 | 3.06 | 4.44 | 6.50 | 3.12 | 180.00 | 183.00 | 200.00 |
| TBHG234024EE/JE/JJ | 2 3/4 X 24 | 75000 | 3.68 | 4.19 | 7.00 | 3.25 | 210.00 | 214.00 | 248.00 |
BACK TO TOP

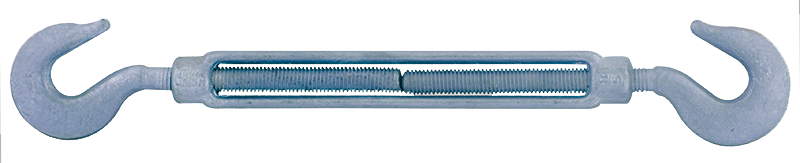

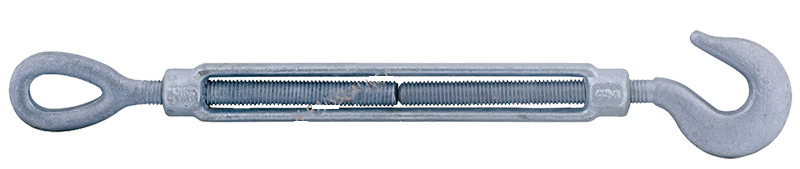

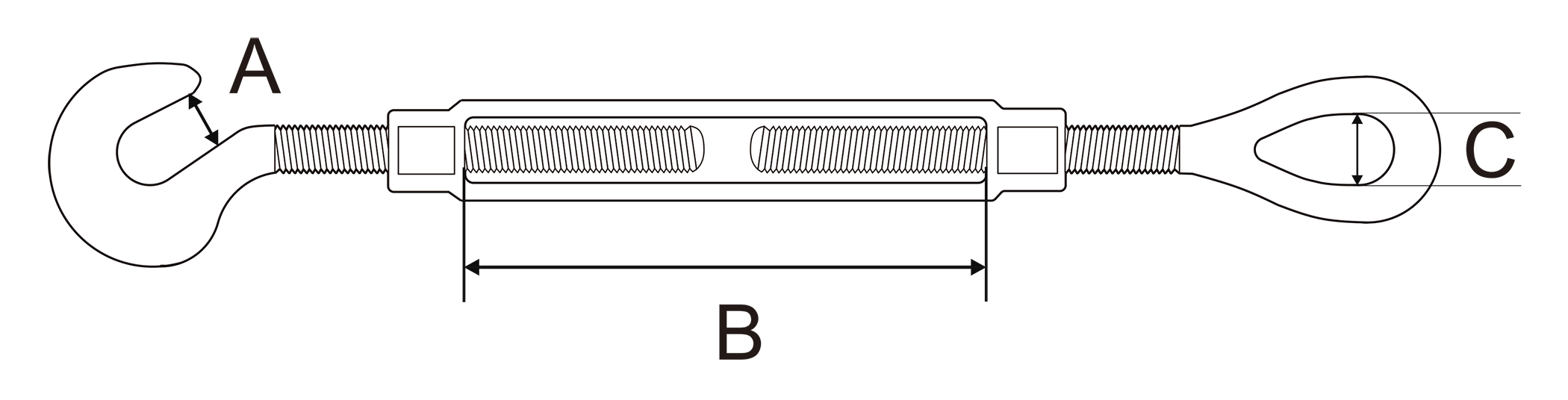

| HOT DIP GALVANIZED DROP FORGED TURNBUCKLE HOOK & EYE, HOOK & HOOK | ||||||
| Stock No. | Thread Dia & Take Up | W.L.L. (lbs) | Weight (lbs) | Dimensions (in) | ||
| A | B | C | ||||
| TBHG014004HE/HH | 1/4 X 4 | 400 | 0.30 | 0.45 | 4.00 | 0.34 |
| TBHG516412HE/HH | 5/16 X 4 1/2 | 700 | 0.47 | 0.50 | 4.50 | 0.44 |
| TBHG038006HE/HH | 3/8 X 6 | 1000 | 0.75 | 0.56 | 6.00 | 0.53 |
| TBHG012006HE/HH | 1/2 X 6 | 1500 | 1.60 | 0.66 | 6.00 | 0.72 |
| TBHG012009HE/HH | 1/2 X 9 | 1500 | 1.83 | 0.66 | 9.00 | 0.72 |
| TBHG012012HE/HH | 1/2 X 12 | 1500 | 2.08 | 0.66 | 12.00 | 0.72 |
| TBHG058006HE/HH | 5/8 X 6 | 2250 | 2.75 | 0.84 | 6.00 | 0.88 |
| TBHG058009HE/HH | 5/8 X 9 | 2250 | 3.13 | 0.84 | 9.00 | 0.88 |
| TBHG058012HE/HH | 5/8 X 12 | 2250 | 3.50 | 0.84 | 12.00 | 0.88 |
| TBHG034006HE/HH | 3/4 X 6 | 3000 | 3.89 | 0.98 | 6.00 | 1.00 |
| TBHG034009HE/HH | 3/4 X 9 | 3000 | 4.61 | 0.98 | 9.00 | 1.00 |
| TBHG034012HE/HH | 3/4 X 12 | 3000 | 5.43 | 0.98 | 12.00 | 1.00 |
| TBHG034018HE/HH | 3/4 X 18 | 3000 | 7.25 | 0.98 | 18.00 | 1.00 |
| TBHG078012HE/HH | 7/8 X 12 | 4000 | 8.10 | 1.13 | 12.00 | 1.25 |
| TBHG078018HE/HH | 7/8 X 18 | 4000 | 9.95 | 1.13 | 18.00 | 1.25 |
| TBHG001006HE/HH | 1 X 6 | 5000 | 9.33 | 1.25 | 6.00 | 1.44 |
| TBHG001012HE/HH | 1 X 12 | 5000 | 11.93 | 1.25 | 12.00 | 1.44 |
| TBHG001018HE/HH | 1 X 18 | 5000 | 14.00 | 1.25 | 18.00 | 1.44 |
| TBHG001024HE/HH | 1 X 24 | 5000 | 17.25 | 1.25 | 24.00 | 1.44 |
| TBHG114012HE/HH | 1 1/4 X 12 | 6500 | 19.00 | 1.50 | 12.00 | 1.81 |
| TBHG114018HE/HH | 1 1/4 X 18 | 6500 | 23.00 | 1.50 | 18.00 | 1.81 |
| TBHG114024HE/HH | 1 1/4 X 24 | 6500 | 27.00 | 1.50 | 24.00 | 1.81 |
| TBHG112012HE/HH | 1 1/2 X 12 | 7500 | 27.50 | 1.88 | 12.00 | 2.12 |
| TBHG112018HE/HH | 1 1/2 X 18 | 7500 | 31.00 | 1.88 | 18.00 | 2.12 |
| TBHG112024HE/HH | 1 1/2 X 24 | 7500 | 37.50 | 1.88 | 24.00 | 2.12 |
| *Ultimate load is 5 times working load limit | ||||||
BACK TO TOP

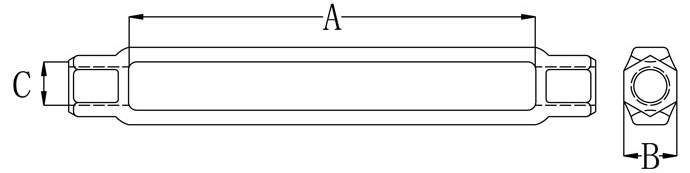

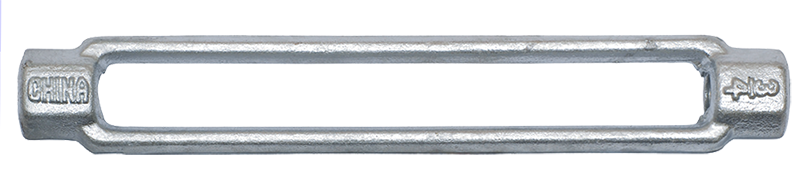

| DROP FORGED TURNBUCKLE BODY ONLY | ||||||
| Stock No | Size (in) |
W.L.L (lbs) | Weight (lbs) | Dimensions(in) | ||
| A | B | C | ||||
| TBBODY014004 | 1/4 X 4 | 500 | 0.15 | 4.00 | 0.50 | 0.38 |
| TBBODY516412 | 5/16 X 4 1/2 | 800 | 0.19 | 4.50 | 0.56 | 0.44 |
| TBBODY038006 | 3/8 X 6 | 1200 | 0.29 | 6.00 | 0.62 | 0.50 |
| TBBODY012006 | 1/2 X 6 | 2200 | 0.60 | 6.00 | 0.81 | 0.62 |
| TBBODY012009 | 1/2 X 9 | 2200 | 0.68 | 9.00 | 0.81 | 0.62 |
| TBBODY012012 | 1/2 X 12 | 2200 | 1.00 | 12.00 | 0.81 | 0.62 |
| TBBODY058006 | 5/8 X 6 | 3500 | 0.90 | 6.00 | 1.00 | 0.75 |
| TBBODY058009 | 5/8 X 9 | 3500 | 1.18 | 9.00 | 1.00 | 0.75 |
| TBBODY058012 | 5/8 X 12 | 3500 | 1.43 | 12.00 | 1.00 | 0.75 |
| TBBODY034006 | 3/4 X 6 | 5200 | 1.30 | 6.00 | 1.12 | 0.94 |
| TBBODY034009 | 3/4 X 9 | 5200 | 1.75 | 9.00 | 1.12 | 0.94 |
| TBBODY034012 | 3/4 X 12 | 5200 | 2.08 | 12.00 | 1.12 | 0.94 |
| TBBODY034018 | 3/4 X 18 | 5200 | 2.50 | 18.00 | 1.12 | 0.94 |
| TBBODY078006 | 7/8 X 6 | 7200 | 1.86 | 6.00 | 1.31 | 1.06 |
| TBBODY078012 | 7/8 X 12 | 7200 | 2.70 | 12.00 | 1.31 | 1.06 |
| TBBODY078018 | 7/8 X 18 | 7200 | 3.80 | 18.00 | 1.31 | 1.06 |
| TBBODY001006 | 1 X 6 | 10000 | 2.48 | 6.00 | 1.50 | 1.25 |
| TBBODY001012 | 1 X 12 | 10000 | 3.93 | 12.00 | 1.50 | 1.25 |
| TBBODY001018 | 1 X 18 | 10000 | 5.28 | 18.00 | 1.50 | 1.25 |
| TBBODY001024 | 1 X 24 | 10000 | 7.38 | 24.00 | 1.50 | 1.25 |
| TBBODY114006 | 1 1/4 X 6 | 15200 | 3.90 | 6.00 | 1.88 | 1.50 |
| TBBODY114012 | 1 1/4 X 12 | 15200 | 5.25 | 12.00 | 1.88 | 1.50 |
| TBBODY114018 | 1 1/4 X 18 | 15200 | 7.75 | 18.00 | 1.88 | 1.50 |
| TBBODY114024 | 1 1/4 X 24 | 15200 | 9.93 | 24.00 | 1.88 | 1.50 |
| TBBODY112006 | 1 1/2 X 6 | 21400 | 5.80 | 6.00 | 2.25 | 1.75 |
| TBBODY112012 | 1 1/2 X 12 | 21400 | 8.75 | 12.00 | 2.25 | 1.75 |
| TBBODY112018 | 1 1/2 X 18 | 21400 | 11.00 | 18.00 | 2.25 | 1.75 |
| TBBODY112024 | 1 1/2 X 24 | 21400 | 13.69 | 24.00 | 2.25 | 1.75 |
| TBBODY134018 | 1 3/4 X 18 | 28000 | 16.38 | 18.00 | 2.62 | 2.12 |
| TBBODY134024 | 1 3/4 X 24 | 28000 | 21.25 | 24.00 | 2.62 | 2.12 |
| TBBODY002006 | 2 X 6 | 37000 | 12.50 | 6.00 | 3.00 | 2.38 |
| TBBODY002024 | 2 X 24 | 37000 | 27.60 | 24.00 | 3.00 | 2.38 |
| TBBODY212006 | 2 1/2 X 6 | 60000 | 27.00 | 6.00 | 3.88 | 3.12 |
| TBBODY212024 | 2 1/2 X 24 | 60000 | 54.00 | 24.00 | 3.88 | 3.12 |
| TBBODY234024 | 2 3/4 X 24 | 75000 | 54.00 | 24.00 | 3.88 | 3.12 |
| *Ultimate load is 5 times working load limit | ||||||
BACK TO TOP

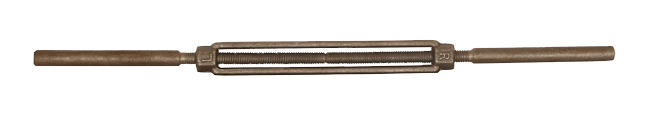

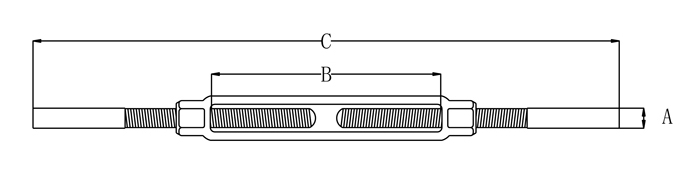

| DROP FORGED STUB END TURNBUCKLE | ||||||
| Stock No. | Thread Dia & Take Up | W.L.L. (lbs) | Weight (lbs) |
Dimensions(in) | ||
| A | B | C | ||||
| TBSTUBS038006 | 3/8 X 6 | 1200 | 0.75 | 0.38 | 6.00 | 16.00 |
| TBSTUBS012006 | 1/2 X 6 | 2200 | 1.25 | 0.50 | 6.00 | 16.00 |
| TBSTUBS058006 | 5/8 X 6 | 3500 | 2.11 | 0.63 | 6.00 | 16.00 |
| TBSTUBS034006 | 3/4 X 6 | 5200 | 3.27 | 0.75 | 6.00 | 17.00 |
| TBSTUBS078006 | 7/8 X 6 | 7200 | 4.78 | 0.88 | 6.00 | 18.00 |
| TBSTUBS001006 | 1 X 6 | 10000 | 6.36 | 1.00 | 6.00 | 19.00 |
| TBSTUBS001012 | 1 X 12 | 10000 | 8.80 | 1.00 | 12.00 | 25.00 |
| TBSTUBS118006 | 1 1/8 X 6 | 12400 | 8.88 | 1.13 | 6.00 | 19.00 |
| TBSTUBS114006 | 1 1/4 X 6 | 15200 | 10.18 | 1.25 | 6.00 | 20.00 |
| TBSTUBS114012 | 1 1/4 X 12 | 15200 | 13.60 | 1.25 | 12.00 | 26.00 |
| TBSTUBS112012 | 1 1/2 X 12 | 21400 | 20.44 | 1.50 | 12.00 | 26.50 |
BACK TO TOP

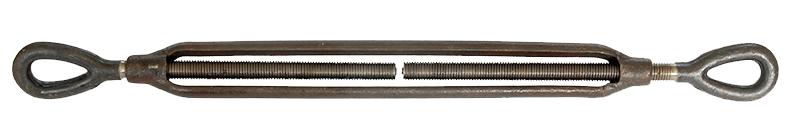

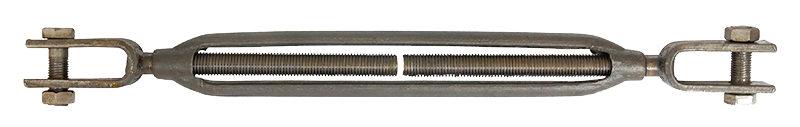

| SPLIT BODY TURNBUCKLE | ||||
| Stock No | Size (in) | Type | W.L.L (lbs) | Weight (lbs) |
| SBTBEE3412 | 3/4 X 12 | Eye & Eye | 3620 | 5.00 |
| SBTBJJ3412 | 3/4 X 12 | Jaw & Jaw | 3620 | 5.80 |
| SBTBEE3418 | 3/4 X 18 | Eye & Eye | 3620 | 7.00 |
| SBTBJJ3418 | 3/4 X 18 | Jaw & Jaw | 3620 | 8.57 |
| SBTBEE7818 | 7/8 X 18 | Eye & Eye | 4500 | 9.46 |
| SBTBJJ7818 | 7/8 X 18 | Jaw & Jaw | 4500 | 9.50 |
| SBTBEE0112 | 1 X 12 | Eye & Eye | 6620 | 9.50 |
| SBTBJJ0112 | 1 X 12 | Jaw & Jaw | 6620 | 10.00 |
| SBTBEE0118 | 1 X 18 | Eye & Eye | 6620 | 13.00 |
| SBTBJJ0118 | 1 X 18 | Jaw & Jaw | 6620 | 14.00 |
BACK TO TOP

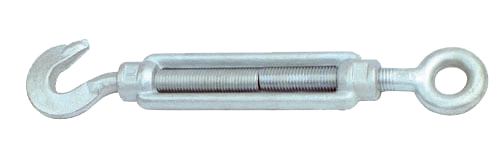

| DIN1480 GALVANIZED TURNBUCKLE BODY TURNBUCKLE Hook & Eye, Eye & Eye, Hook & Hook |
|||
| Stock No | Dia of Thread (mm) | Body Length (mm) | Weight (kgs) |
| TB1480EG05050HE/EE/HH | 5 | 50 | 0.03 |
| TB1480EG061101HE/EE/HH | 6 | 110 | 0.11 |
| TB1480EG08110HE/EE/HH | 8 | 110 | 0.15 |
| TB1480EG10125HE/EE/HH | 10 | 125 | 0.28 |
| TB1480EG12125HE/EE/HH | 12 | 125 | 0.42 |
| TB1480EG14140HE/EE/HH | 14 | 140 | 0.55 |
| TB1480EG16170HE/EE/HH | 16 | 170 | 1.00 |
| TB1480EG20200HE/EE/HH | 20 | 200 | 1.60 |
| TB1480EG22225HE/EE/HH | 22 | 225 | 2.00 |
| TB1480EG24255HE/EE/HH | 24 | 255 | 2.10 |
| TB1480EG30255HE/EE/HH | 30 | 255 | 3.90 |
| TB1480EG33295HE/EE/HH | 33 | 295 | 5.80 |
| TB1480EG36295HE/EE/HH | 36 | 295 | 7.10 |
BACK TO TOP

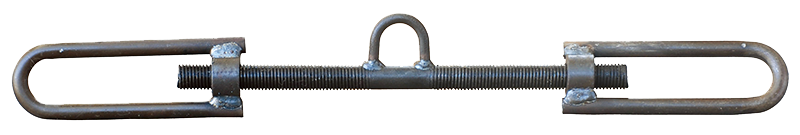

| DD-TURNBUCKLE SELF COLORED | |||
| Stock No | Size (mm) | Body Length (mm) | Weight (lbs) |
| TBDDS20400 | 20 | 400 | 5.06 |
| TBDDS22400 | 22 | 400 | 5.95 |
| TBDDS24400 | 24 | 400 | 6.6 |
| TBDDS24500 | 24 | 500 | 7.26 |
| TBDDS27400 | 27 | 400 | 8.8 |
| TBDDS27500 | 27 | 500 | 9.62 |
| TBDDS30400 | 30 | 400 | 10.56 |
| TBDDS30500 | 30 | 500 | 12.54 |
| TBDDS36400 | 36 | 400 | 14.96 |
| TBDDS36500 | 36 | 500 | 16.72 |
BACK TO TOP

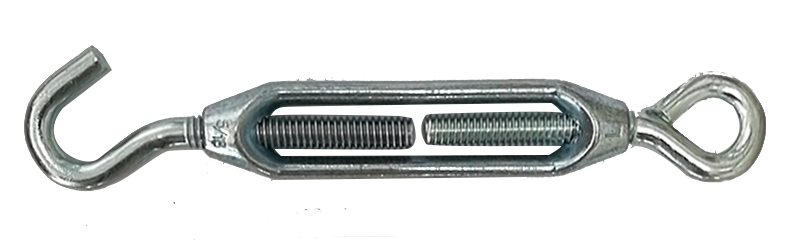

| ZINC DIE CAST ALLOY TURBUCKLE | ||||
| Stock No | Size (mm) | Open Length (mm) | Close Length (mm) | Weight (kg) |
| ZDTBHH05050 | M5X50 | 120 | 90 | 0.04 |
| ZDTBHH05070 | M5X70 | 140 | 110 | 0.05 |
| ZDTBHH06060 | M6X60 | 140 | 100 | 0.06 |
| ZDTBHH06100 | M6X100 | 220 | 150 | 0.08 |
| ZDTBHH08070 | M8X70 | 170 | 130 | 0.09 |
| ZDTBHH08110 | M8X110 | 250 | 170 | 0.13 |
| ZDTBHH10080 | M10X80 | 200 | 150 | 0.16 |
| ZDTBHH10120 | M10X120 | 280 | 200 | 0.24 |
| ZDTBHH10130 | M10X130 | 310 | 220 | 0.37 |
