| Chain Anchor With Delta Ring & Eye Grab Hook | ||||||||
| Delta Ring Size | Enlarged Link Size | Chain Size & Grade | Qty of Chain Links | Hook Size & Grade | Breaking Load (lbs) | Length | Unit Weight (kg/pc) | Packing (pc/bag) |
| A | B1 / B2 | C | D | |||||
| 2" | 3/8" | 1/4" G70 | 14 | 5/16" G43 | 10,000 | 18" | 0.90 | 50 |
| 2" | 3/8" | 5/16" G43 | 11 | 3/8" G43 | 10,000 | 18" | 1.18 | 50 |
| 3" | 7/16" | 5/16" G70 | 10 | 5/16" G70 | 16,200 | 18" | 1.32 | 35 |
| 3" | 7/16" | 5/16" G70 | 10 | 3/8" G43 | 16,200 | 18" | 1.48 | 35 |
| 3" | 7/16" | 3/8" G43 | 5 | 3/8" G43 | 16,200 | 12" | 1.28 | 35 |
| 3" | 7/16" | 3/8" G43 | 9 | 3/8" G43 | 16,200 | 18" | 1.68 | 35 |
| 4" | 7/16" | 3/8" G70 | 9 | 3/8" G70 | 20,000 | 18" | 1.94 | 35 |

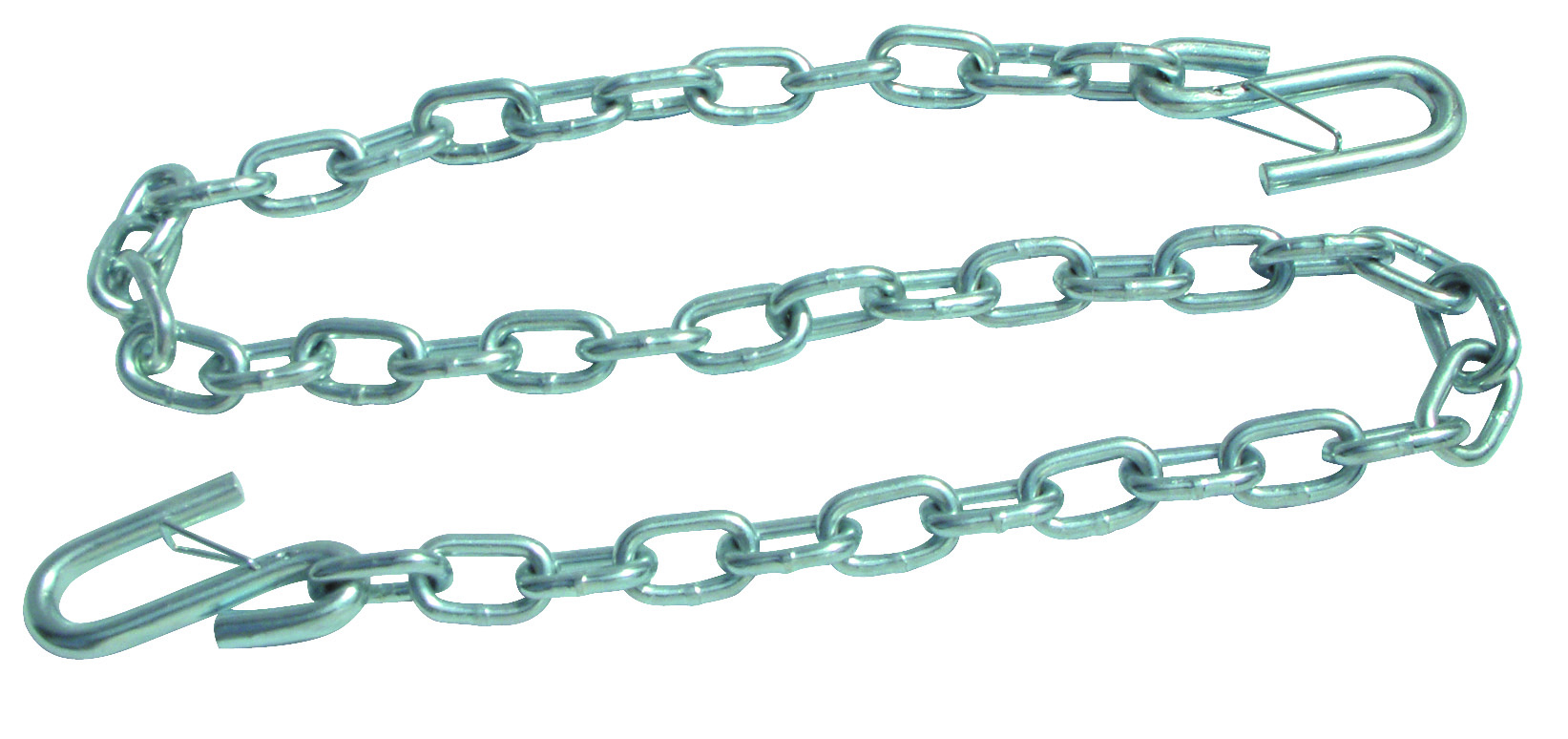

| Chain Size | Chain Diameter | S hook Size | WLL (lbs) | MBS (lbs) |
| 3/16" | 5.5mm | 3/8" | 800 | 3,200 |
| 1/4" | 7.0mm | 7/16" | 1,300 | 5,200 |
| 5/16" | 8.4mm | 17/32" | 1,900 | 7,600 |
