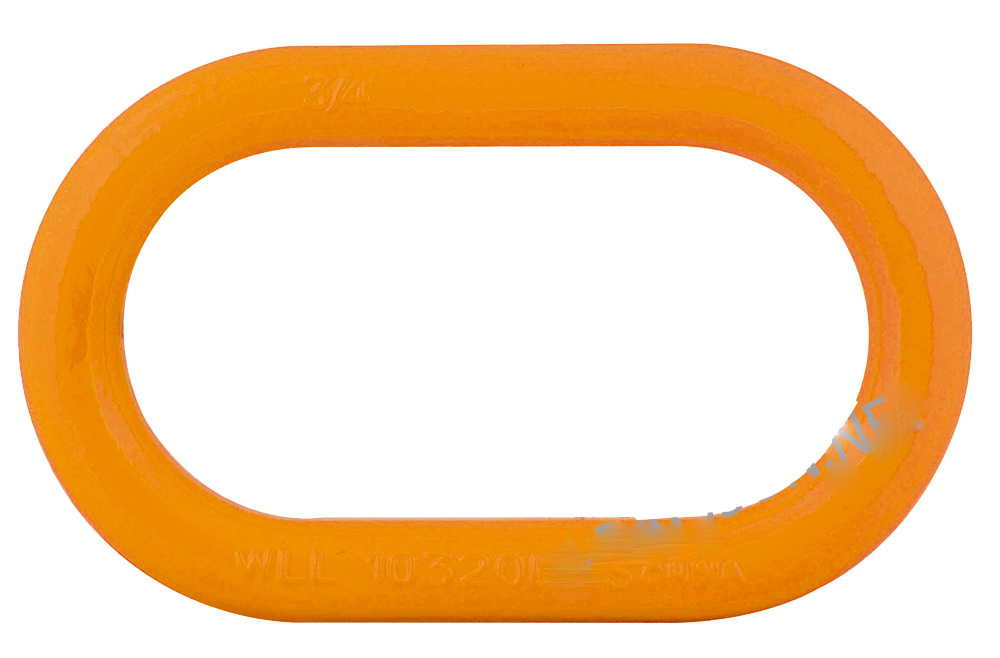

FORGED ALLOY MASTER LINK

ALLOY MASTER LINK
Stock No. Size  (in) W.L.L. (lbs) Inside length (in) Inside Width (in) Weight (lbs)
ML038   3/8 3720 3 1.5 0.56
ML012   1/2 7000 5 2.5 0.89
ML058   5/8 9000 6 3 1.63
ML034   3/4 12300 5.5 2.75 2.25
ML078   7/8 15000 7 3.5 3.53
ML001 1      24360 7 3.5 5
ML114 1  1/4 36200 8.75 4.38 9.75
ML112 1  1/2 54300 10.5 5.25 17.12
ML134 1  3/4 84900 12 6 26.12
ML002 2      102600 14 7 38
*Ultimate load is 5 times working load limit

BACK TO TOP
MASTER LINK ASSEMBLY
MASTER LINK ASSEMBLY
Stock No. SIZE (in) W.L.L. (lbs) Dimensions (mm) Weight (lbs)
A B C D E F G
MLAA058   5/8 6000      15.9 76.2 152.4 12.7 76.2 31.8 6.4 2.6
MLAA034   3/4 9100      19.1 69.9 139.7 14.2 85.1 39.9 7.6 3
MLAA078   7/8 14450      22.2 88.9 177.8 16.9 100.1 59.9 7.6 4.6
MLAA001 1      18400      25.4 88.9 177.8 17.5 100.1 59.9 8.4 6.3
MLAA114 1  1/4 31200      31.8 111.1 222.3 22.4 100.1 70.1 13.5 13.1
MLAA112 1  1/2 47000      38.1 133.4 266.7 28.7 150.1 89.9 16.5 24
MLAA134 1  3/4 73500      44.5 152.4 304.8 31.8 160 100.1 18.5 35.3
MLAA002 2      88900      50.8 177.8 355.6 38.1 180.1 32 - 56.8
*Ultimate load is 5 times working load limit

BACK TO TOP

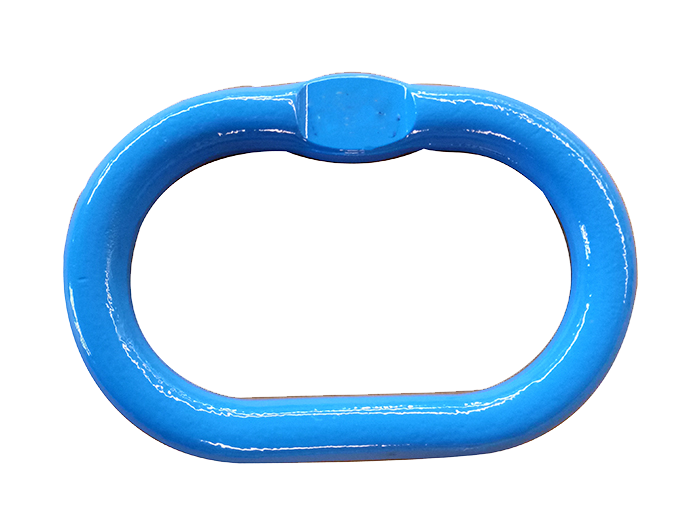

ALLOY MASTER LINK WITH FLAT
FLAT ALLOY MASTER LINK
Stock No. W.L.L. (tons) Dimensions(mm) Weight (lbs)
A B C D E
FAML058 3.12 154 75.6 24.5 43.5 15.9 1.52
FAML034 5.25 154 75.6 33.5 43.5 19.1 2.35
FAML001 8 181.6 90 40 69 25.4 4.71

BACK TO TOP

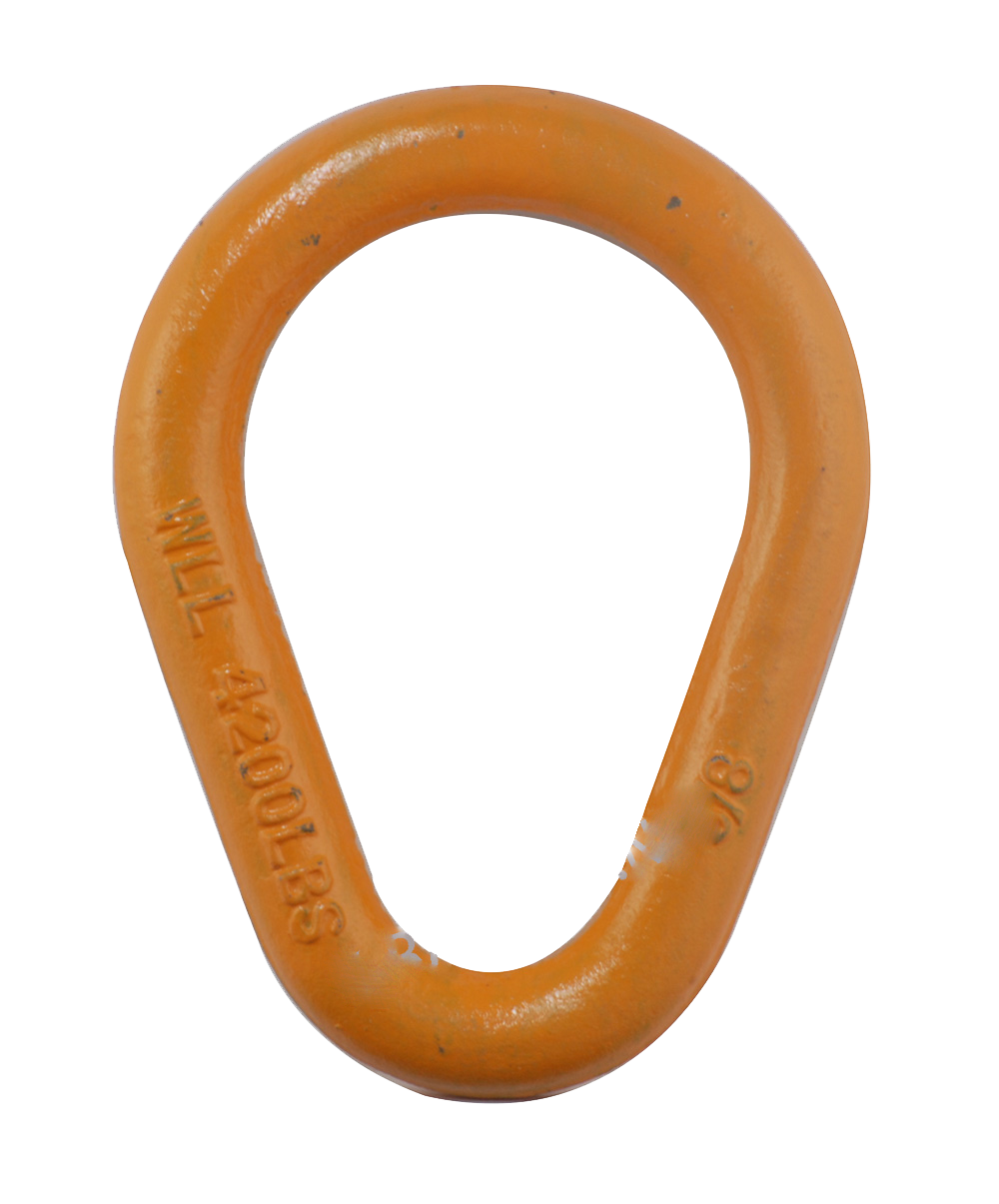

WELDLESS SLING LINK

WELDLESS SLING LINK
Stock No. Size (in) W.L.L.(lbs) Inside Length  (in) Inside Width (in) Weight (lbs)
Carbon Alloy Small End Large End
PL038G43/70   3/8 1600 - 2  1/4   3/4 1  1/2 0.23
PL012G43/71   1/2 2900 7000 3      1      2      0.55
PL058G43/72   5/8 4200 9000 3  3/4 1  1/4 2  1/2 1.1
PL034G43/73   3/4 6000 12300 4  1/2 1  1/2 3      1.95
PL078G43/74   7/8 8300 14000 5  1/4 1  3/4 3  1/2 2.78
PL001G43/75 1      10800 24360 6      2      4      4.3
PL114G43/76 1  1/4 16750 36000 7  3/4 2  1/2 5      8.5
PL138G43/77 1  3/8 20500 43000 8  1/4 2  3/4 5  1/2 11.5
PL112G43/78 1  1/2 - 54300 9      3      6      14.25
PL134G43/79 1  3/4 - 84900 10  1/2 3  1/2 7      22.5
PL002G43/80 2      - 102600 12      4      8      34
*Ultimate load is 5 times working load limit

BACK TO TOP

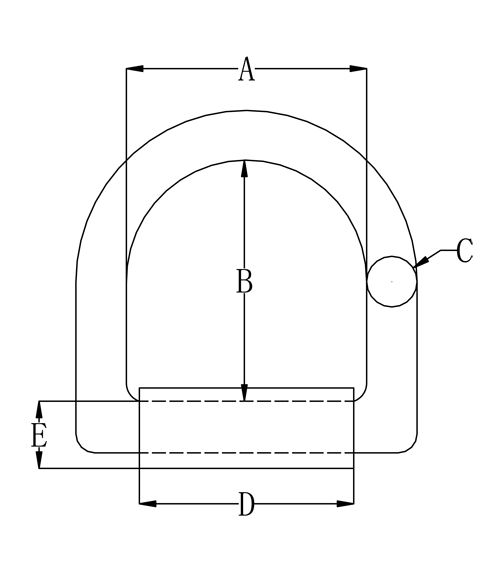

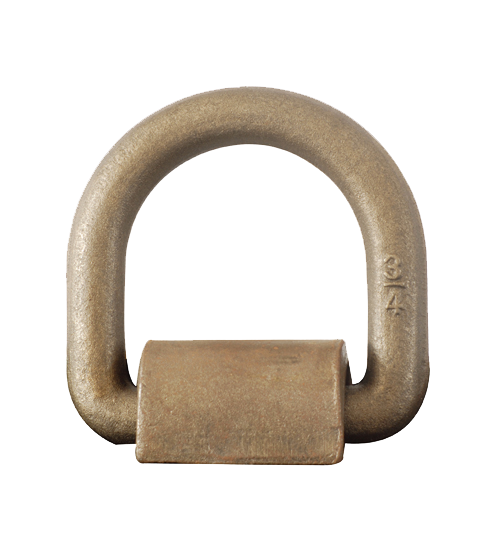

D RING, TYPE A
D RING WITH STRAP, TYPE A
Stock No. M.B.S. (lbs) Dimensions (in) Weight  (lbs)
A B C D E
DRINGA12 12000 2.25 2.5 0.5 1.76 0.61 0.94
DRINGA18 18000 3 3 0.63 2.48 0.92 1.87
DRINGA34 26500 3 3 0.75 2.48 1 2.7
DRINGA1A 47000 3 3 1 2.52 1.21 4.21
DRINGA1B 47000 3 4 1 2.52 1.21 4.74

BACK TO TOP

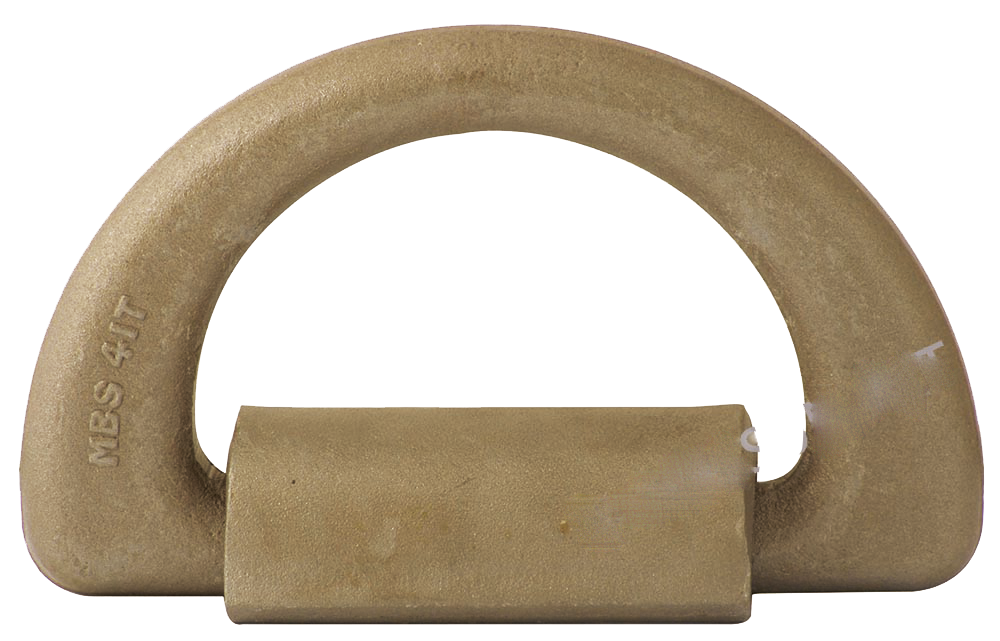

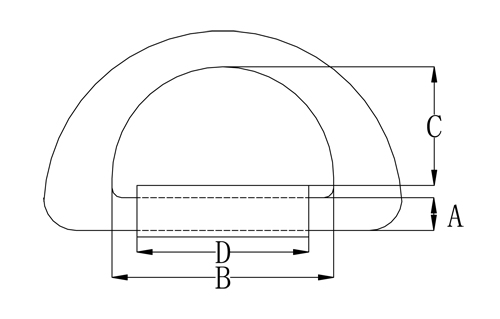

D RING, TYPE B
D RING WITH STRAP, TYPE B
Stock No. M.B.S.  (tons) Dimensions (mm) Weight  (lbs)
A B C D E
DRINGB36 36 136 80 120 21 25.5 5.42
DRINGB41 41 144 88 125 25 30 8.15
DRINGB50 50 151 90 130 27 32 9.71

BACK TO TOP

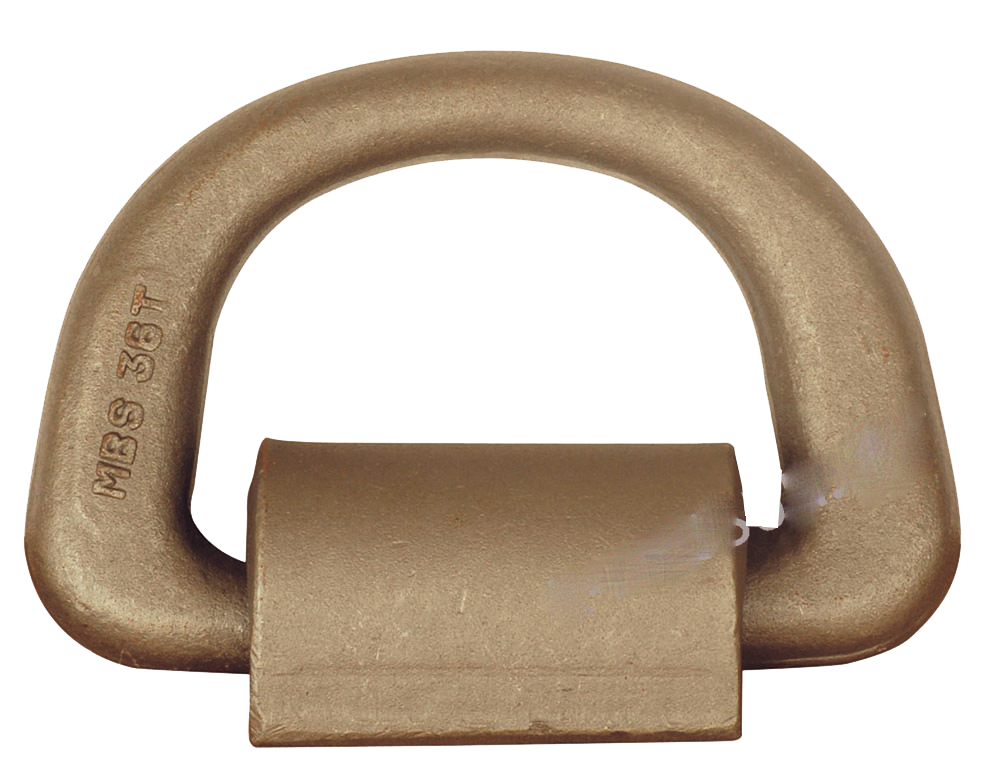

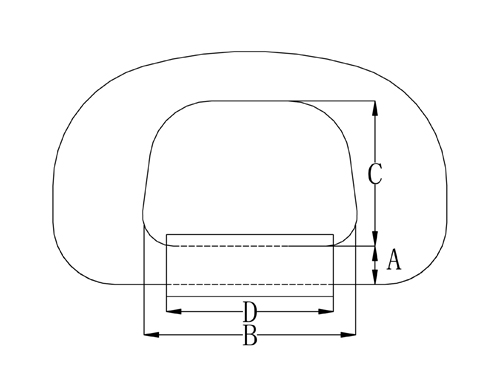

D RING, TYPE C
D RING WITH STRAP, TYPE C
Stock No. M.B.S.  (tons) Dimensions (mm) Weight (lbs)
A B C D
DRINGC07 7 12.5 66.7 51.3 50 1.19
DRINGC41 41 25.4 127 93 101.6 7.71

BACK TO TOP

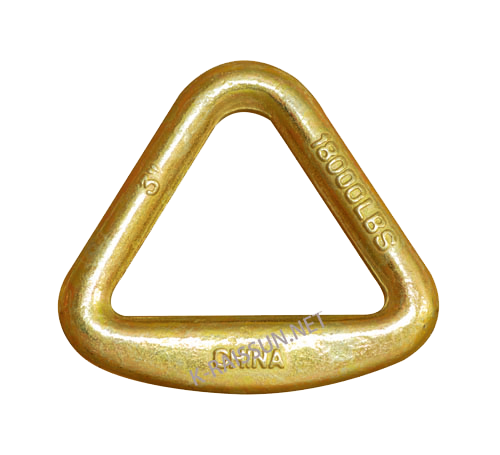

FORGED DELTA LINK
DELTA LINK
Stock No. Size (in) M.B.S. (lbs) Bar Dia. (mm) Outside Length  (mm) Inside Width   (mm) Weight (lbs)
DELTAR2 2 11000 12 80.3 45 0.44
DELTAR3 3 18000 14 109.4 60 0.79
DELTAR4 4 20000 16 142 74 1.37

BACK TO TOP

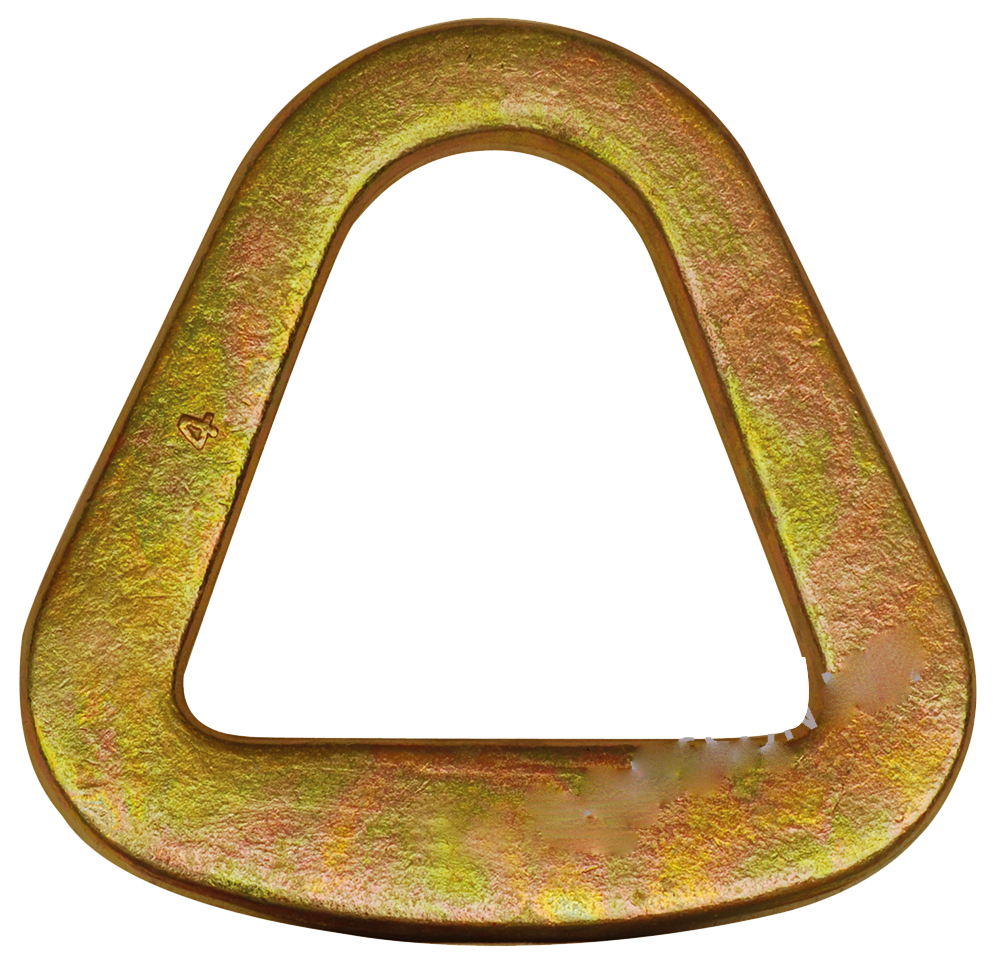

FLAT DELTA LINK
FLAT DELTA LINK
Stock No. Size          (in) M.B.S. (lbs) Dimensions(mm) Weight        (lbs)
A B C D
DELTAR3F 3      14400 81 85.7 17 35 1.63
DELTAR4F 4      19200 108 101.6 22.2 50 3.15

BACK TO TOP

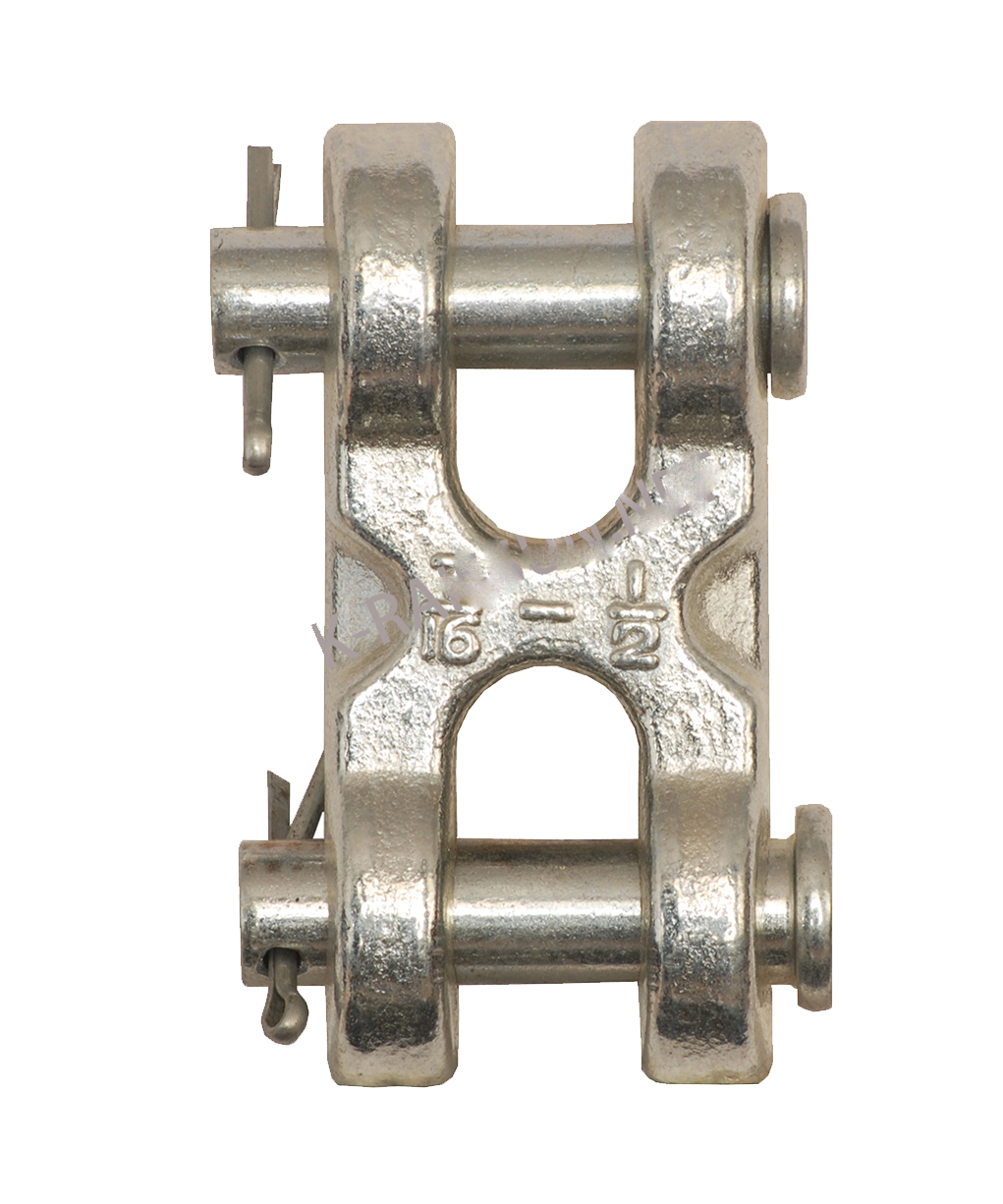

TWIN CLEVIS LINK
TWIN CLEVIS LINK
Stock No. Size (in) W.L.L. (lbs) Dimensions (in) Weight  (lbs)
A B C
TCLG14516 1/4 - 5/16 4700 0.47 0.38 0.43 0.32
TCLG38000   3/8 6600 0.53 0.47 0.48 0.44
TCLG71612 7/16 - 1/2 11250 0.65 0.56 0.63 1
TCLG58000   5/8 16500 0.78 0.69 0.75 1.32
*Ultimate load is 4 times working load limit

BACK TO TOP

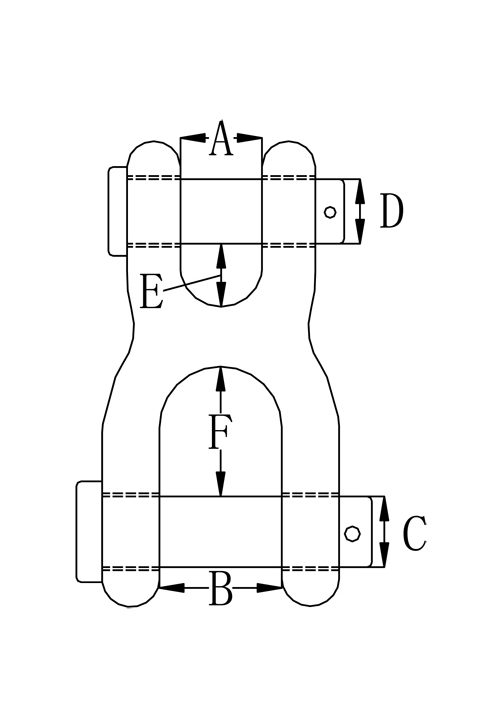

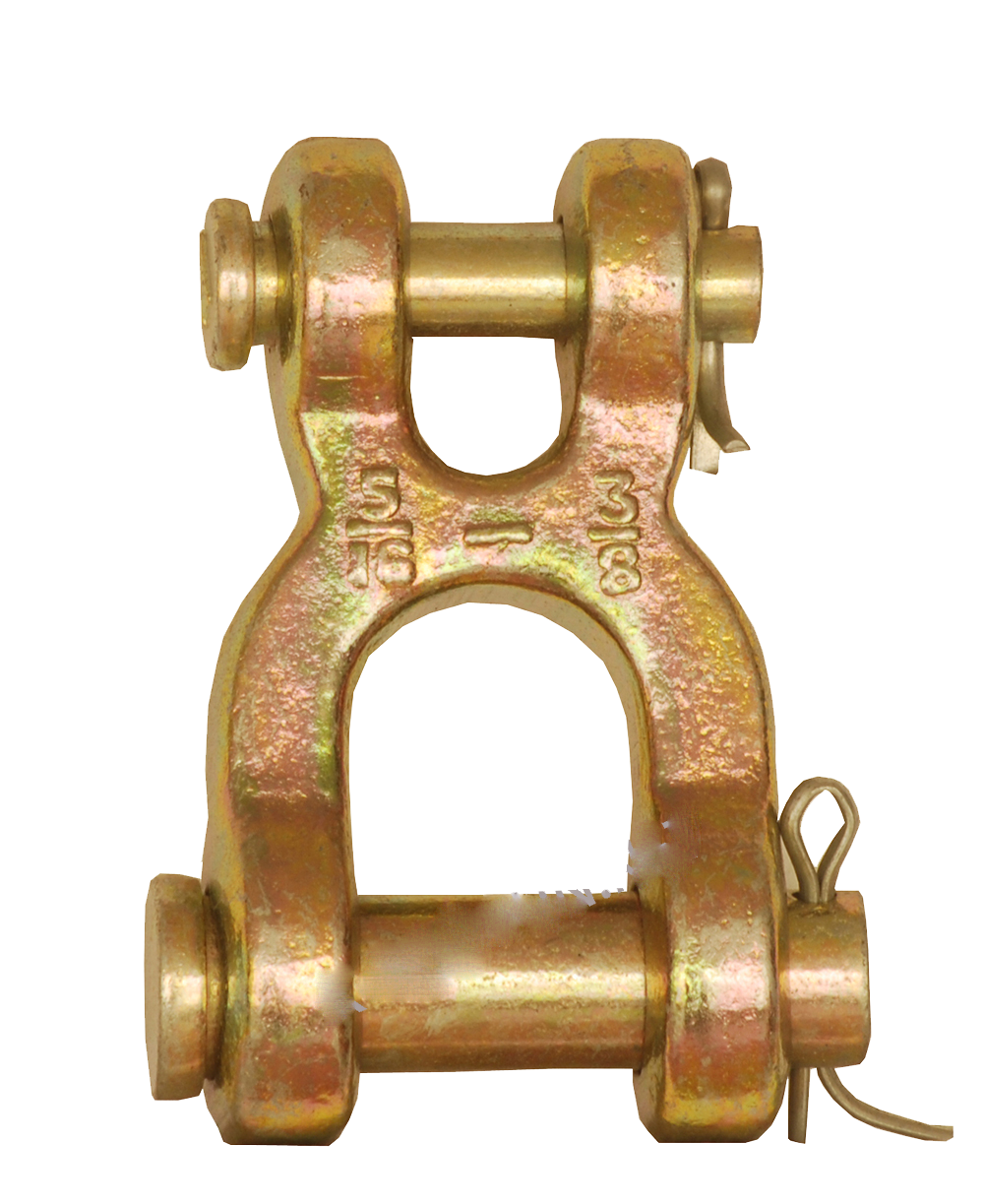

DOUBLE CLEVIS LINK
DOUBLE CLEVIS LINK
Stock No. Size  (in) W.L.L.  (lbs) Dimensions (in) Weight  (lbs)
A B C D E F
DCLG01400   1/4 2600 0.5 0.75 0.5 0.31 0.38 0.75 0.44
DCLG51638 5/16 - 3/8 5400 0.56 1 0.63 0.44 0.47 1 0.81
DCLG71600   7/16 7000 0.69 1.13 0.69 0.56 0.59 1.09 1.28
DCLG01200   1/2 9200 0.81 1.25 0.75 0.63 0.66 1.25 1.68
DCLG05800   5/8 17500 0.78 1.63 1 0.75 0.83 1.51 2.91
*Ultimate load is 4 times working load limit

BACK TO TOP

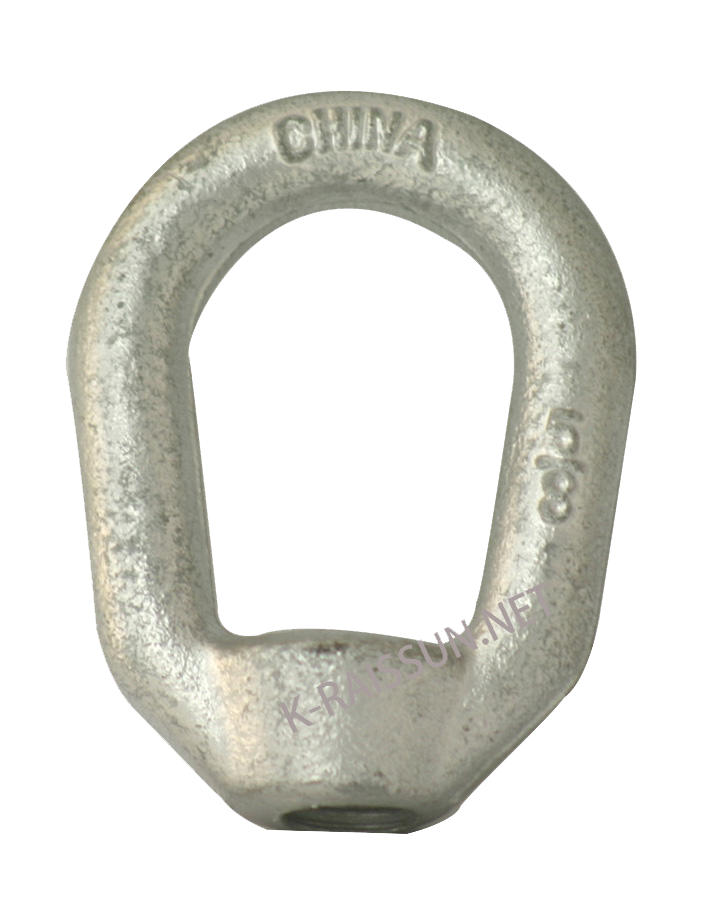

FORGED EYE NUT
EYE NUT
Stock No. Std Tap W.L.L Stock Overall Weight
Size (lbs) Size Length (lbs)
ENUTHG014 1/4" 520 1/4" 1 11/16 0.09
ENUTHG516 5/16" 850 1/4" 1 11/16 0.09
ENUTHG038 3/8" 1250 5/16" 2  1/16 0.18
ENUTHG716 7/16" 1700 3/8" 2 1/2 0.29
ENUTHG012 1/2" 2250 3/8" 2 1/2 0.29
ENUTHG058 5/8" 3600 1/2" 3  3/16 0.58
ENUTHG034 3/4" 5200 5/8" 3 7/8 1
ENUTHG078 7/8" 7200 3/4" 4  5/16 1.7
ENUTHG001 1" 10000 7/8" 5    2.75
ENUTHG118 1 1/8" 12300 7/8" 5    2.75
ENUTHG114 1 1/4" 15500 1" 5 3/4 3.85
ENUTHG138 1 3/8" 18500 1 1/8" 6 1/4 5
ENUTHG112 1 1/2" 22500 1 1/4" 6 3/4 6.7
ENUTHG002 2" 40000 1 1/2" 10    18.7
Ultimate load is 5 times working load limit

BACK TO TOP

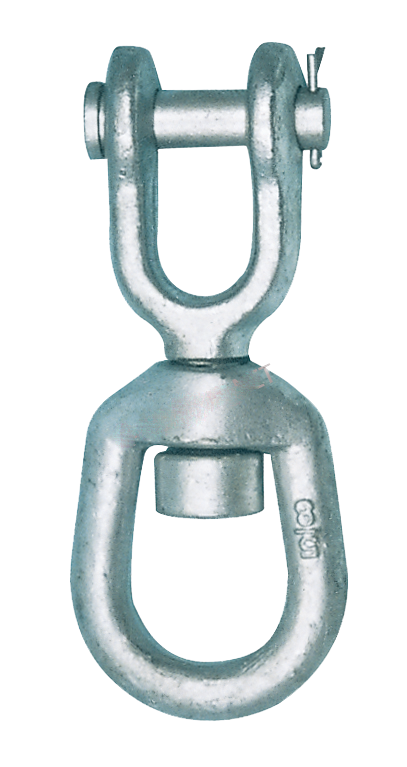

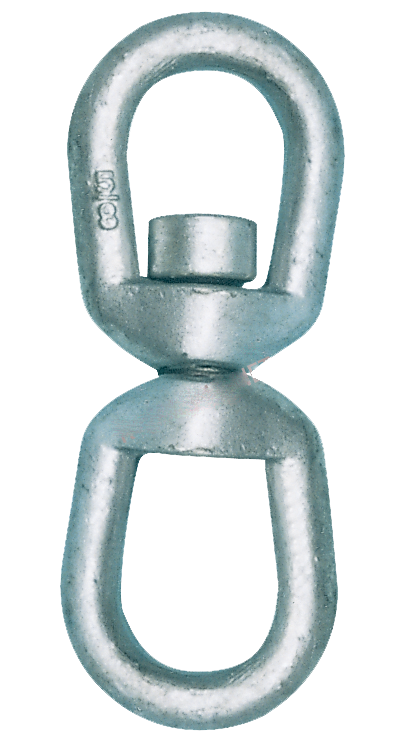

FORGED SWIVELS
HOT DIP GALVANIZED DROP FORGED SWIVELS
Stock No.  Size (in) W.L.L. (lbs) Weight (lbs)
Eye/Eye Jaw/Eye Ring/Eye
SWHG014EE/EJ/RE   1/4 850 0.21 0.21 0.13
SWHG516EE/EJ/RE   5/16 1250 0.39 0.34 0.26
SWHG038EE/EJ/RE   3/8 2250 0.75 0.66 0.55
SWHG012EE/EJ/RE   1/2 3600 1.43 1.34 1.12
SWHG058EE/EJ/RE   5/8 5200 2.5 2.48 2.09
SWHG034EE/EJ/RE   3/4 7200 4.13 3.88 3.19
SWHG078EE/EJ/RE   7/8 10000 6.25 5.87 5.06
SWHG001EE/EJ/RE 1      12500 8.95 9.84 7.94
SWHG118EE/EJ/RE 1  1/8 16500 11 - 11.99
SWHG114EE/EJ/RE 1  1/4 18000 16.37 15.75 15.4
SWHG112EE/EJ/RE 1  1/2 45200 49.06 54.75 33.09
*Ultimate load is 5 times working load limit

BACK TO TOP

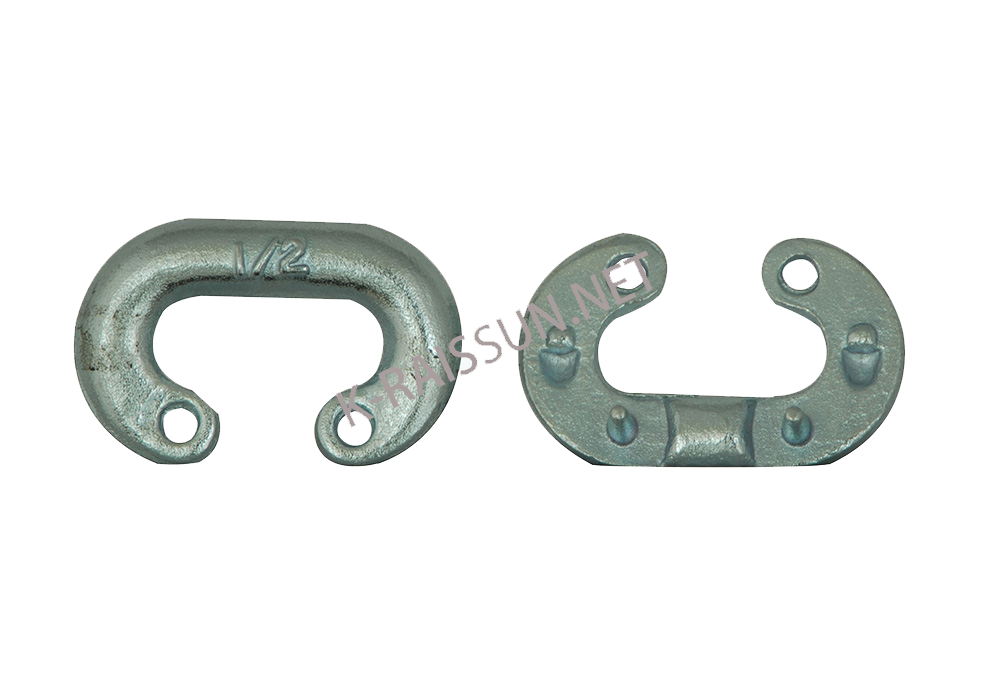

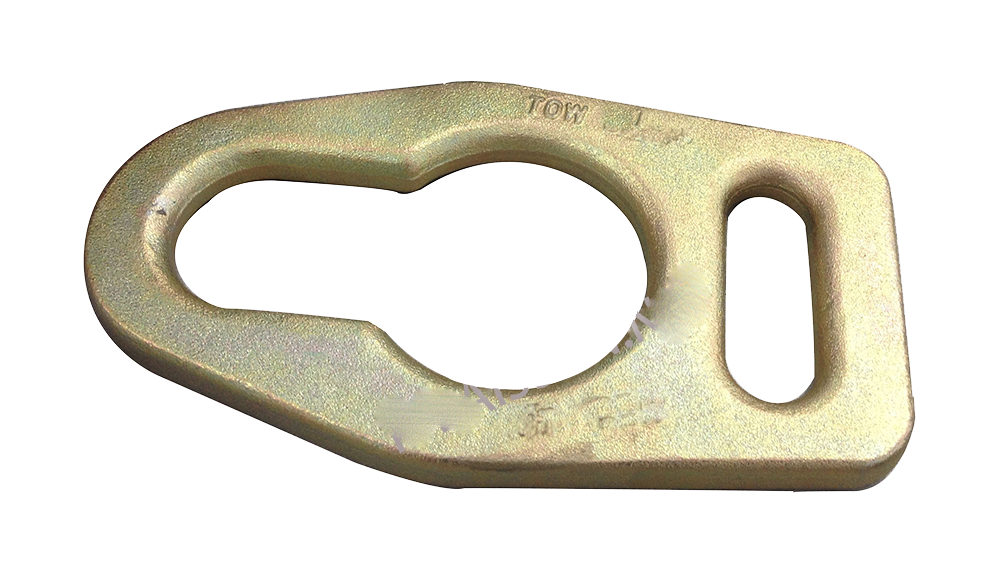

MORE LINKS
