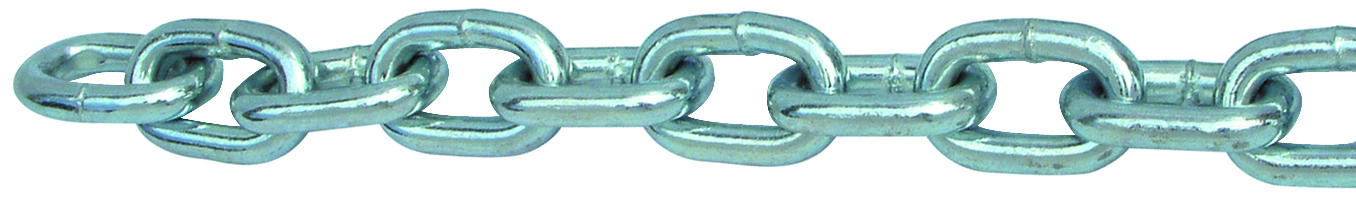

| DIN764 Link Chains |
| Diameter |
Inside |
Inside |
Outside |
Test |
Breaking |
Approx |
| Length |
Width |
Width |
Load |
Load |
Weight |
| mm |
Tolerance |
mm |
(min.) |
(max.) |
kg |
N |
kg/100m |
| 4 |
+/- 0.2 |
16 |
5 |
14.0 |
400 |
7,000 |
31.3 |
| 5 |
+/- 0.2 |
18 |
7 |
18.2 |
680 |
11,800 |
51.4 |
| 6 |
+/- 0.2 |
21 |
8 |
21.5 |
850 |
16,500 |
74 |
| 8 |
+/- 0.2 |
28 |
11 |
29 |
1,680 |
32,000 |
132 |
| 10 |
+/- 0.3 |
35 |
14 |
36 |
2,630 |
50,000 |
200 |
| 12 |
+/- 0.3 |
42 |
16 |
41 |
3,680 |
70,000 |
298 |
| 13 |
+/- 0.4 |
45 |
18 |
47 |
4,200 |
80,000 |
350 |
| 16 |
+/- 0.5 |
56 |
22 |
58 |
6,700 |
125,000 |
520 |
| 18 |
+/- 0.8 |
63 |
24 |
65 |
8,400 |
160,000 |
650 |
| 20 |
+/- 1.0 |
70 |
27 |
72 |
10,000 |
200,000 |
820 |
| 23 |
+/- 1.2 |
80 |
31 |
83 |
13,000 |
250,000 |
1100 |
| 26 |
+/- 1.3 |
91 |
35 |
94 |
16,000 |
320,000 |
1400 |
